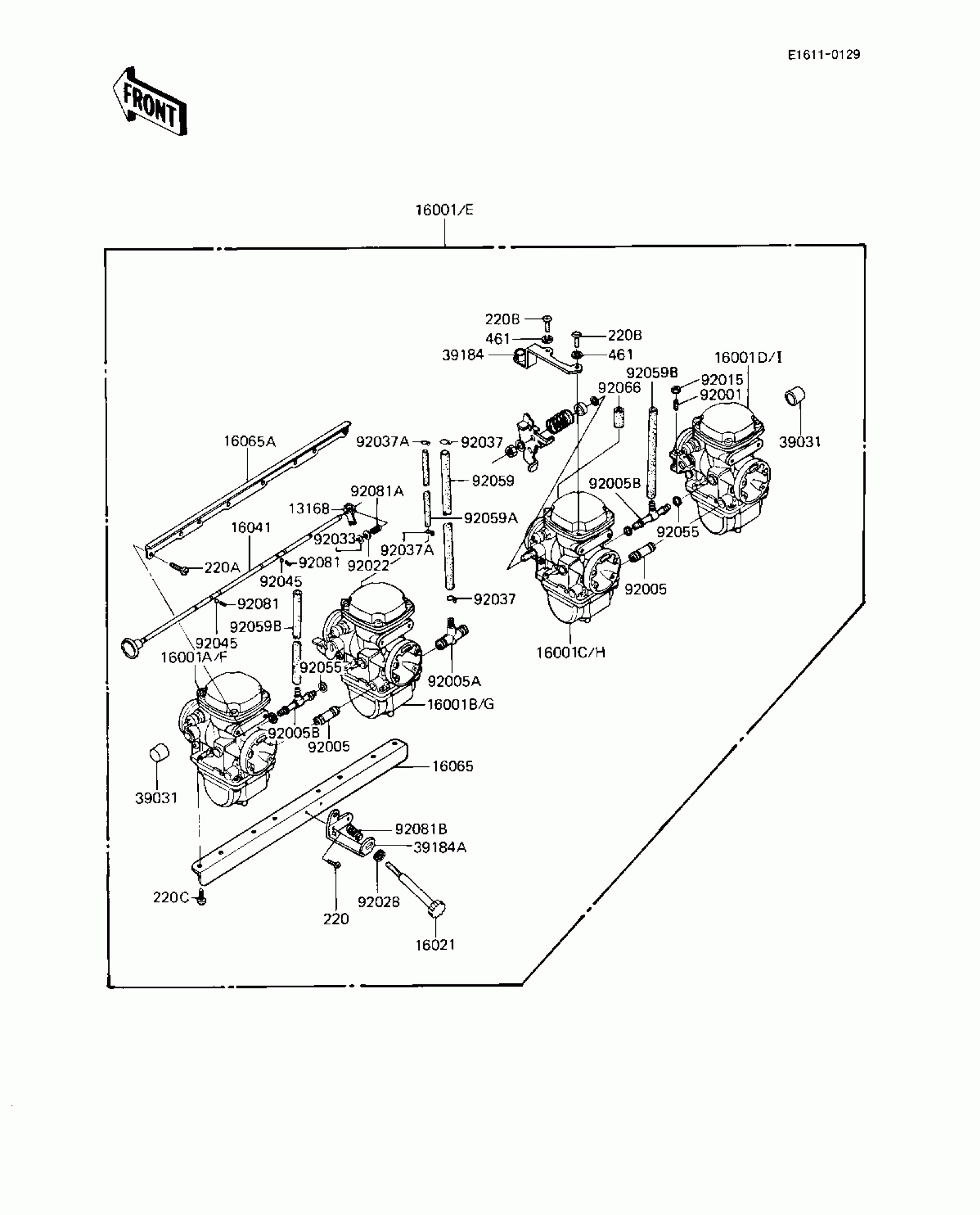

Kawasaki Eddie Lawson Replica CARBURETOR ASSY (KZ1000-R2) Diagram

#

Description
Price

13168

LEVER,CHOKE

13168-1091

$9.07

16001

CARBURETOR

16001-1890

$1,304.83

16001A

CARBURETOR,LH,OUTSIDE

16001-1891

$432.03

16001B

CARBURETOR,LH,INSIDE

16001-1892

$432.03

16001C

CARBURETOR,RH,INSIDE

16001-1893

$347.14

16001D

CARBURETOR,RH,OUTSIDE

16001-1894

$432.03

16001E

CARBURETOR (Canada)

16001-1895

Unavailable

16001F

CARBURETOR,LH,OUTSIDE (Canada)

16001-1896

Unavailable

16001G

CARBURETOR,LH,INSIDE (Canada)

16001-1897

Unavailable

16001H

CARBURETOR,RH,INSIDE (Canada)

16001-1898

Unavailable

16001I

CARBURETOR,RH,OUTSIDE (Canada)

16001-1899

Unavailable

16021

SCREW-THROTTLE STOP

16021-1035

$29.84

16041

SHAFT-CARBURETOR,CHOKE

16041-1024

$50.69

16065

HOLDER-CARBURETOR,LWR

16065-1043

$86.22

16065A

HOLDER-CARBURETOR,UPP

16065-1044

$58.31

39031

CAP-END,CARBURETOR

39031-1007

$11.04

39184

BRACKET-ASSY,THROTTLE

39184-1006

Unavailable

39184A

BRACKET-ASSY,IDLING ADJUSTER

39184-1007

$37.19

92001

BOLT,ADJUSTING

92001-1447

$12.04

92005

FITTING,FUEL,I-TYPE

92005-1035

$50.23

92005A

FITTING,FUEL,T-TYPE

92005-1036

$67.12

92005B

FITTING,AIR VENT

92005-1045

$38.98

92015

NUT,THROTTLE VALVE ADJUSTING

92015-1119

$5.59

92022

WASHER,SPRING

92022-1255

$5.86

92028

BUSHING

92028-1071

Unavailable

92033

RING-SNAP,E-TYPE

92033-1066

$5.80

92037

CLAMP,TUBE

92037-1184

$1.45

92037A

CLAMP,BREATHER TUBE

92037-174

$2.00

92045

BALL,STEEL,1/8"

600A0400

$1.40

92055

"0" RING

92055-510

Unavailable

92059

TUBE,7.5X12.5X250

92059-1187

$44.56

92059A

TUBE,5X9X150

92059-1188

$19.00

92059B

TUBE,6.5X9.5X400

92059-1222

$22.59

92066

PLUG,12X25

92068-006

$4.26

92066

PLUG,12X25

92068-006

$4.26

92081

SPRING,SHAFT STOP

92081-1260

$5.80

92081A

SPRING,CHOKE SHAFT

92081-1364

$5.80

92081B

SPRING,THROTTLE STOP SCREW

92081-1377

$4.96

220

SCREW PAN HEAD 5X8

220B0508

$0.46

220A

SCREW-PAN-CROS,5X10

220C0510

$3.57

220B

SCREW-PAN-CROS,5X18,B

220C0518A

$3.25

220C

SCREW-PAN-CROS, 6X14

220C0614

$1.92

461

WASHER-SPRING,5MM,BLACK

461K0500

$1.49
