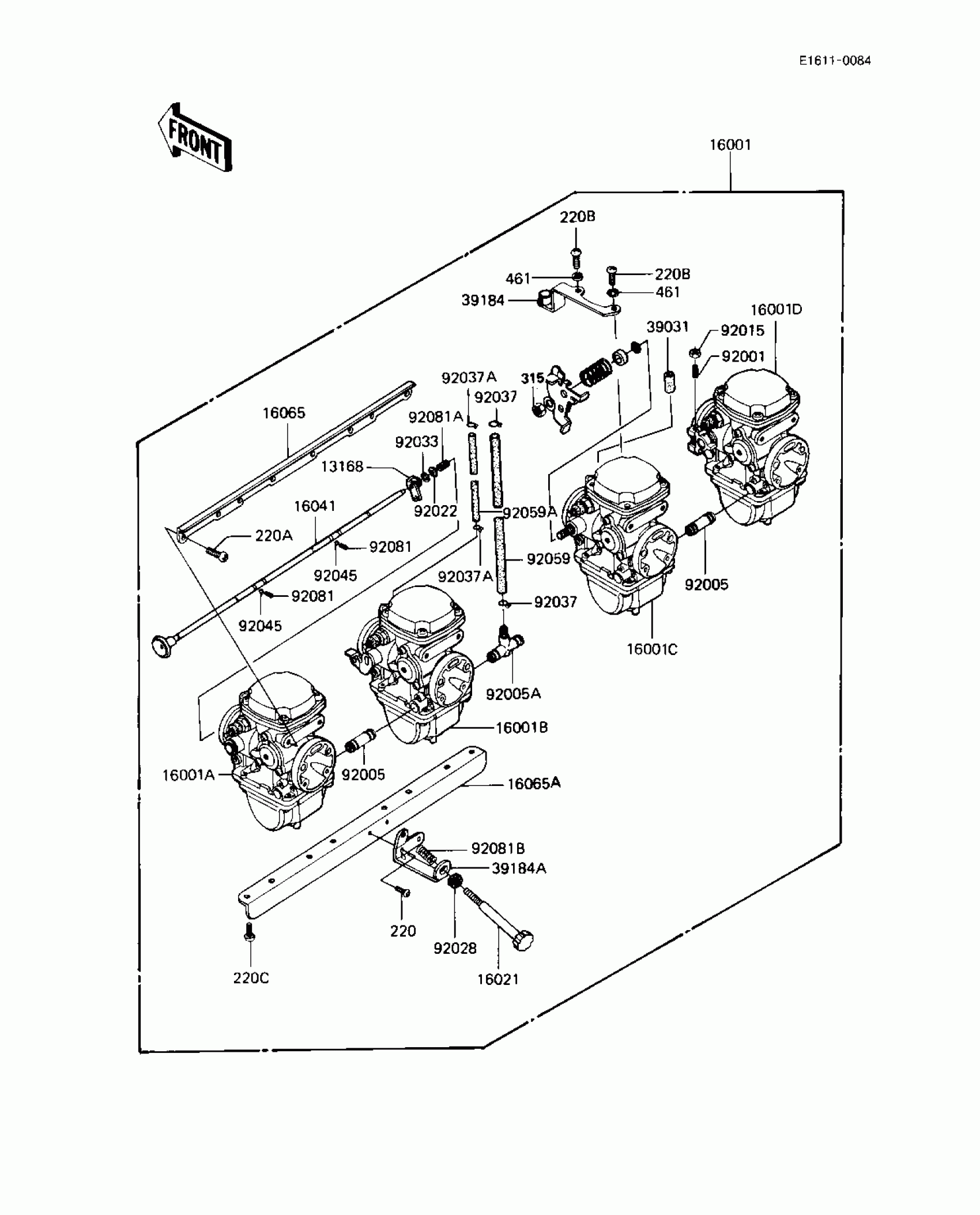

Kawasaki Eddie Lawson Replica CARBURETOR ASSY (KZ1000-R1) Diagram

#

Description
Price

13168

LEVER,CHOKE

13168-1091

$9.07

16001

CARBURETOR

16001-1587

$1,076.74

16001A

CARBURETOR,LH,OUTSIDE

16001-1588

$345.84

16001B

CARBURETOR,LH,INSIDE

16001-1589

$345.84

16001C

CARBURETOR,RH,INSIDE

16001-1590

$432.03

16001D

CARBURETOR,RH,OUTSIDE

16001-1591

$432.03

16021

SCREW-THROTTLE STOP

16021-1035

$29.84

16041

SHAFT-CARBURETOR,CHOKE

16041-1024

$50.69

16065

HOLDER-CARBURETOR,UPP

16065-1044

$58.31

16065A

HOLDER-CARBURETOR,LWR

16065-1065

$60.38

39031

CAP-END

39031-1009

Unavailable

39184

BRACKET-ASSY,THROTTLE

39184-1006

Unavailable

39184A

BRACKET-ASSY,IDLING ADJUSTER

39184-1007

$37.19

92001

BOLT,ADJUSTING

92001-1447

$12.04

92005

FITTING,FUEL,I-TYPE

92005-1035

$50.23

92005A

FITTING,FUEL,T-TYPE

92005-1036

$67.12

92015

NUT,THROTTLE VALVE ADJUSTING

92015-1119

$5.59

92022

WASHER,SPRING

92022-1255

$5.86

92028

BUSHING

92028-1071

Unavailable

92033

RING-SNAP,E-TYPE

92033-1066

$5.80

92037

CLAMP,TUBE

92037-1184

$1.45

92037A

CLAMP,BREATHER TUBE

92037-174

$2.00

92045

BALL,STEEL,1/8"

600A0400

$1.40

92059

TUBE,7.5X12.5X250

92059-1187

$44.56

92059A

TUBE,5X9X150

92059-1188

$19.00

92081

SPRING,SHAFT STOP

92081-1260

$5.80

92081A

SPRING,CHOKE SHAFT

92081-1364

$5.80

92081B

SPRING,THROTTLE STOP SCREW

92081-1377

$4.96

220

SCREW PAN HEAD 5X8

220B0508

$0.46

220A

SCREW-PAN-CROS,5X10

220C0510

$3.57

220B

SCREW-PAN-CROS,5X18,B

220C0518A

$3.25

220C

SCREW-PAN-CROS, 6X14

220C0614

$1.92

315

NUT,8 M/M

315G0800

$3.22

461

WASHER-SPRING,5MM,BLACK

461K0500

$1.49
