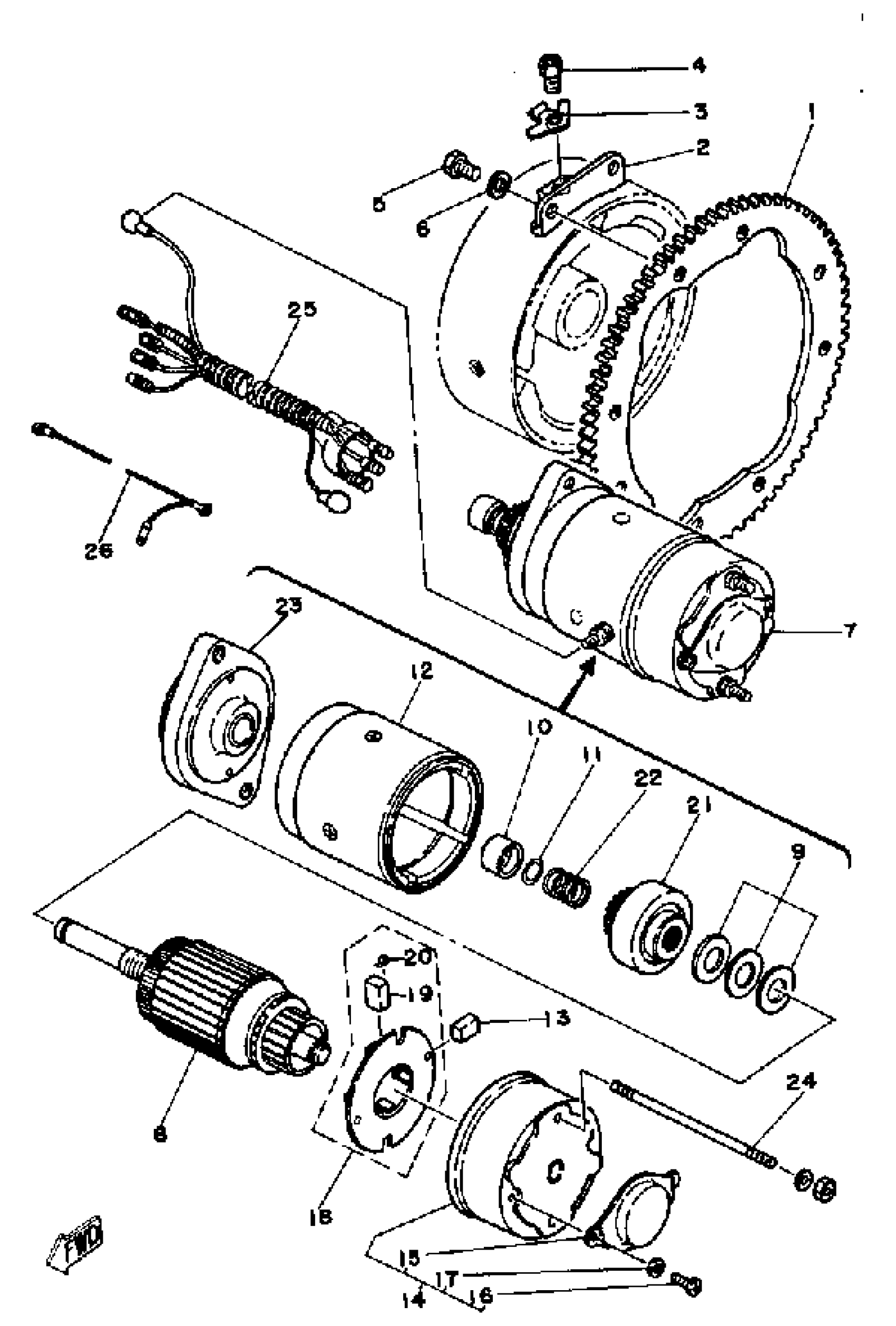

Yamaha EC540C 1979 STARTING MOTOR EC540C Diagram

#

Description

Price

1

GEAR, RING

8H8-81891-00-00

Unavailable

2

STAY, RING GEAR

8H8-81895-00-00

Unavailable

3

WASHER, LOCK

90215-08148-00

Unavailable

4

BOLT, HEX SKT HEADSOCKET HEAD

90110-08028-00

Unavailable

5

BOLT(3JP)

97017-06010-00

$3.76

6

WASHER, SPRING

92995-06100-00

Unavailable

7

STARTING MOTOR ASY

8J4-81800-09-00

Unavailable

8

. ARMATURE ASSEMBLY

8J4-81850-10-00

Unavailable

9

. WASHER KIT

676-81809-10-00

Unavailable

10

STOPPER, PINION

(8J9-81859-10-00)

Unavailable

11

. RING

8J4-81834-10-00

Unavailable

12

STATOR ASSEMBLY

(8J4-81810-11-00)

Unavailable

13

. BRUSH 1

663-81811-10-00

Unavailable

14

REAR BRACKET ASSEMBLY

(8G3-81820-10-00)

Unavailable

15

.. COVER

8J4-81842-10-00

Unavailable

16

SCREW, PAN HEAD

98511-04012-00

Unavailable

17

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

18

BRUSH HOLDER ASSEMBLY

(8G3-81840-10-00)

Unavailable

19

.. BRUSH 2

663-81812-10-00

Unavailable

20

SPRING, BRUSH

(8G3-81813-10-00)

Unavailable

21

CLUTCH, OVER RUN

(8J4-81832-10-00)

Unavailable

22

SPRING, LEVER

(8J4-81836-10-00)

Unavailable

23

. FRONT BRACKET ASSEMBLY

8J4-81830-10-00

Unavailable

24

BOLT

(8J4-81826-10-00)

Unavailable

25

WIRE, LEAD

(8H8-82117-00-00)

Unavailable

26

WIRE, MINUS LEAD

8H8-82116-00-00

Unavailable
