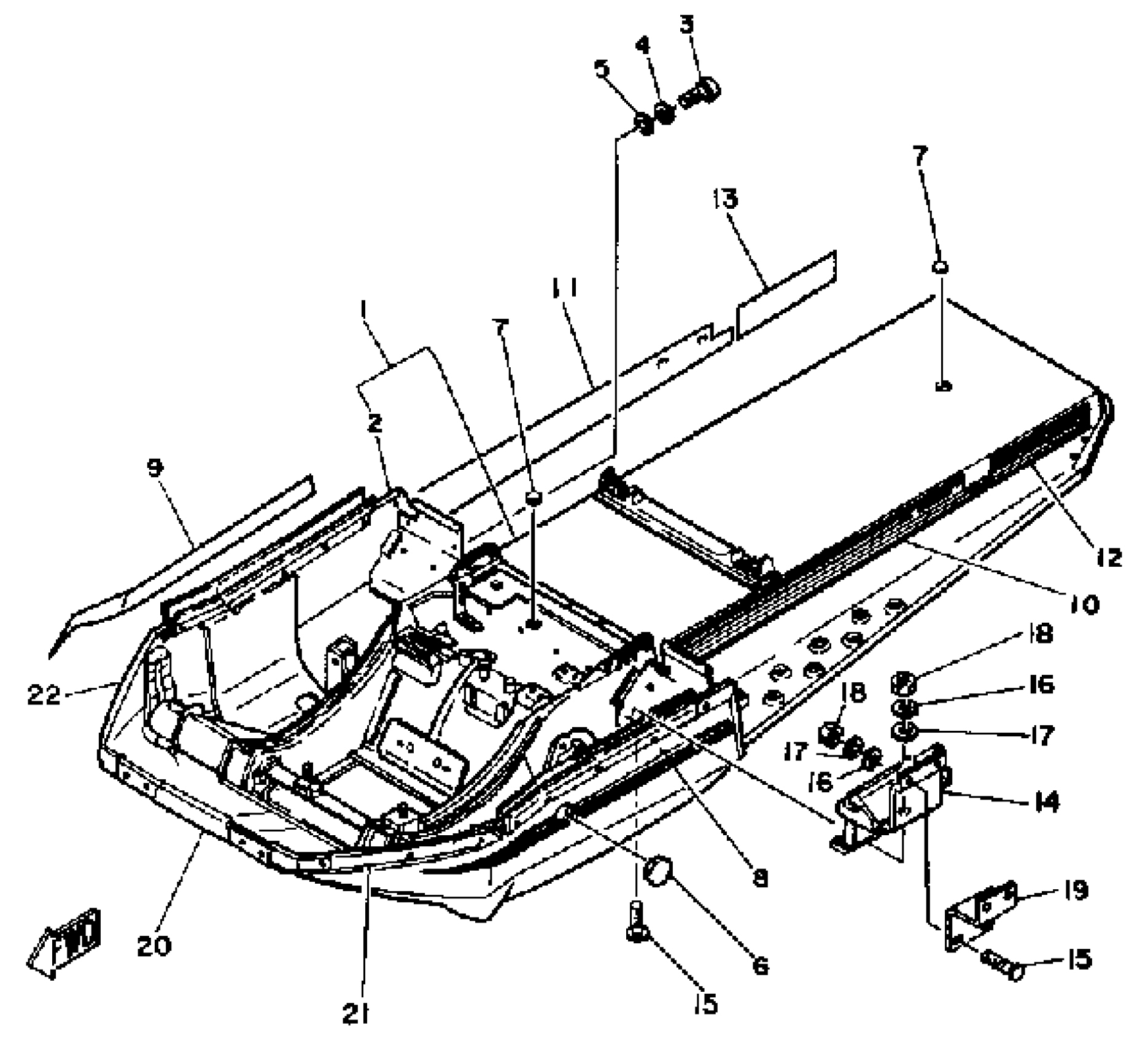

Yamaha EC540C 1979 FRAME EC540D Diagram

#

Description

Price

1

FRAME

(8H8-21910-00-00)

Unavailable

2

PANEL, SUB FRAME 1

(8H8-21912-00-00)

Unavailable

3

BOLT(8CP)

97017-06014-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

PLUG (8H8)

90338-44093-00

$15.99

7

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

Unavailable

8

EMBLEM 1

(8K1-77351-01-00)

Unavailable

9

EMBLEM 2

(8K1-77352-01-00)

Unavailable

10

EMBLEM 3

8K1-77353-00-00

Unavailable

11

EMBLEM 4

8K1-77354-00-00

Unavailable

12

EMBLEM 5

8K1-77355-00-00

Unavailable

13

EMBLEM 6

8K1-77356-00-00

Unavailable

14

BRACKET, BATTERY

(8H8-2199G-01-00)

Unavailable

15

SCREW(3JM)

90149-06306-00

$8.49

16

WASHER, SPRING

92995-06100-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

RNFCMNT, FRAME SIDE

(8H8-21929-00-00)

Unavailable

20

RNFCMNT, FRAME 1

8H8-21986-00-00

Unavailable

21

RNFCMNT, FRAME 2

(8H8-21987-00-00)

Unavailable

22

RNFCMNT, FRAME 3

(8H8-2198E-00-00)

Unavailable
