AIR SHROUD - FAN EC540C - D

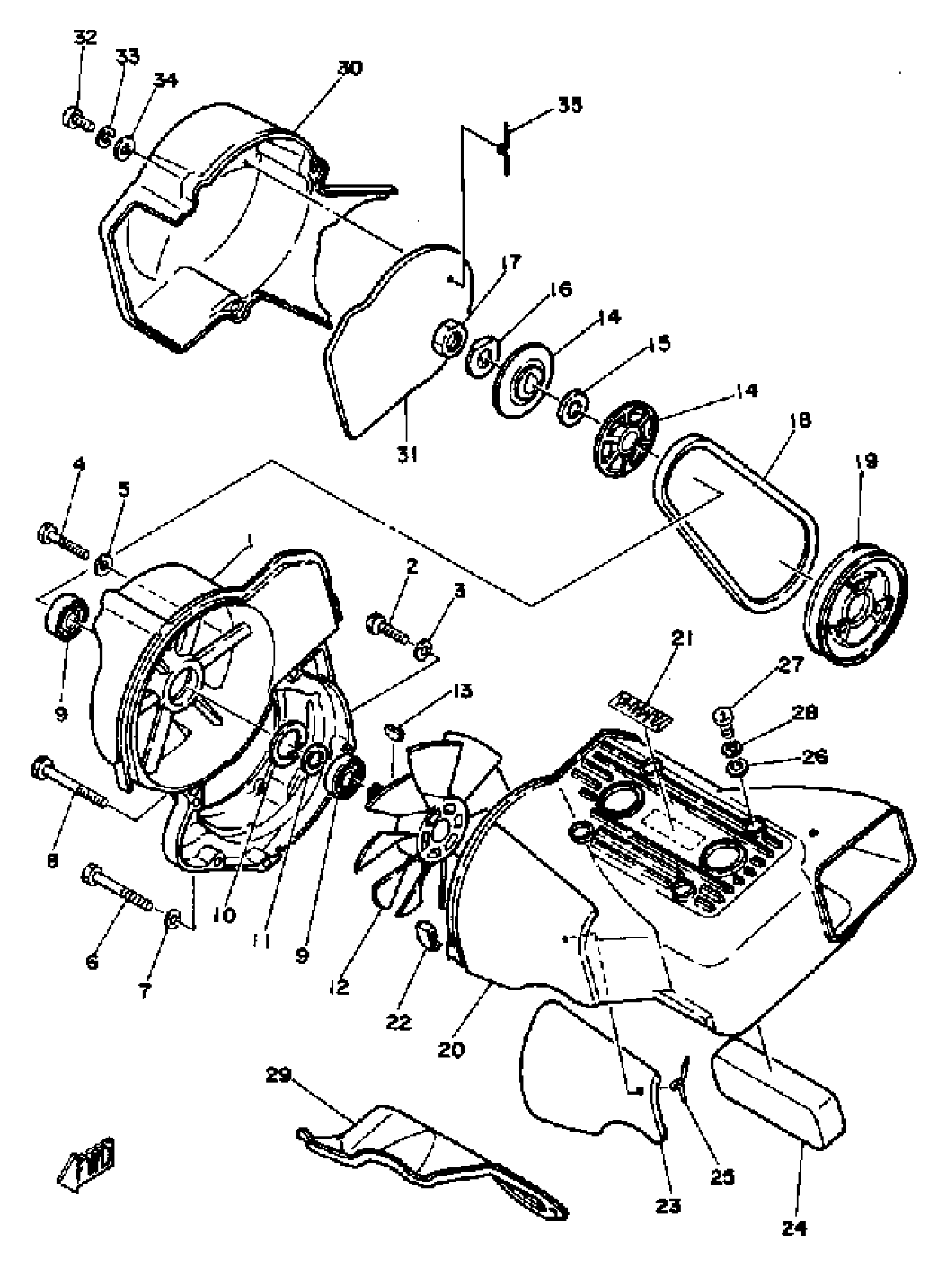

Yamaha EC540C 1979 AIR SHROUD - FAN EC540C - D Diagram
#
1
CASE, FAN
88T-12621-01-00
Unavailable
2
BOLT
97013-08035-00
$5.60
3
.. WASHER, PLATE
92990-08600-00
Unavailable
4
BOLT, HEXAGON
97013-08050-00
Unavailable
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
BOLT (6K8)
97013-08075-00
$7.49
7
.. WASHER, PLATE
92990-08600-00
Unavailable
8
BOLT,HEXAGON
97027-08080-00
Unavailable
9
BEARING
93306-20348-00
$40.99
10
CIR-CLIP (70R)
93420-40064-00
Unavailable
11
WASHER, PLATE (8H8)
90201-17713-00
$7.49
12
FAN
8H8-12611-01-00
$89.99
12
NUT
90170-16425-00
$9.49
12
WASHER, PLATE (8H8)
90201-17713-00
$7.49
12
WASHER(JN5)
92907-16100-00
$14.99
12
FAN
99999-01134-00
Unavailable
13
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
14
PULLEY 2
8H8-12619-01-00
Unavailable
15
WASHER, CLAW (8H8)
90214-17017-00
Unavailable
15
WASHER, CLAW (1.0T)
90214-17018-00
Unavailable
16
WASHER, LOCK
90215-16149-00
Unavailable
17
NUT, HEXAGON
90170-16239-00
Unavailable
18
BELT
8H8-12612-00-00
Unavailable
19
PULLEY 1
8H8-12618-01-00
Unavailable
20
AIR SHROUD CYL. 1
8H8-12651-02-00
Unavailable
21
EMBLEM
8H8-12629-00-00
Unavailable
22
DAMPER, AIR SHROUD CYLINDER
8H8-12658-00-00
Unavailable
23
DAMPER, SHROUD 2
8H8-12659-00-00
Unavailable
24
DAMPER, SHROUD 4
8H8-12669-00-00
Unavailable
25
PIN, COTTER
91401-16030-00
Unavailable
26
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
27
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
28
WASHER, SPRING
92907-06100-00
Unavailable
29
AIR SHROUD, CYLINDER 2
8H8-12652-00-00
Unavailable
30
DUCT
8H8-12661-01-00
Unavailable
31
DAMPER, SHROUD 5
(8H8-12678-00-00)
Unavailable
32
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
33
WASHER, SPRING
92907-06100-00
Unavailable
34
WASHER, PLATE (4L0)
90201-062A8-00
Unavailable
35
PIN, COTTER
91401-16030-00
Unavailable
