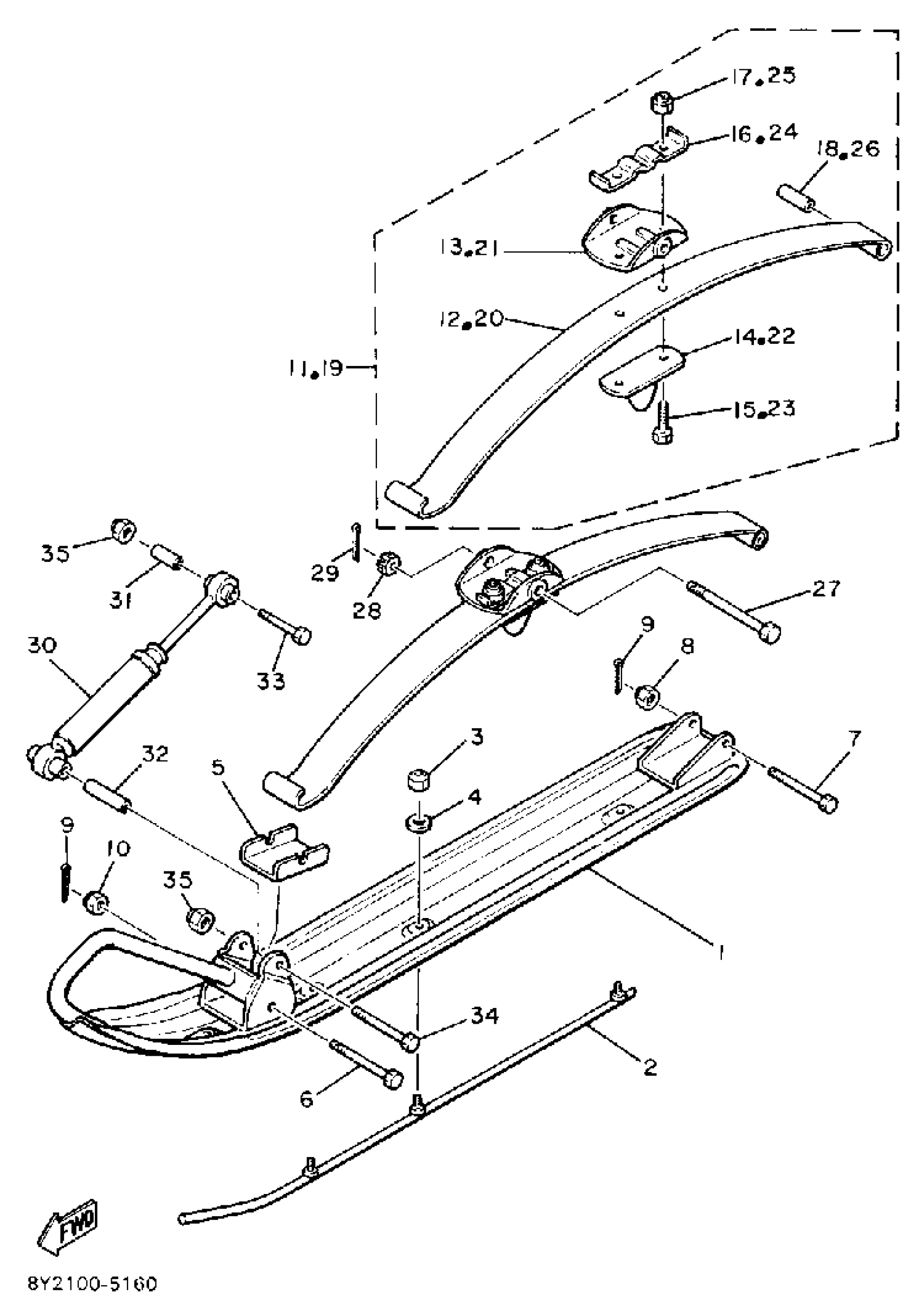

Yamaha EC340M (EXCEL III) 1988 SKI Diagram
#
1
SKI 1
81L-23710-00-00
Unavailable
2
SKI RUNNER, 1 (8Y3-23731-00)
8Y3-23731-00-XX
Unavailable
3
NUT, U
95617-08100-00
$9.49
4
WASHER, PLAIN
92990-08200-00
Unavailable
5
PLATE, WEAR 1
8K4-23735-00-00
Unavailable
6
BOLT PIN HOLE HEXAGON(8E6)
90102-08028-00
$10.49
7
BOLT, PIN HOLE (8A7)
90102-08027-00
$8.49
8
NUT, NYLON
95717-08300-00
$2.70
9
PIN, COTTER
91490-20025-00
$1.99
10
NUT, U
95617-08100-00
$9.49
11
SPRING ASSEMBLY 1
8Y3-23760-00-00
Unavailable
12
. LEAF 1
8Y3-23761-00-00
Unavailable
13
SADDLE
8G6-23766-00-00
Unavailable
14
. SEAT, SPRING 1
878-23768-00-00
Unavailable
15
BOLT
(90101-105E7-00)
Unavailable
16
WASHER, ROCK (8J5)
90215-10155-00
Unavailable
17
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
18
COLLAR
90387-08478-00
Unavailable
19
SPRING ASSEMBLY 2
8Y3-23770-00-00
Unavailable
20
. LEAF 1
8Y3-23761-00-00
Unavailable
21
SADDLE
8G6-23766-00-00
Unavailable
22
. SEAT, SPRING 1
878-23768-00-00
Unavailable
23
. BOLT
90109-105E7-00
Unavailable
24
WASHER, ROCK (8J5)
90215-10155-00
Unavailable
25
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
26
COLLAR
90387-08478-00
Unavailable
27
BOLT, PIN HOLE (8G6)
90102-12030-00
Unavailable
28
NUT, CASTLE
95307-12900-00
Unavailable
29
PIN, COTTER
91490-30030-00
Unavailable
30
SHOCK ABSORBER ASSEMBLY
8V8-23350-00-00
Unavailable
31
COLLAR (878)
90387-08262-00
Unavailable
32
COLLAR (864)
90387-08224-00
Unavailable
33
BOLT, HEXAGON
97013-08055-00
Unavailable
34
BOLT (6K8)
97013-08075-00
Unavailable
35
NUT, NYLON
95717-08300-00
$2.70
