- EC340L (EXCEL III) 1987
TRACK SUSPENSION 2

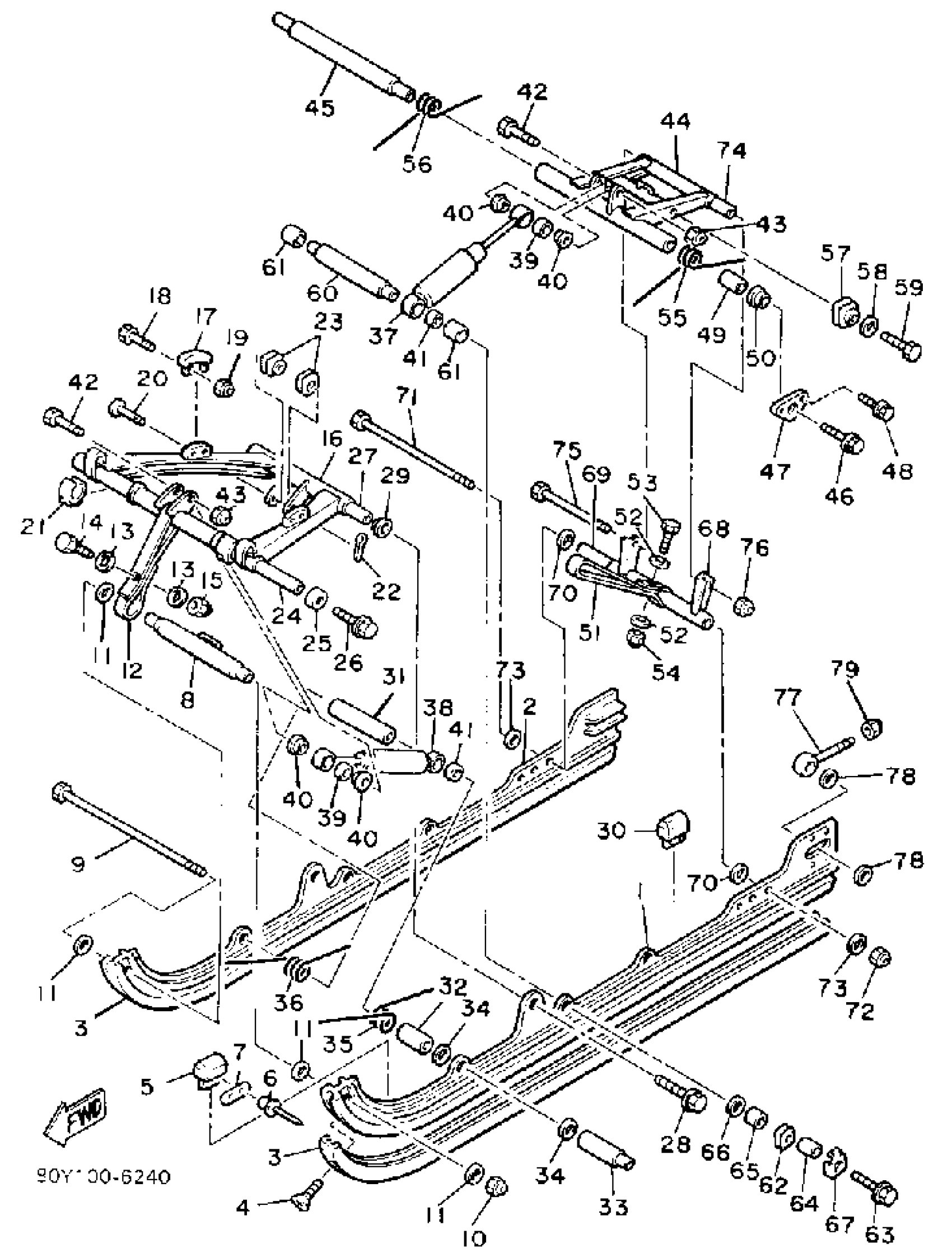

Yamaha EC340L (EXCEL III) 1987 TRACK SUSPENSION 2 Diagram
#
1
FRAME,SLIDING
85L-W4741-00-00
Unavailable
2
FRAME,SLIDING
85L-W4741-00-00
Unavailable
3
RUNNER, SLIDING 1 (8Y3-47421-00-00)
8Y3-47421-00-XX
Unavailable
4
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
5
DAMPER 1
8V0-47456-00-00
Unavailable
6
RIVET, BLIND (8K4)
90267-48062-00
$3.66
7
PLATE, DAMPER
8K2-47458-01-00
$4.77
8
BRACKET 1
8V0-47415-00-00
Unavailable
9
BOLT,HEXAGON
97027-08255-00
Unavailable
10
NUT, NYLON
95717-08300-00
$2.70
11
.. WASHER, PLATE
92990-08600-00
Unavailable
12
STOPPER 1
8Y3-47495-00-00
Unavailable
13
WASHER, PLATE
90201-06747-00
$8.49
14
BOLT, HEXAGON
97017-06025-00
$4.24
15
NUT, NYLON
95707-06300-00
$3.50
16
ARM, PIVOT 1
85L-47331-00-00
Unavailable
17
RUNNER, SLIDING 2
8F3-47422-01-00
Unavailable
18
BOLT, HEXAGON
97017-06025-00
$4.24
19
NUT, NYLON
95707-06300-00
$3.50
20
PIN, CLEVIS (90240-12107-00)
90240-12136-00
Unavailable
21
HOOK 2
8V0-47447-01-00
Unavailable
22
PIN COTTER
91490-30025-00
Unavailable
23
HOOK 2
8R4-47447-00-00
Unavailable
24
SHAFT 1
8A5-47465-02-00
Unavailable
25
SPACER
8U7-47341-00-00
Unavailable
26
BOLT (8V0)
90109-10771-00
Unavailable
27
SHAFT 3
8K2-47485-00-00
Unavailable
28
BOLT, FLANGE
95817-10030-00
Unavailable
29
COLLAR (8U7)
90387-105G6-00
Unavailable
30
DAMPER 1
8V0-47456-00-00
Unavailable
31
COLLAR
90387-160M7-00
Unavailable
32
COLLAR
8V0-47319-00-00
Unavailable
33
COLLAR
90387-166M8-00
Unavailable
34
WASHER, PLATE
90201-161E5-00
Unavailable
35
SPRING, FRONT 1
8Y3-47471-00-00
Unavailable
36
SPRING, FRONT 2
8Y3-47472-00-00
Unavailable
37
SHOCK ABSORBER
8Y3-47480-01-00
Unavailable
38
SHOCK ABSORBER 2
85L-47481-00-00
Unavailable
39
COLLAR
90387-084J8-00
Unavailable
40
COLLAR (8U7)
90387-123G4-00
Unavailable
41
BUSH, PIVOT
8V0-47371-00-00
Unavailable
42
BOLT
97013-08045-00
Unavailable
43
NUT, NYLON
95717-08300-00
$2.70
44
ARM, PIVOT 2
8V0-47332-00-00
Unavailable
45
SHAFT 2
8Y3-47475-00-00
Unavailable
46
BOLT (8V0)
90109-10771-00
Unavailable
47
BRACKET, REAR 2
8Y3-47425-00-00
Unavailable
48
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
49
COLLAR 1
8V0-47365-00-00
Unavailable
50
WASHER
8V0-47384-00-00
Unavailable
51
STOPPER 2
8Y3-47496-00-00
Unavailable
52
WASHER, PLATE
90201-06747-00
$8.49
53
BOLT, HEXAGON
97017-06025-00
$4.24
54
NUT, NYLON
95707-06300-00
$3.50
55
SPRING, REAR 3
8Y3-47473-00-00
Unavailable
56
SPRING, REAR 4
8Y3-47474-00-00
Unavailable
57
HOOK 1
86S-47446-01-00
Unavailable
58
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
59
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
60
SHAFT 4
8Y3-47486-00-00
Unavailable
61
COLLAR
8Y3-47319-00-00
Unavailable
62
HOOK 2
890-47447-00-00
Unavailable
63
BOLT, FLANGE
95817-08055-00
Unavailable
64
COLLAR (878)
90387-08262-00
Unavailable
65
COLLAR
90387-12105-00
Unavailable
66
.. WASHER, PLATE
92990-08600-00
Unavailable
67
PLATE, GUIDE
8V0-47467-00-00
Unavailable
68
BRACKET 3
8V0-47417-00-00
Unavailable
69
COLLAR
90387-08632-00
Unavailable
70
WASHER (1T1)
90201-08649-00
Unavailable
71
BOLT,HEXAGON
97027-08255-00
Unavailable
72
NUT, NYLON
95717-08300-00
$2.70
73
.. WASHER, PLATE
92990-08600-00
Unavailable
74
COLLAR
90387-084J9-00
Unavailable
75
BOLT,HEXAGON
97027-08165-00
Unavailable
76
NUT, NYLON
95717-08300-00
$2.70
77
COLLAR 3
8K2-47479-01-00
Unavailable
78
WASHER, PLATE (888)
90201-20279-00
Unavailable
79
NUT, NYLON
95707-10300-00
Unavailable
