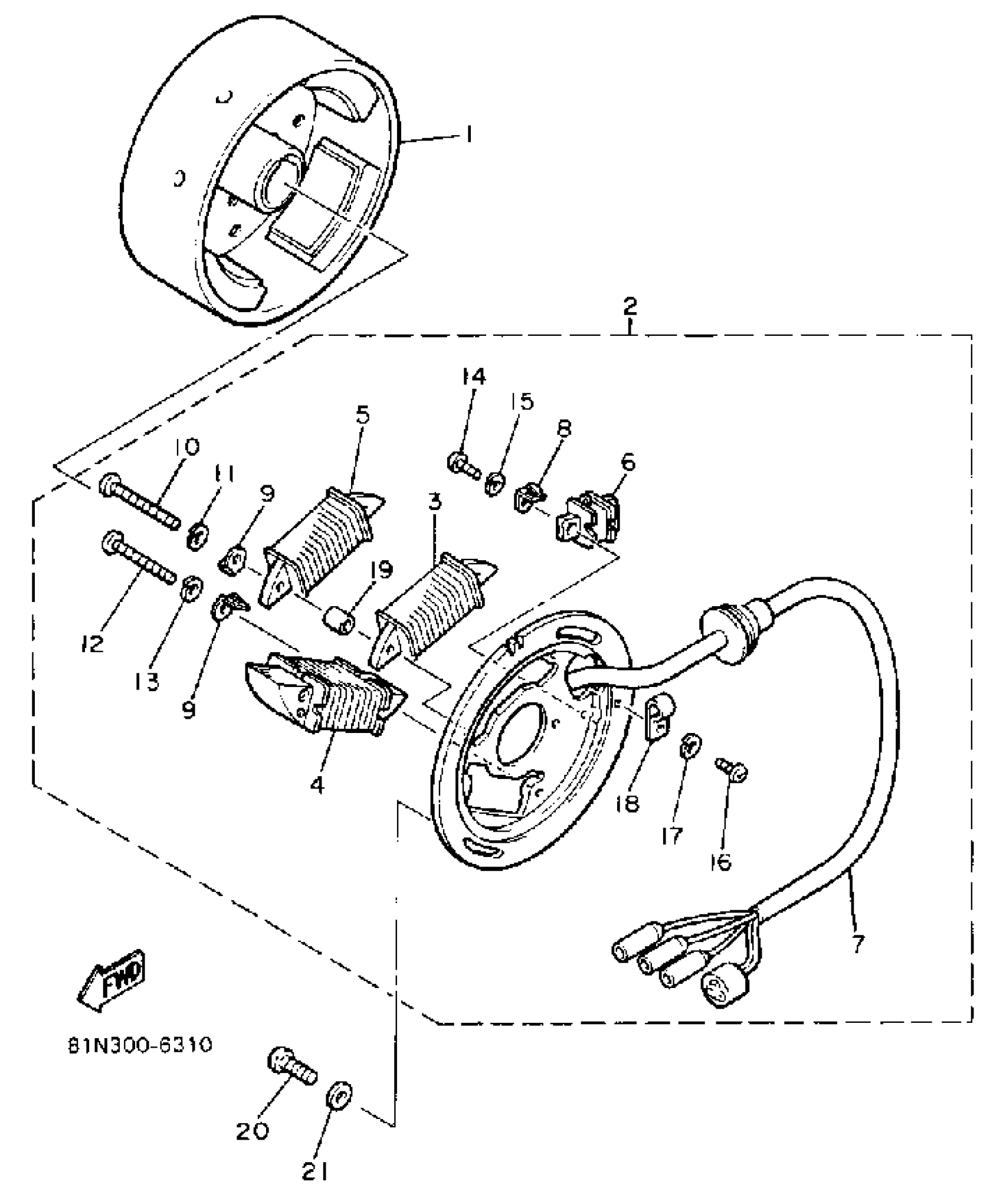

Yamaha EC340L (EXCEL III) 1987 GENERATOR Diagram

#

Description
Price

1

ROTOR ASY

85M-85550-00-00

Unavailable

2

BASE ASSY

83R-85560-M0-00

$247.99

3

COIL, CHARGE

81L-85520-M0-00

Unavailable

4

COIL, LIGHTING 1

81L-81313-M0-00

$66.99

5

COIL, LIGHTING 2

81L-81314-M0-00

Unavailable

6

PULSER ASSY

8R4-85580-M0-00

Unavailable

7

. CORD ASSEMBLY

81L-8131X-M0-00

Unavailable

8

. TERMINAL, EARTH 1

8R4-85568-M0-00

Unavailable

9

. TERMINAL, EARTH 2

8R4-85569-M0-00

Unavailable

10

SCREW, PAN

98507-05040-00

$8.49

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

SCREW, PAN

98507-05035-00

$8.49

13

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

14

SCREW, PAN HEAD

98511-04012-00

Unavailable

15

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

16

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

17

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

18

CLAMP (2T4)

90461-05036-00

Unavailable

19

COLLAR (1M1)

90387-06553-00

Unavailable

20

SCREW, BIND (705)

98980-06016-00

Unavailable

21

WASHER, PLATE 6261117600

90201-06043-00

Unavailable
