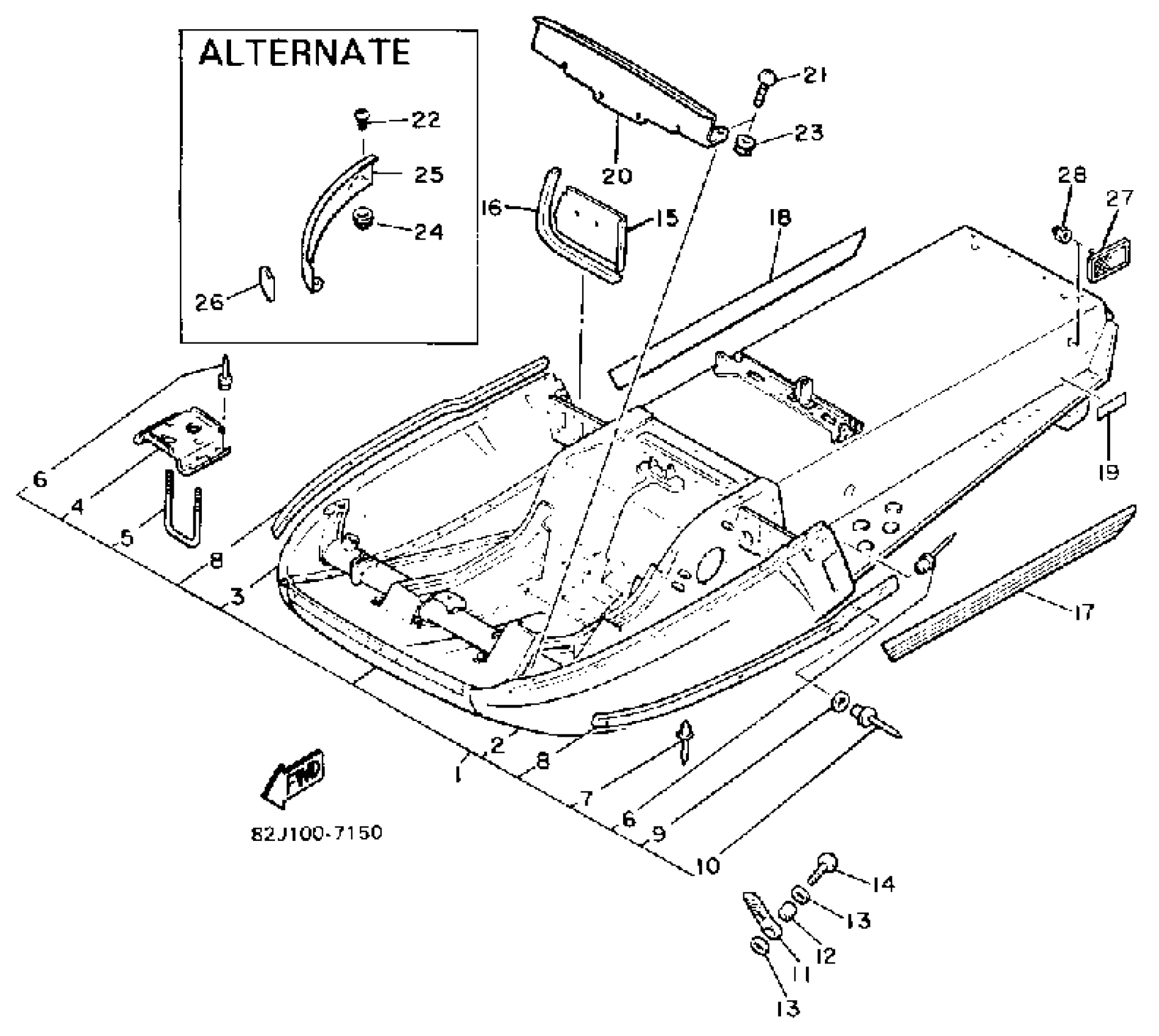

Yamaha EC340L (EXCEL III) 1987 FRAME Diagram
#
Description
Price
1
FRAME
82J-21910-00-00
Unavailable
2
. HOOD 1
82J-21982-00-00
Unavailable
3
. HOOD 2
82J-21983-00-00
Unavailable
4
. BRACKET, BATTERY
8W8-2199G-00-00
Unavailable
5
. SCREW, FITTING
8J4-82133-00-00
Unavailable
6
RIVET, BLIND (8H4)
90267-48053-00
$3.61
7
RIVET, BLIND (8J5)
90267-48057-00
$8.49
8
. TRIM 1
8W6-2196T-00-00
Unavailable
9
WASHER, PLATE (8M6)
90201-047A2-00
$3.35
10
RIVET,BLIND
90267-40080-00
Unavailable
11
BODY, LATCH 1
8M6-77171-00-00
Unavailable
12
COLLAR (420)
90387-06241-00
$8.49
13
WASHER, PLATE 8221447500
90201-06057-00
$5.60
14
SCREW, BINDING
98907-06025-00
$8.49
15
COVER 2
8Y2-2198G-00-00
Unavailable
16
SHIELD, NOISE
8Y2-2199F-00-00
Unavailable
17
EMBLEM 4
82J-77354-00-00
Unavailable
18
EMBLEM 5
82J-77355-00-00
Unavailable
19
INDICATOR 2
8K2-77742-00-00
Unavailable
20
COVER,1
85T-2198F-00-00
Unavailable
21
SCREW, BINDING
98907-06012-00
Unavailable
22
SCREW, BINDING
98907-06012-00
Unavailable
23
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
24
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
25
PROTECTOR 2
82H-77552-00-00
Unavailable
26
PROTECTOR 3
82H-77553-01-00
Unavailable
27
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
28
NUT, NYLON
95707-05300-00
Unavailable
