1986 Yamaha Excel Iii (EC340K) Starting Motor Diagram

← All diagrams

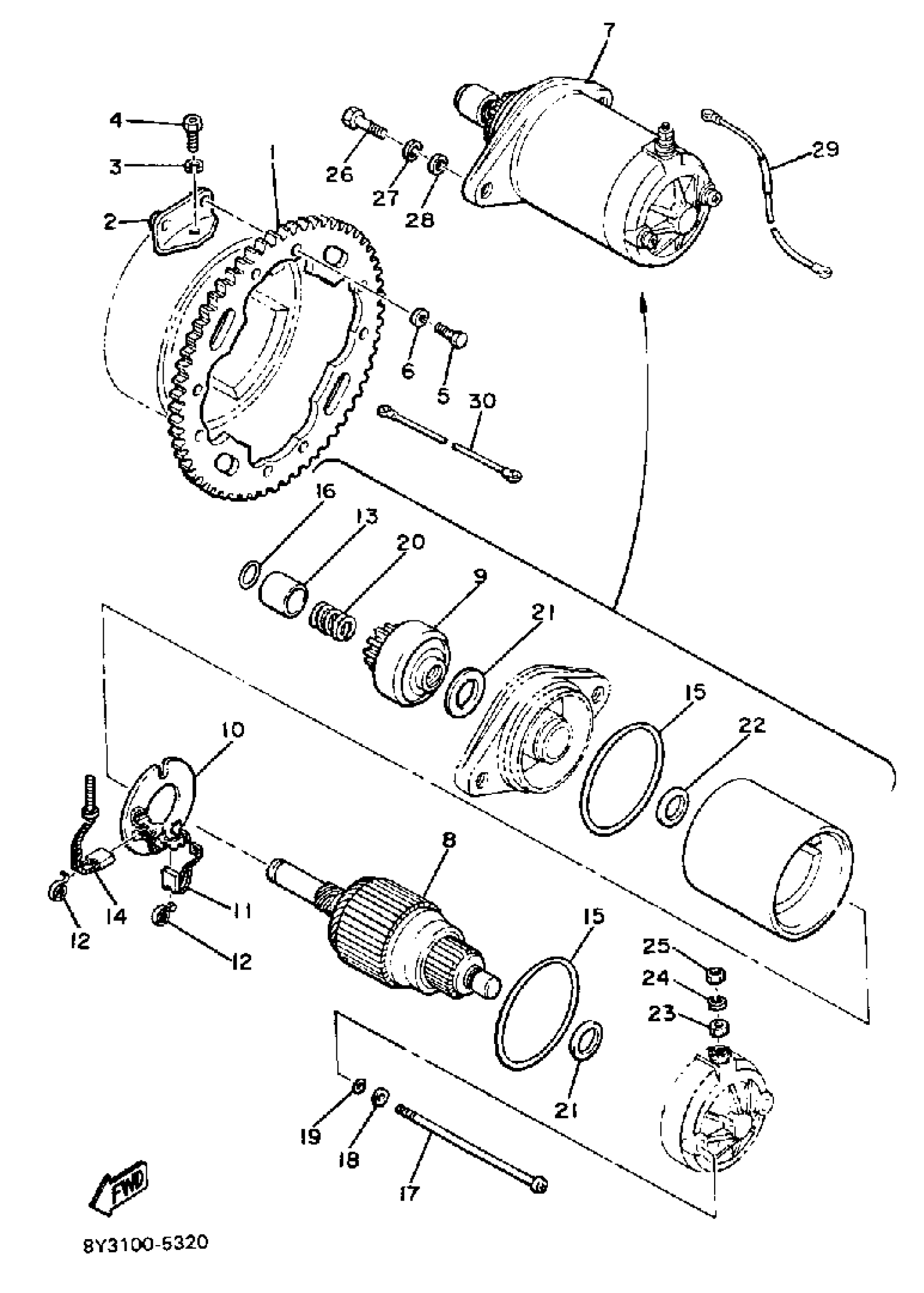

Find the part on the Starting Motor diagram for your 1986 Yamaha Excel Iii (EC340K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Excel Iii (EC340K) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, RING

8J4-81891-01-00

1
Out of stock

2

STAY, RING GEAR

8J4-81895-01-00

1
Out of stock

3

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

4

BOLT, HEX SKT HEADSOCKET HEAD

90110-08028-00

1
Out of stock

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

STARTING MOTOR ASSY

8BB-81800-02-00

—

$788.91

In stock

8

ARMATURE ASSY

8Y3-81850-50-00

—

$283.62

In stock

9

. CLUTCH, OVER RUN

8L6-81832-50-00

1
Out of stock

10

BRUSH HOLDER ASSY

8L6-81840-51-00

1

$58.95

In stock

11

BRUSH 2

73A-81812-00-00

—

$20.15

In stock

12

SPRING, BRUSH

8L6-81813-50-00

—

$3.77

In stock

13

RING, STOP

8L6-81833-50-00

—

$22.69

In stock

14

BRUSH 1

73A-81811-01-00

1

$35.31

In stock

15

O-RING

4H7-81844-00-00

—

$21.05

In stock

16

RING

8L6-81834-50-00

—

$3.37

In stock

17

BOLT

84N-81826-00-00

—

$14.71

In stock

18

. WASHER 2

8L6-81824-50-00

1
Out of stock

19

O-RING

8L6-81847-50-00

—

$3.05

In stock

20

SPRING, LEVER

8L6-81836-50-00

—

$3.63

In stock

21

WASHER 1

4H7-81843-50-00

—

$3.74

In stock

22

WASHER

8L6-81835-50-00

—

$3.05

In stock

23

NUT

4H7-81872-00-00

—

$4.86

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

NUT(650)

95380-06700-00

—

$6.17

In stock

26

BOLT

97014-08040-00

—

$5.26

In stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

28

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

29

WIRE, LEAD

8J4-82117-01-00

1
Out of stock

30

WIRE, MINUS LEAD

8W8-82116-01-00

1
Out of stock
