Description

Price

1

PRI. FIXED SHEAVE

8H8-W1761-00-00

Unavailable

2

SHEAVE, PRI SLIDING

8E7-17621-01-00

Unavailable

3

BUSH, SPEC''L SHAPE

90389-41018-00

Unavailable

4

PRI. SHEAVE CAP

8E7-W1762-00-00

Unavailable

5

SEAT, SPRING

8E7-17644-02-00

Unavailable

6

SPIDER

8A7-17627-00-00

Unavailable

7

SLIDER

8F2-17653-00-00

$13.49

8

PIN, DOWEL (8V8)

93607-44190-00

$16.99

9

COLLAR (8A7)

90387-06560-00

$7.49

10

WASHER (8J0)

90202-06113-00

$4.72

11

PIN, W/HOLE (8G6)

90240-06062-00

$10.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

PIN, COTTER

91490-25020-00

$3.19

14

COLLAR

90387-28721-00

Unavailable

15

SPACER 1

8J0-17654-00-00

Unavailable

16

BOLT(JF7)

97080-06030-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

BOLT

90101-13406-00

Unavailable

19

. BUSH, SPEC''L SHAPE

90389-34019-00

Unavailable

20

WASHER, SPRING

90204-13010-00

Unavailable

21

WASHER, PLATE (8K2)

90201-090A4-00

Unavailable

22

WEIGHT 1

8G8-17632-00-00

Unavailable

23

RIVET, COUNTER SUNK (8G8)

90261-06017-00

Unavailable

24

WASHER, PLATE(8E7)

90201-07641-00

Unavailable

25

SPRING, COMPRESSION

90501-50500-00

Unavailable

26

V-BELT

820-17641-01-00

Unavailable

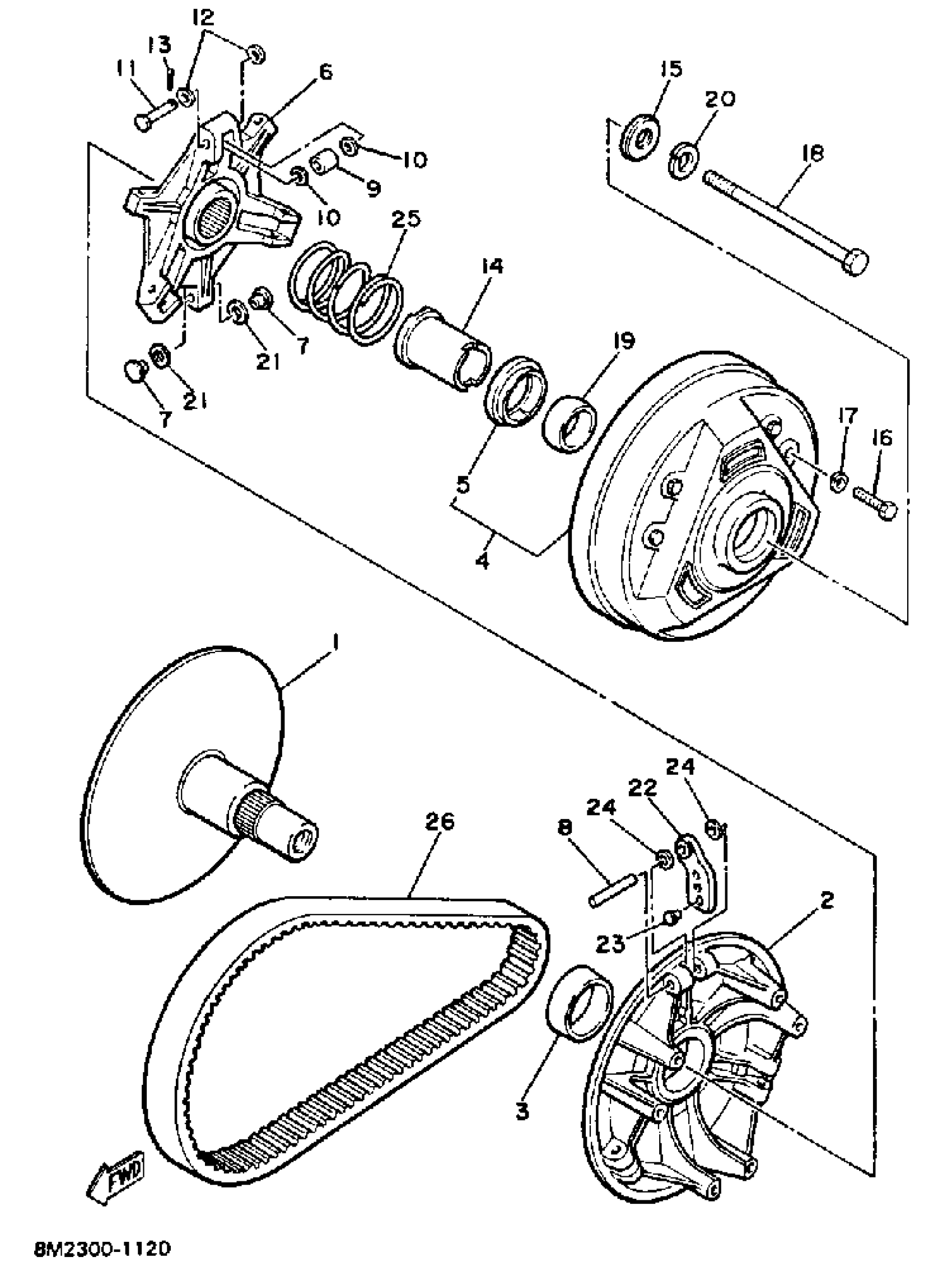

Yamaha EC340K (EXCEL III) 1986 PRIMARY SHEAVE Diagram

PRI. FIXED SHEAVE

SHEAVE, PRI SLIDING

BUSH, SPEC''L SHAPE

PRI. SHEAVE CAP

SEAT, SPRING

SPIDER

SLIDER

PIN, DOWEL (8V8)

COLLAR (8A7)

WASHER (8J0)

PIN, W/HOLE (8G6)

WASHER, SPRING

PIN, COTTER

COLLAR

SPACER 1

BOLT(JF7)

WASHER, SPRING

BOLT

. BUSH, SPEC''L SHAPE

WASHER, SPRING

WASHER, PLATE (8K2)

WEIGHT 1

RIVET, COUNTER SUNK (8G8)

WASHER, PLATE(8E7)

SPRING, COMPRESSION

V-BELT
