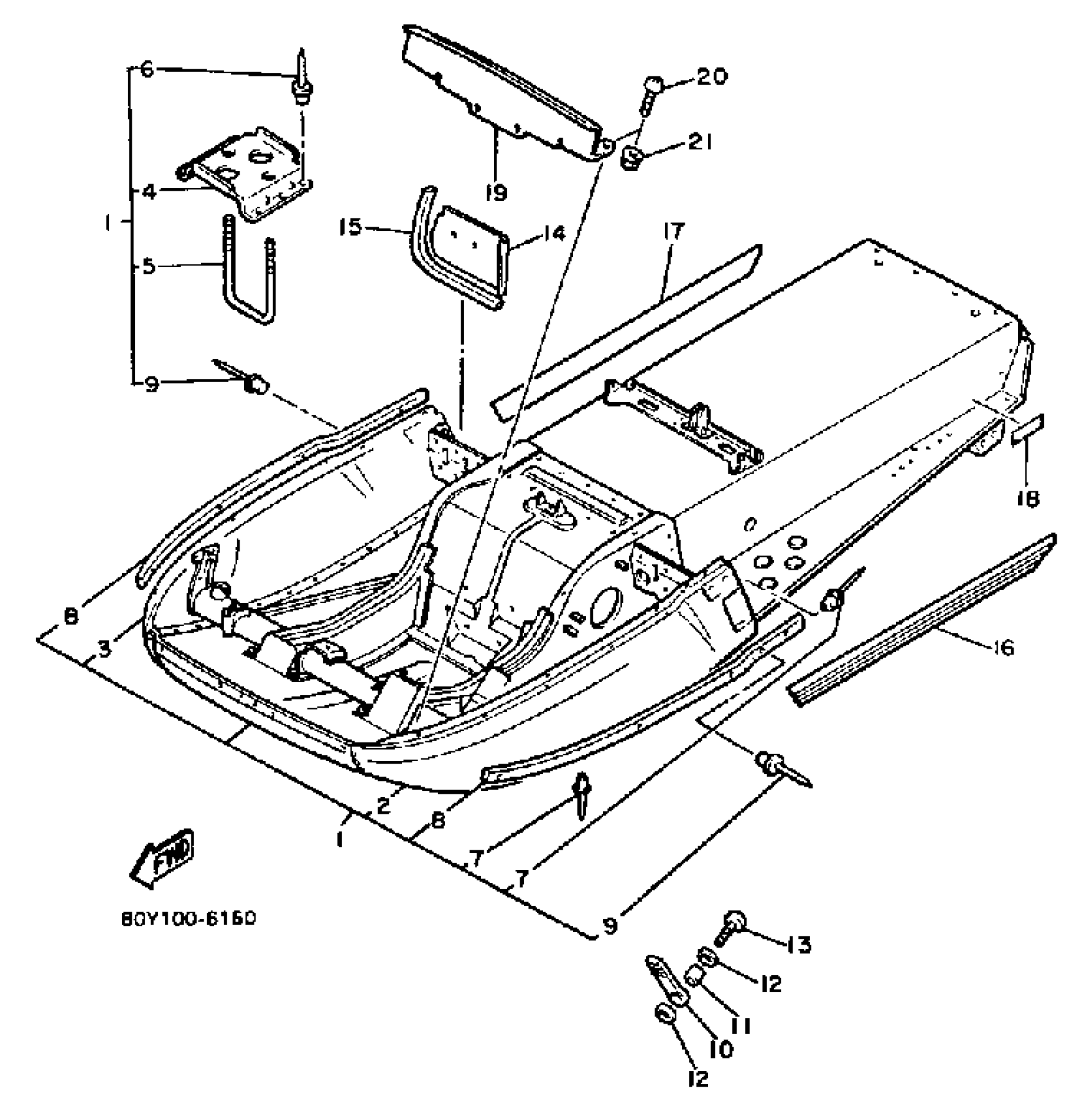

Yamaha EC340K (EXCEL III) 1986 FRAME Diagram
#
Description
Price
1
FRAME
80Y-21910-00-00
Unavailable
2
. HOOD 1
80Y-21982-00-00
Unavailable
3
. HOOD 2
80Y-21983-00-00
Unavailable
4
. BRACKET, BATTERY
8W8-2199G-00-00
Unavailable
5
. SCREW, FITTING
8J4-82133-00-00
Unavailable
8
. TRIM 1
8W6-2196T-00-00
Unavailable
9
RIVET,BLIND
90267-40080-00
Unavailable
10
BODY, LATCH 1
8M6-77171-00-00
Unavailable
14
COVER 2
8Y2-2198G-00-00
Unavailable
15
SHIELD, NOISE
8Y2-2199F-00-00
Unavailable
16
EMBLEM 4
(80Y-77354-00-00)
Unavailable
17
EMBLEM 5
(80Y-77355-00-00)
Unavailable
18
INDICATOR 2
8K2-77742-00-00
Unavailable
19
COVER,1
85T-2198F-00-00
Unavailable
20
SCREW, BINDING
98907-06012-00
Unavailable
21
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
