1985 Yamaha Excel III (EC340J) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1985 Yamaha Excel III (EC340J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

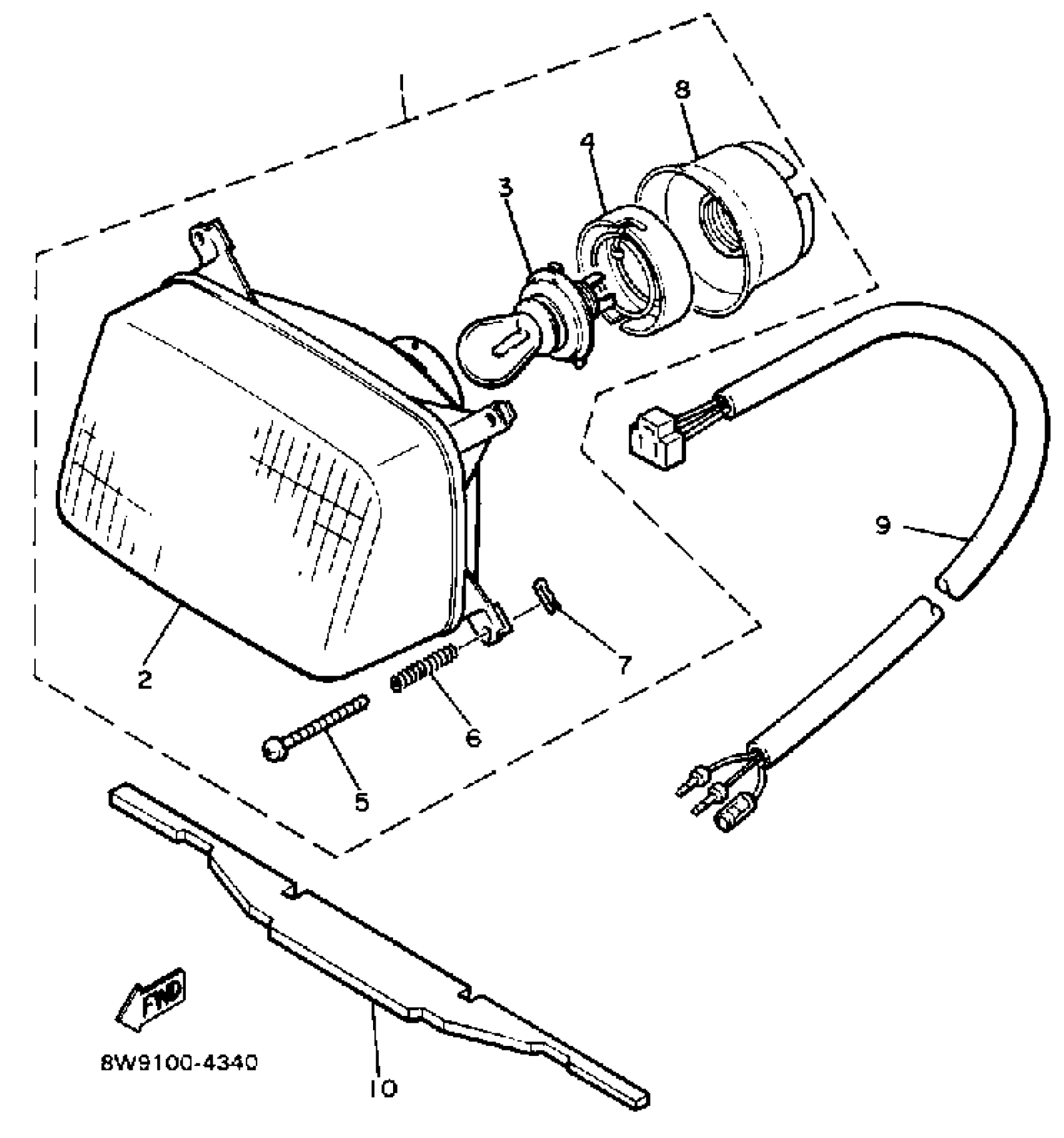

1985 Yamaha Excel III (EC340J) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASY

8W6-84310-00-00

1
Out of stock

2

HEADLIGHT UNIT ASY

8W6-84310-00-00

1
Out of stock

3

BULB,HL 12V60/60W

8A7-84314-00-XX

1
Out of stock

4

HOLDER, SOCKET

8A7-84312-00-00

1
Out of stock

5

SCREW, ADJUSTING

8M6-84331-00-00

1

$14.80

In stock

6

SPRING, ADJUST SCREW

8A5-84332-00-00

1

$7.40

In stock

7

CLIP

8K4-84374-00-00

1

$6.82

In stock

8

COVER, SOCKET

8A7-84397-01-00

—

$20.35

In stock

9

UNAVAILABLE IN PRICE BOOK (8W6-84359-00)

848-84359-00-00

1
Out of stock

10

DAMPER, HEADLIGHT 1

8W6-84366-00-00

1
Out of stock
