1985 Yamaha Excel III (EC340J) Generator Diagram

← All diagrams

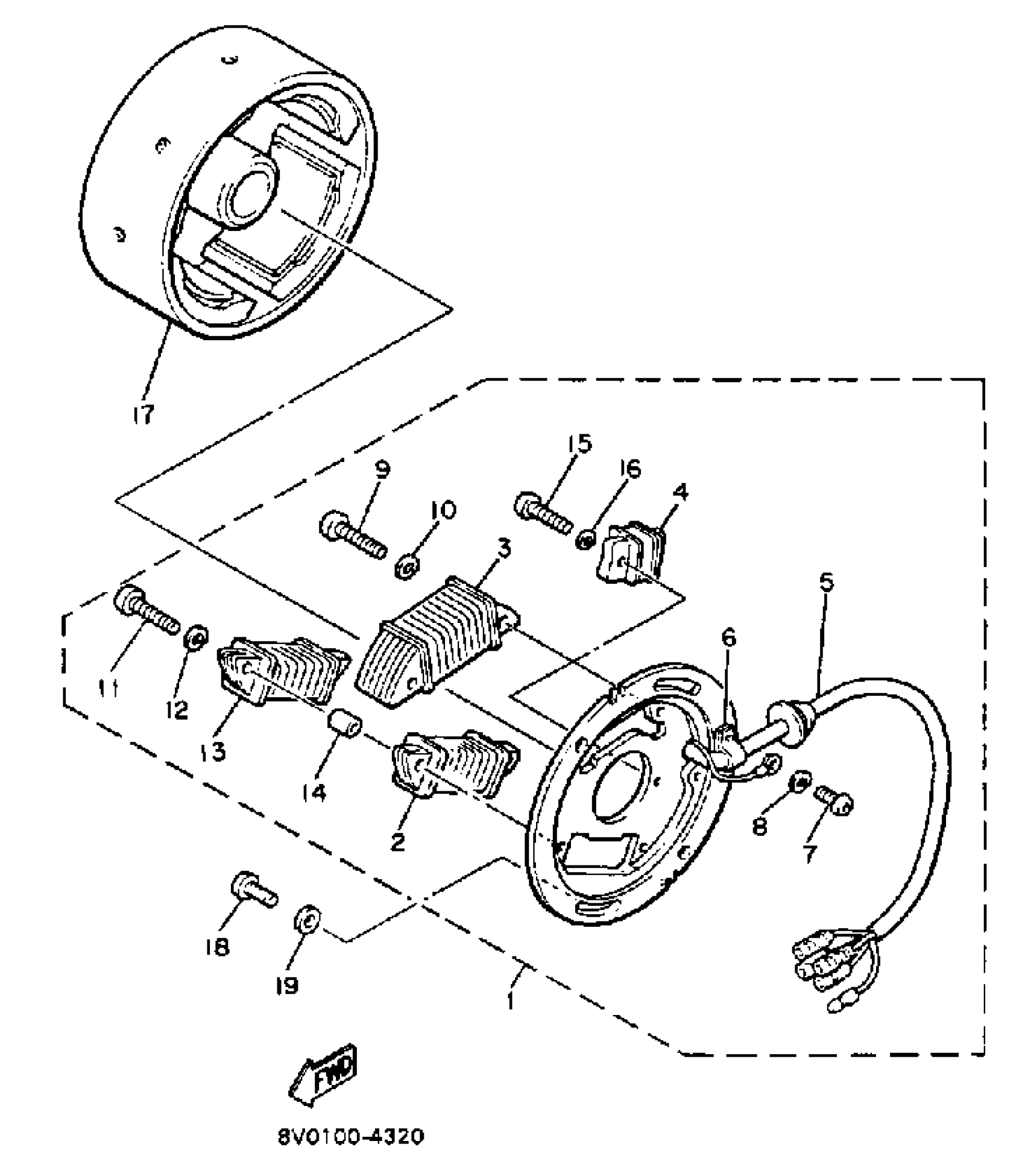

Find the part on the Generator diagram for your 1985 Yamaha Excel III (EC340J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Excel III (EC340J) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

8W8-85510-20-00

1
Out of stock

2

. COIL, SOURCE (8T0-85511-20)

86M-85511-00-00

1
Out of stock

3

. COIL, SOURCE (8T0-85511-20)

86M-85511-00-00

1
Out of stock

4

. COIL, PULSER (8N5-85580-20)

82M-85580-20-00

1
Out of stock

5

. LEAD WIRE ASSEMBLY (8V0-85515-20)

8W0-85515-20-00

1
Out of stock

6

CLAMP, READ

445-81328-20-00

—

$5.35

In stock

7

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

8

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

9

SCREW, PAN

98507-05035-00

1

$6.69

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

SCREW, PAN

98507-05040-00

1

$6.68

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

. COIL, LIGHTING 2 (8V0-85514-20)

82M-85514-20-00

1
Out of stock

14

. SPACER

8T0-85519-20-00

1
Out of stock

15

SCREW, PAN HEAD

98507-04018-00

1
Out of stock

16

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

17

. ROTOR ASSEMBLY (8K1-85550-20)

8J9-85550-20-00

1
Out of stock

18

SCREW, BIND (705)

98980-06016-00

—
Out of stock

19

WASHER, PLATE 6261117600

90201-06043-00

—
Out of stock
