Description

Price

1

FRAME

8Y3-21910-00-00

Unavailable

2

HOOD 1

82A-21982-00-00

Unavailable

3

HOOD 2

8Y3-21983-70-00

Unavailable

4

. BRACKET, BATTERY

8W8-2199G-00-00

Unavailable

5

. SCREW, FITTING

8J4-82133-00-00

Unavailable

6

RIVET, BLIND (8H4)

90267-48053-00

$3.61

7

RIVET, BLIND (8J5)

90267-48057-00

$8.49

8

. TRIM 1

8W6-2196T-00-00

Unavailable

9

RIVET,BLIND

90267-40080-00

Unavailable

10

BODY, LATCH 1

8M6-77171-00-00

Unavailable

11

COLLAR (420)

90387-06241-00

$8.49

12

WASHER, PLATE 8221447500

90201-06057-00

$5.60

13

SCREW, BINDING

98907-06025-00

$8.49

14

COVER 2

8Y2-2198G-00-00

Unavailable

15

SHIELD, NOISE

8Y2-2199F-00-00

Unavailable

16

EMBLEM 4

8Y3-77354-00-00

Unavailable

17

EMBLEM 5

8Y3-77355-00-00

Unavailable

18

INDICATOR 2

8K2-77742-00-00

Unavailable

19

COVER,1

85T-2198F-00-00

Unavailable

20

SCREW, BINDING

98907-06012-00

Unavailable

21

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

22

ORNAMENT 3

8Y3-77169-00-00

Unavailable

23

ORNAMENT 4

8Y3-77113-00-00

Unavailable

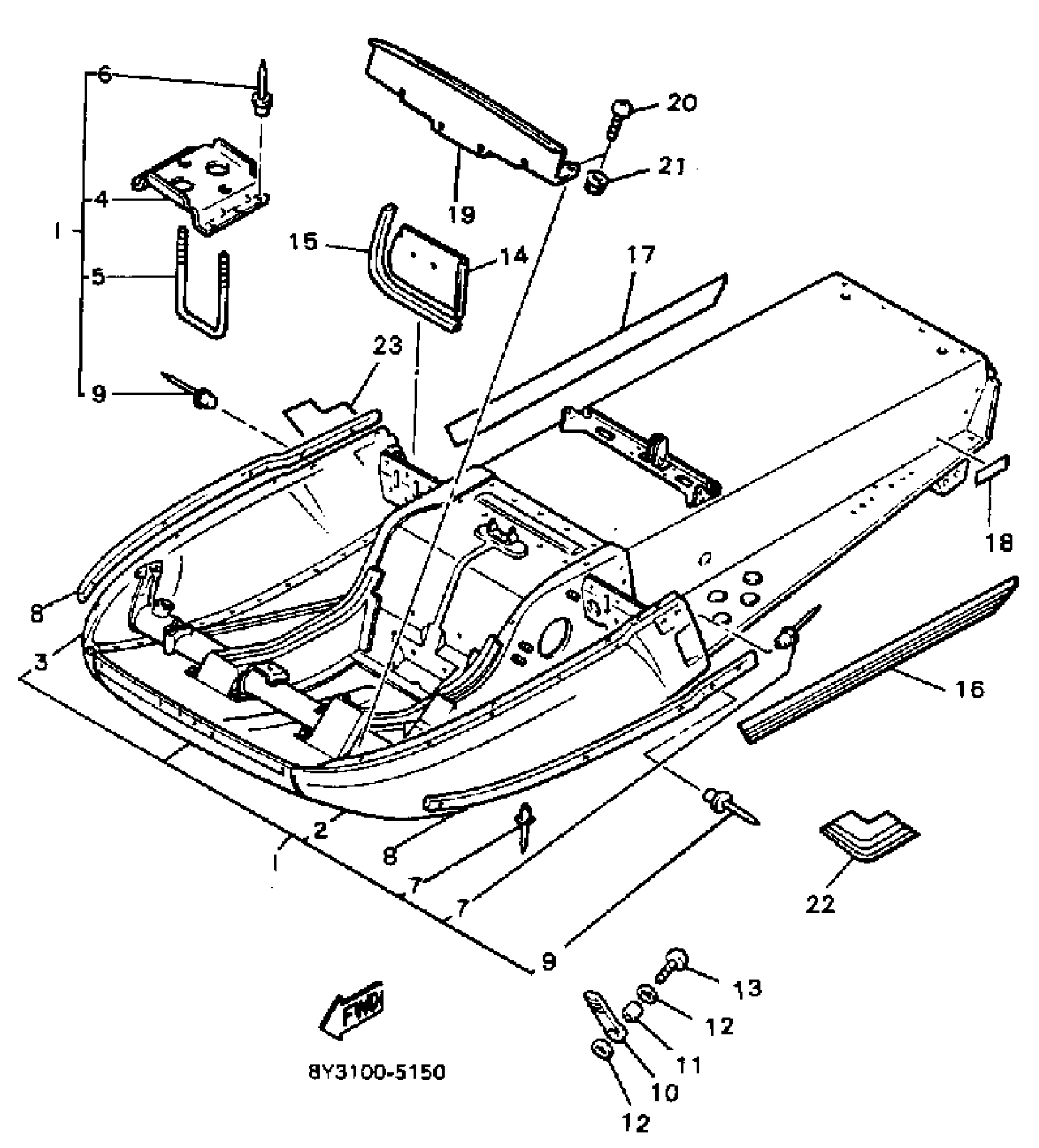

Yamaha EC340J (EXCEL III) 1985 FRAME Diagram

FRAME

HOOD 1

HOOD 2

. BRACKET, BATTERY

. SCREW, FITTING

RIVET, BLIND (8H4)

RIVET, BLIND (8J5)

. TRIM 1

RIVET,BLIND

BODY, LATCH 1

COLLAR (420)

WASHER, PLATE 8221447500

SCREW, BINDING

COVER 2

SHIELD, NOISE

EMBLEM 4

EMBLEM 5

INDICATOR 2

COVER,1

SCREW, BINDING

NUT, FLANGE(7NB)

ORNAMENT 3

ORNAMENT 4
