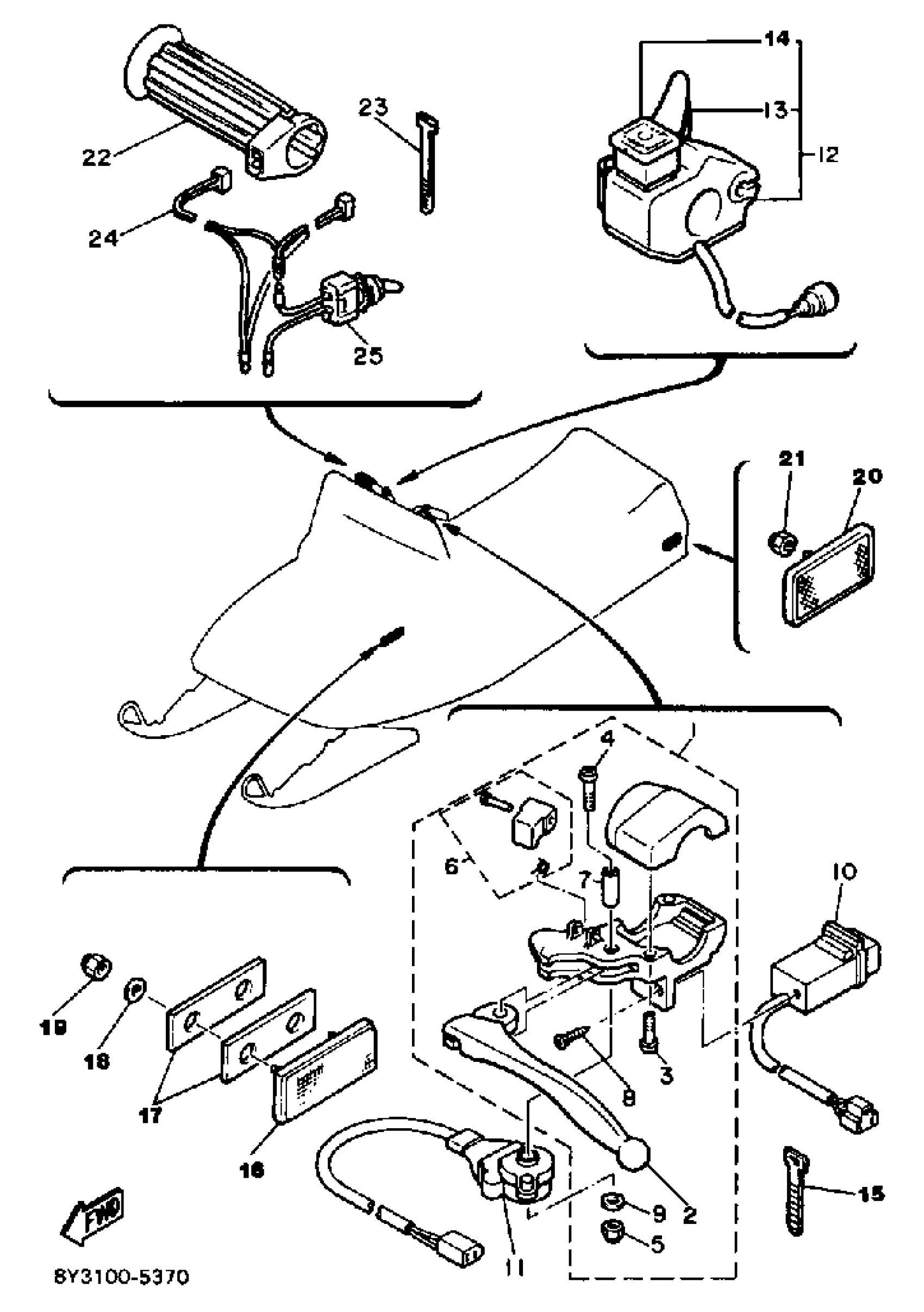

Yamaha EC340J (EXCEL III) 1985 ELECTRICAL 2 Diagram

#

Description
Price

1

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

$117.99

2

LEVER 1

8H8-83912-00-00

$20.99

3

. UNAVAILABLE IN PRICE BOOK

90157-05067-00

Unavailable

4

SCREW, PAN

98507-05040-00

$8.49

5

NUT, NYLON

95707-05300-00

$4.24

6

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

Unavailable

7

COLLAR, LEVER

802-83913-00-00

Unavailable

8

. SCREW, TAPPING

97780-30312-00

Unavailable

9

. WASHER, PLAIN

92990-05200-00

Unavailable

10

BEAM SWITCH ASSY

8H8-83950-01-00

$79.99

11

STOP SWITCH ASSY

88R-82530-00-00

$31.99

12

LEVER HOLDER ASSEMBLY (RIGHT)

84R-82720-00-00

Unavailable

13

LEVER, THROTTLE

8V0-42138-00-00

$64.99

14

EMERGENCY SAFETYSW

82K-82575-09-00

Unavailable

15

BAND

341-26397-01-00

Unavailable

16

BASE, REFLECTOR

80E-85115-00-00

Unavailable

17

BASE, REFLECTOR

80E-85115-00-00

Unavailable

18

WASHER, PLAIN (646)

92990-05600-00

Unavailable

19

NUT, NYLON

95707-05300-00

$4.24

20

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

21

NUT, NYLON

95707-05300-00

$4.24

22

88T GRIP BLACK 1 PC

88T-26240-85-BK

Unavailable

23

BAND, SWITCH CORD

437-83936-01-00

Unavailable

24

WIRE, SUB-LEAD

8Y2-82318-00-00

Unavailable

25

SWITCH

82J-82917-00-00

Unavailable
