ELECTRICAL 1

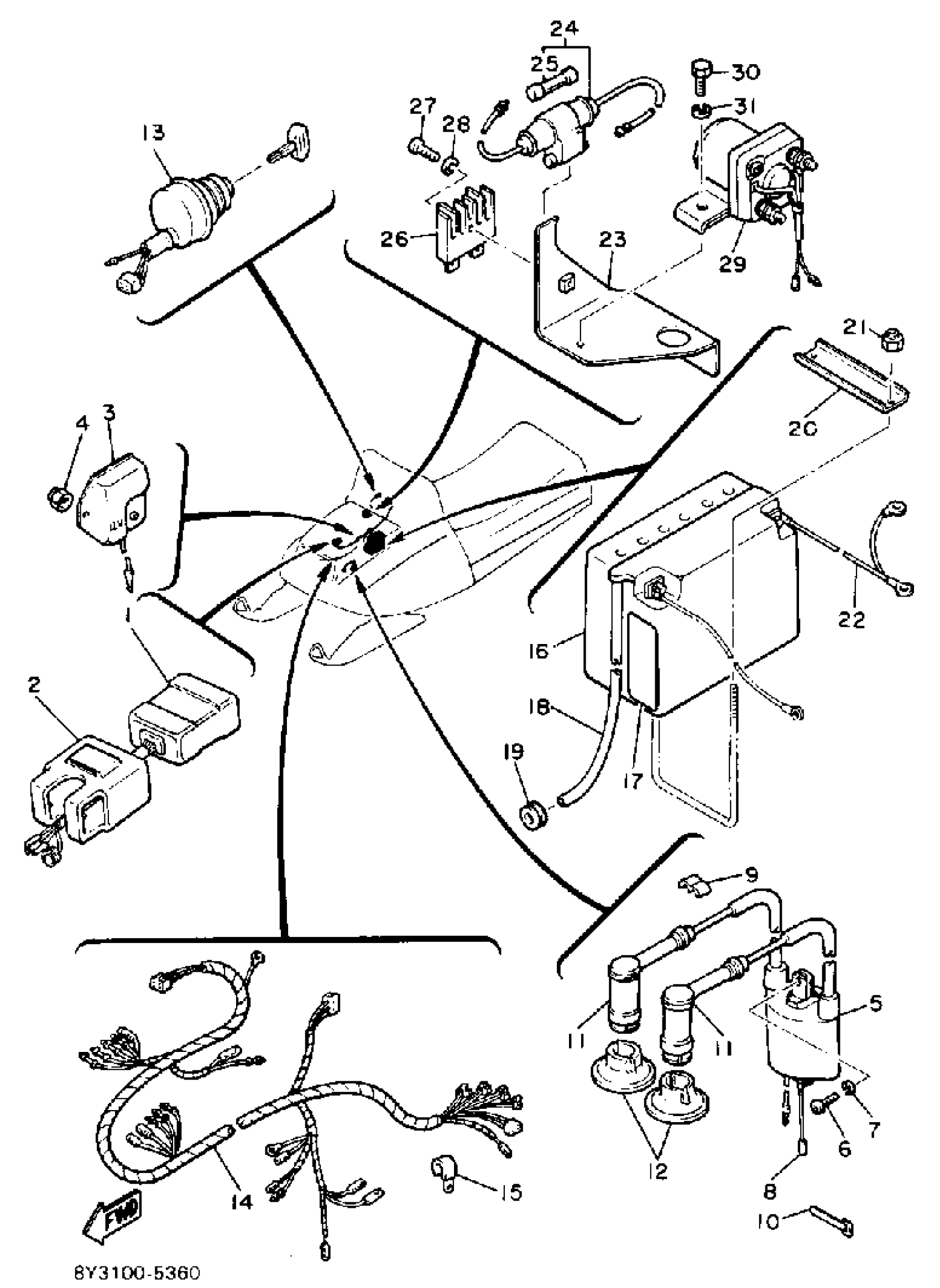

Yamaha EC340J (EXCEL III) 1985 ELECTRICAL 1 Diagram
#
1
C.D.I. UNIT ASSEMBLY
8V0-85540-21-00
Unavailable
2
BAND
2A7-85546-00-00
Unavailable
3
VOLTAGE REGULATOR ASSY
7XE-81910-00-00
$71.99
4
NUT, NYLON
95707-06300-00
$3.50
5
IGNITION COIL ASSEMBLY
8W3-82310-T0-00
Unavailable
6
SCREW PAN HEAD
98580-06020-00
$8.49
7
WASHER, SPRING
92995-06100-00
Unavailable
9
GROMMET 1
8W6-82355-00-00
Unavailable
10
BAND, SWITCH CORD
437-83936-01-00
$7.99
11
PLUG CAP ASSEMBLY
8J0-82370-10-00
Unavailable
12
SEAL, PLUG CAP
8G8-82372-00-00
Unavailable
13
MAIN SWITCH ASY
8J9-82510-20-00
Unavailable
14
WIRE HARNESS ASSEMBLY
8Y3-82590-20-00
Unavailable
15
CLAMP
90465-08028-00
Unavailable
16
YB14LA2 YUASA BATTERY
YB1-4LA20-00-00
Unavailable
17
LABEL, BATTERY
40A-82141-G0-00
Unavailable
18
HOSE (L340)
90445-08684-00
Unavailable
19
GROMMET 152845180000
90480-12013-00
Unavailable
20
PLATE, BATTERY FITTING
8J4-82136-00-00
Unavailable
21
NUT, NYLON
95707-06300-00
$3.50
22
WIRE PLUS LEAD
84N-82115-00-00
Unavailable
23
PLATE, RECTIFR FTNG
8W8-81975-00-00
Unavailable
24
FUSE HOLDER ASSEMBLY
2J2-82150-10-00
Unavailable
25
FUSE
682-82151-02-00
Unavailable
26
RECTIFIER ASSY (RXKING,RXS)
3HB-H1970-01-00
Unavailable
27
SCREW PAN HEAD
98580-06020-00
$8.49
28
WASHER, SPRING
92995-06100-00
Unavailable
29
. STARTER RELAY ASSY
8J9-81940-10-00
Unavailable
30
BOLT (661)
97013-06012-00
Unavailable
31
WASHER, SPRING
92995-06100-00
Unavailable
