Description

Price

1

TRACK ASY

8J6-47110-02-00

Unavailable

2

METAL, SLIDE

8A5-47115-00-00

Unavailable

3

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

4

BEARING(8AB)

93306-00444-00

$41.99

5

CIRCLIP(5U8)

99009-42500-00

$8.49

6

WASHER (8G1)

90201-08681-00

$7.49

7

BOLT (8K2)

90109-08559-00

$8.49

8

AXLE, REAR

8E3-47521-00-00

Unavailable

9

PIN, SPRING (663)

91690-40040-00

Unavailable

10

WASHER

8E3-47384-00-00

Unavailable

11

WHEEL GUIDE COMP.

8L4-47530-00-00

$171.99

12

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

13

CIRCLIP(48Y)

99009-47500-00

$9.49

14

WASHER, PLATE (8M2)

90201-083A8-00

$2.02

15

BOLT, HEXAGON

97013-08020-00

$1.16

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

BRACKET KIT (FRT) (ONLY)

8N5-47000-10-00

Unavailable

18

BRACKET 4

8L4-47418-00-00

Unavailable

19

. BRACKET 7

8L4-47419-00-00

Unavailable

20

BOLT(21W)

97017-06035-00

Unavailable

21

SUS.WHEEL KIT

8N5-47000-00-00

Unavailable

22

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

23

BEARING(8AB)

93306-00444-00

$41.99

24

CIRCLIP(5U8)

99009-42500-00

$8.49

25

WASHER (8G1)

90201-08681-00

$7.49

26

BOLT (8K2)

90109-08559-00

$8.49

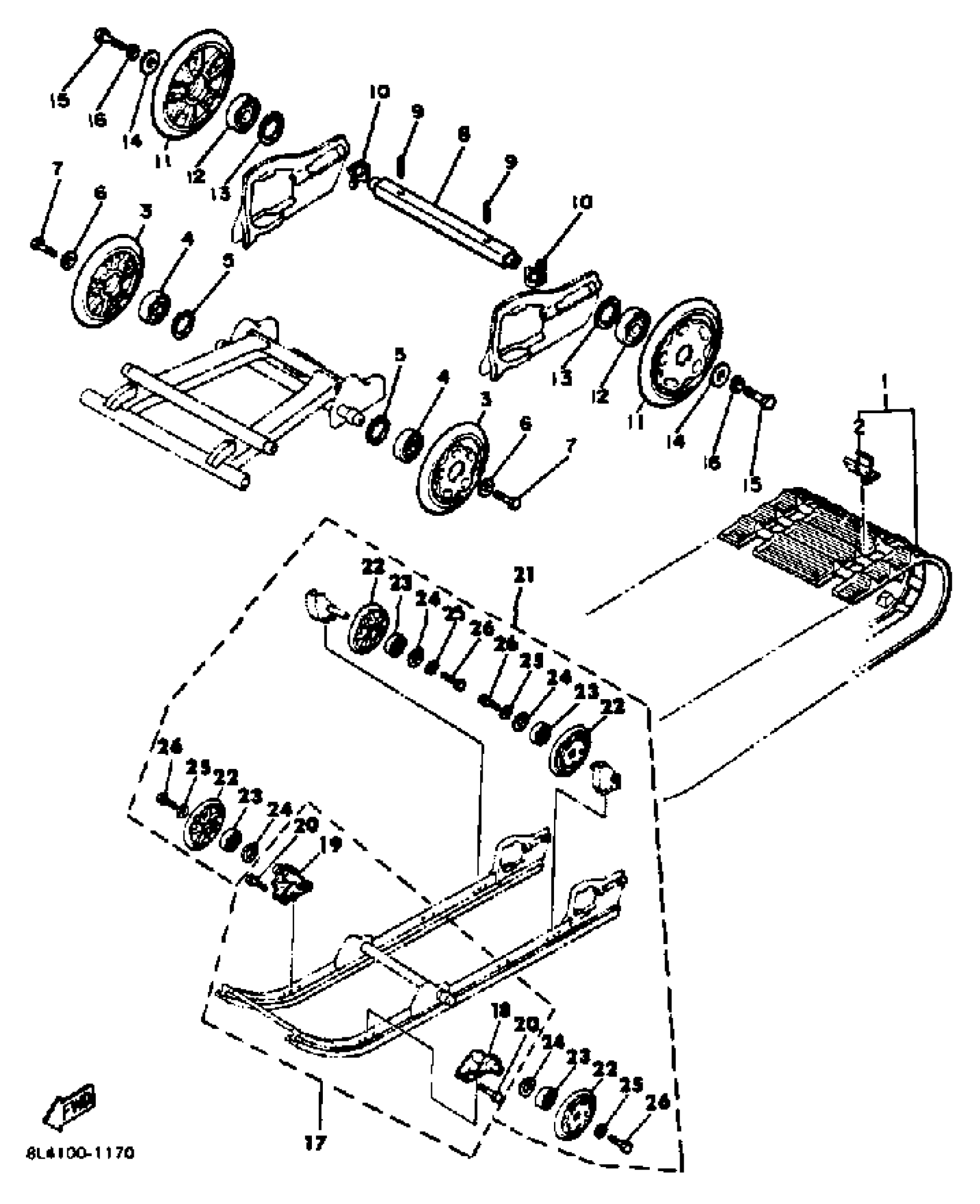

Yamaha EC340H (EXCEL III) 1984 TRACK SUSPENSION 1 Diagram

TRACK ASY

METAL, SLIDE

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

WASHER (8G1)

BOLT (8K2)

AXLE, REAR

PIN, SPRING (663)

WASHER

WHEEL GUIDE COMP.

BRG,R-B 62042RS 47MM 110G KY

CIRCLIP(48Y)

WASHER, PLATE (8M2)

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

BRACKET KIT (FRT) (ONLY)

BRACKET 4

. BRACKET 7

BOLT(21W)

SUS.WHEEL KIT

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

WASHER (8G1)

BOLT (8K2)
