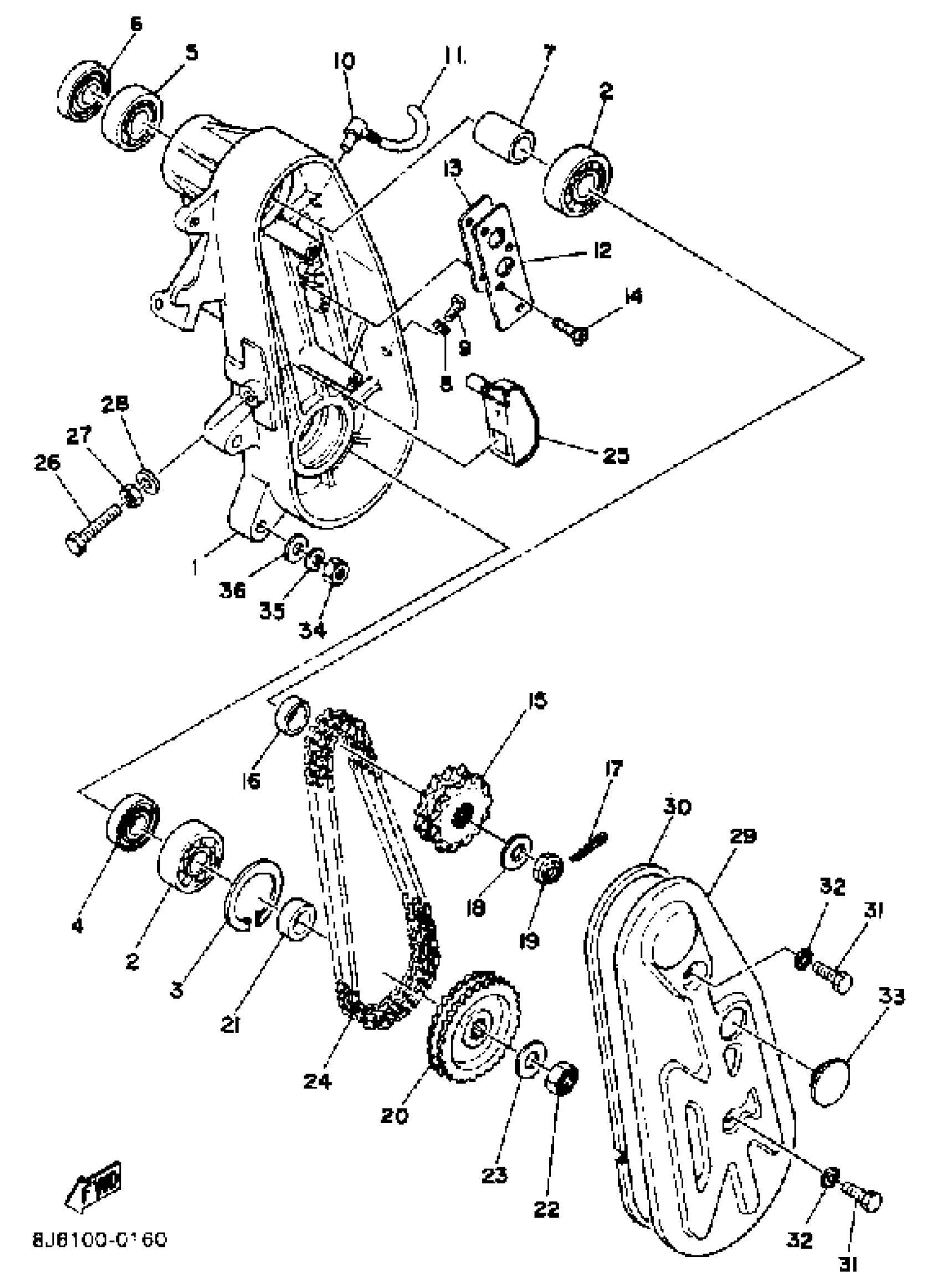

Yamaha EC340H (EXCEL III) 1984 TRACK DRIVE 2 Diagram

HOUSING, CHAIN

8F3-47541-00-00

Unavailable

BRG,R-B 6304 52MM 144G NT

93306-30407-00

Unavailable

CIRCLIP(26H)

99009-52500-00

$12.49

OIL SEAL(4BA)

93102-20447-00

$11.49

BEARING(1GJ)

93306-20458-00

$43.99

OIL SEAL (30X47X7-810)

93102-30083-00

$13.49

COLLAR

90387-20580-00

Unavailable

GASKET 838153840000

90430-06016-00

$8.49

BOLT,SOCKET

91317-06010-00

$9.49

BREATHER

583-15371-00-00

$6.99

HOSE (L420)

90445-092K1-00

$12.49

PLATE

8G8-47591-00-00

Unavailable

GASKET

85T-47592-00-00

Unavailable

SCREW, FLAT

98707-05014-00

$9.49

SPRKT,CHAIN DR

806-17682-30-00

Unavailable

COLLAR

90387-19649-00

Unavailable

PIN, COTTER(6L5)

91490-25030-00

Unavailable

WASHER, PLATE (35T)

90201-122H1-00

Unavailable

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

SPROCKET, CHN DRVN

8G8-47548-20-00

Unavailable

COLLAR

90387-20155-00

Unavailable

NUT, U

95617-10100-00

Unavailable

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

CHAIN 60L

94880-01060-00

Unavailable

TENSIONER

8G8-47611-00-00

Unavailable

BOLT, HEXAGON (8F3)

90101-10357-00

Unavailable

NUT (682)

95380-10700-00

Unavailable

WASHER SEAL 256111730200

90210-10004-00

Unavailable

CAP, HOUSING

8F3-47543-00-00

Unavailable

RING, HOUSING (97302-08020)

8F3-47558-00-00

Unavailable

BOLT, HEXAGON

97013-08020-00

Unavailable

WASHER (821)

90210-08002-00

Unavailable

UNAVAILABLE IN PRICE BOOK (8J5-22315-00)

148-23315-00-00

Unavailable

NUT(6L2)

95333-08600-00

Unavailable

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

WASHER, PLAIN

92990-08200-00

Unavailable
