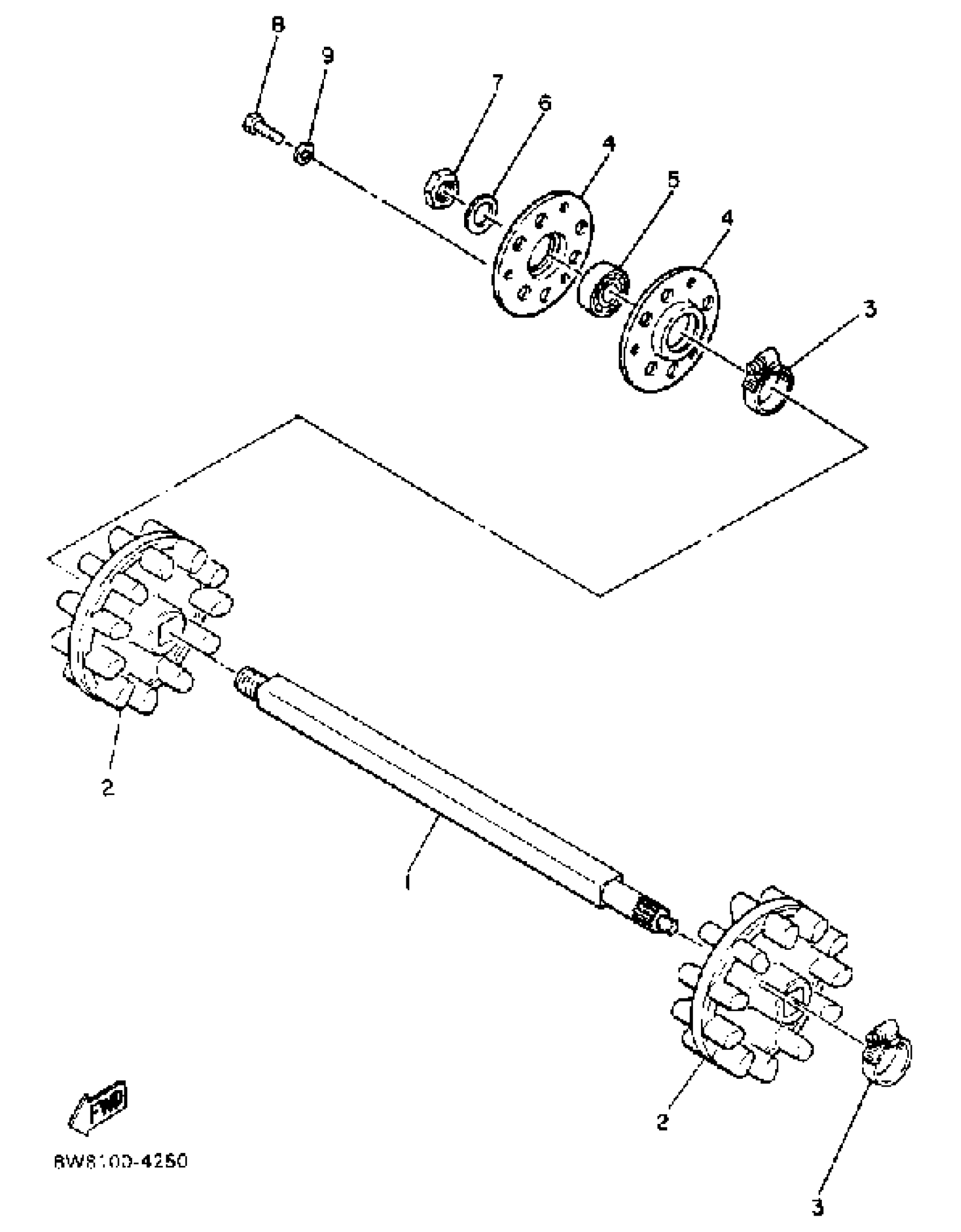

Yamaha EC340H (EXCEL III) 1984 TRACK DRIVE 1 Diagram

#

Description
Price

1

AXLE, FRONT (8W6-W4751-00)

8W6-47511-00-00

Unavailable

2

WHEEL, SPROCKET 1

8H9-47531-00-00

Unavailable

3

BAND (MADE IN CANADA)

90460-50079-00

Unavailable

4

HOUSING, FRONT AXLE

8F3-47551-00-00

Unavailable

5

BEARING(8AB)

93306-00444-00

$34.26

6

WASHER (853)

90208-20008-00

$6.59

7

NUT, HEXAGON (8F3)

90170-20211-00

$3.68

8

BOLT, HEXAGON

97013-08016-00

$1.24

9

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23
