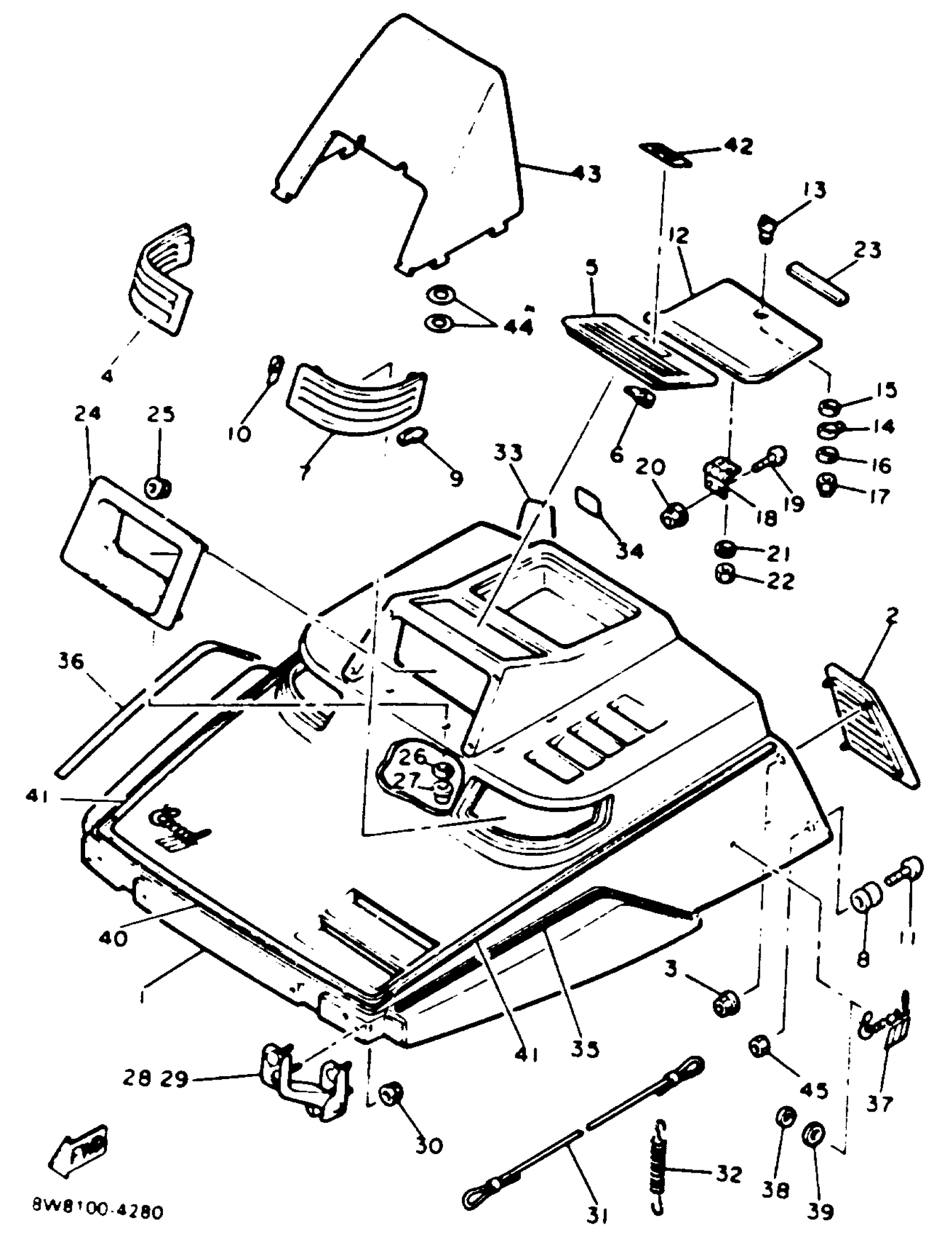

Yamaha EC340H (EXCEL III) 1984 SHROUD - WINDSHIELD Diagram

#

Description
Price

1

SHROUD ASSEMBLY

8W8-W7711-09-00

Unavailable

2

LOUVER 1

8W8-77131-00-00

Unavailable

3

NUT, FLANGE(3GM)

95707-05500-00

$8.49

4

LOUVER 3

8W8-77133-00-00

Unavailable

5

LOUVER 4

8W8-77134-00-00

Unavailable

6

CLIP

90468-05094-00

Unavailable

7

LOUVER 5

8W8-77109-00-00

Unavailable

8

. HOLDER, LATCH

8M6-77175-00-00

Unavailable

9

CLIP

90468-05137-00

Unavailable

10

CLIP

90468-05138-00

Unavailable

11

SCREW, BINDING

98907-06030-00

$8.49

12

COVER, LUGGAGE BOX

8W8-77392-00-00

Unavailable

13

KNOB

8L9-77324-00-00

Unavailable

14

LEVER, ARM FITTING

8K4-77328-00-00

Unavailable

15

WASHER, PLAIN(735)

90201-10119-00

Unavailable

16

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

17

NUT, NYLON

95707-05300-00

Unavailable

18

HINGE ASSEMBLY

8K4-77470-00-00

Unavailable

19

SCREW, PAN HEAD

90157-05M19-00

Unavailable

20

NUT, FLANGE(3GM)

95707-05500-00

$8.49

21

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

22

NUT, CAP

95307-05800-00

Unavailable

23

DAMPER 2

8W6-77374-00-00

Unavailable

24

BODY, HEADLIGHT

8W8-84311-00-00

Unavailable

25

NUT, FLANGE(3GM)

95707-05500-00

$8.49

26

WASHER, PLATE

90201-04027-00

Unavailable

27

NUT, SPRING (1L9)

90183-04012-00

Unavailable

28

HINGE ASSEMBLY

8W6-77140-00-00

Unavailable

29

HINGE ASSEMBLY 2

8W6-7714A-00-00

Unavailable

30

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

31

STOPPER,SHROUD

89X-77118-00-00

Unavailable

32

CLAMP,ROD

838-77159-00-00

Unavailable

33

LABEL, WARNING

8W6-77458-00-00

Unavailable

35

ORNAMENT 1

8W8-77163-00-00

Unavailable

36

ORNAMENT 2

8W8-77164-00-00

Unavailable

37

EMBLEM 1

8W8-77351-00-00

Unavailable

38

NUT SPRING 116283170100

90183-04005-00

Unavailable

39

WASHER PLATE 174283160000

90202-04003-00

Unavailable

40

INDICATOR 3

8A1-77743-00-00

Unavailable

40

STRIPE 1

8W8-77281-00-00

Unavailable

41

STRIPE 2

8W8-77282-00-00

Unavailable

42

EMBLEM 3

25G-21783-00-00

Unavailable

43

WINDSHIELD,ET340

8X1-77210-10-XX

Unavailable

44

FASTNER

82H-77223-00-00

Unavailable

45

NUT, FLANGE(7NB)

95780-06500-00

Unavailable
