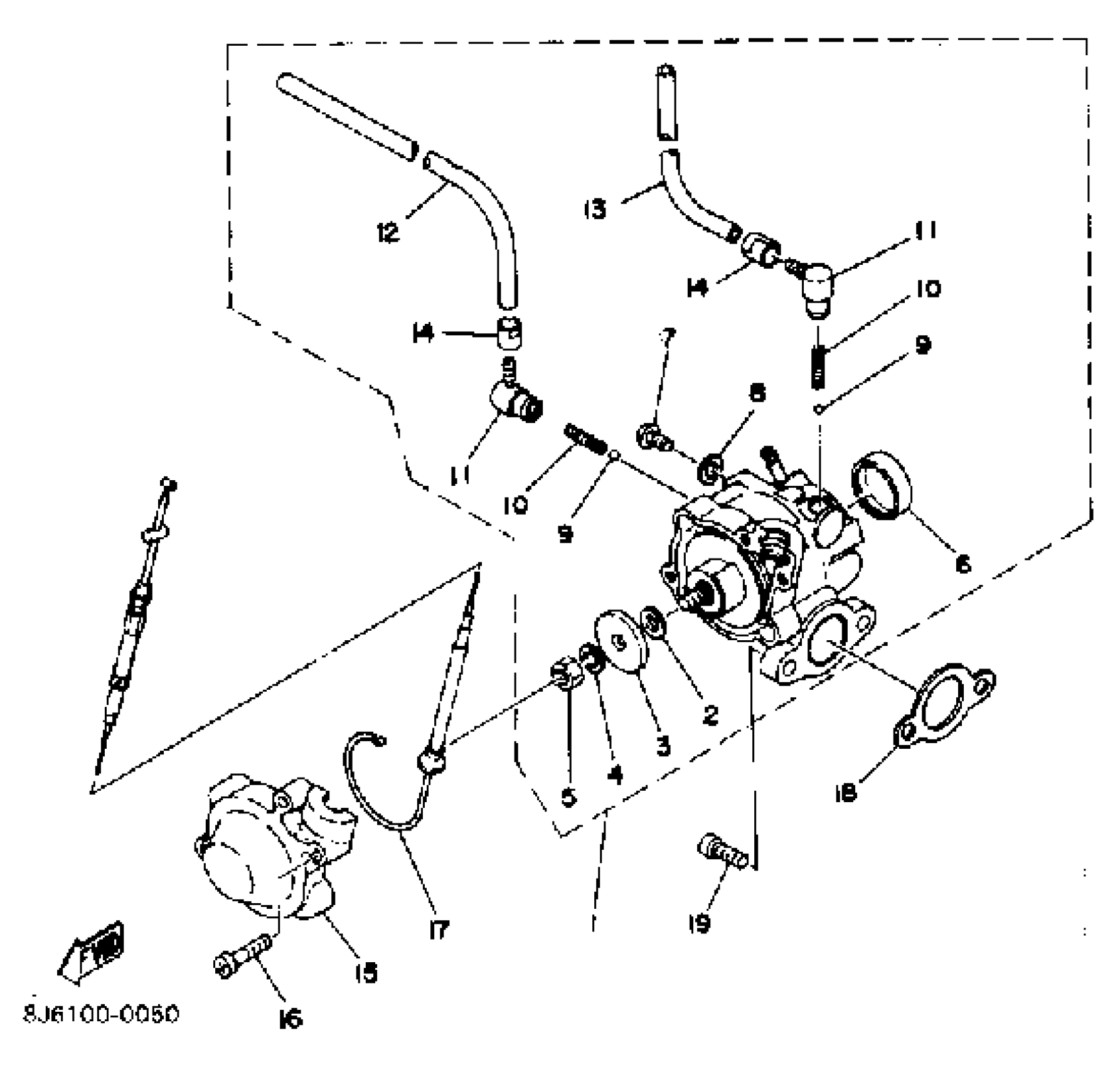

Yamaha EC340H (EXCEL III) 1984 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

8W8-13101-00-00

Unavailable

2

SHIM,PLUNGER

137-13137-00-10

$7.99

3

PLATE, ADJUSTING

137-13138-01-00

Unavailable

4

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

5

NUT, HEXAGON (663)

95380-05600-00

$8.49

6

. PLUG

90338-21100-00

Unavailable

7

SCREW, BIND

98980-04008-00

Unavailable

8

GASKET 137131870000

90430-04004-00

$9.49

9

BALL

93505-32002-00

$2.92

10

SPRING (278-13169-00)

90501-02018-00

$9.49

11

NOZZLE

353-13552-01-00

$9.99

12

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

13

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

14

CLIP (2A6)

90468-02025-00

$9.49

15

COVER, ADJUST PULLEY

8A5-13146-01-00

$17.49

16

SCREW, PAN HEAD

98507-04018-00

Unavailable

17

PUMP CABLE ASSEMBLY

8G8-26320-02-00

Unavailable

18

GASKET, PUMP CASE

126-13116-01-00

Unavailable

19

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable
