Description

Price

1

. FRAME

8W8-21910-00-00

Unavailable

2

HOOD 1

82A-21982-00-00

Unavailable

3

HOOD 2

8Y3-21983-70-00

Unavailable

4

. BRACKET, BATTERY

8W8-2199G-00-00

Unavailable

5

RIVET, BLIND (8H4)

90267-48053-00

$3.61

6

RIVET, BLIND (8J5)

90267-48057-00

$8.49

7

WASHER

90201-04015-00

Unavailable

8

WASHER, PLATE (8M6)

90201-047A2-00

$3.35

9

BODY, LATCH 1

8M6-77171-00-00

Unavailable

10

COLLAR (420)

90387-06241-00

$8.49

11

WASHER, PLATE 8221447500

90201-06057-00

$5.60

12

SCREW, BINDING

98907-06025-00

$8.49

13

EMBLEM 4

8W8-77354-00-00

Unavailable

14

EMBLEM 5

(8W8-77355-00-00)

Unavailable

15

COVER,1

85T-2198F-00-00

Unavailable

16

SCREW, BINDING

98907-06012-00

Unavailable

17

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

18

ORNAMENT 3

8W8-77169-00-00

Unavailable

19

ORNAMENT 4

8W8-77113-00-00

Unavailable

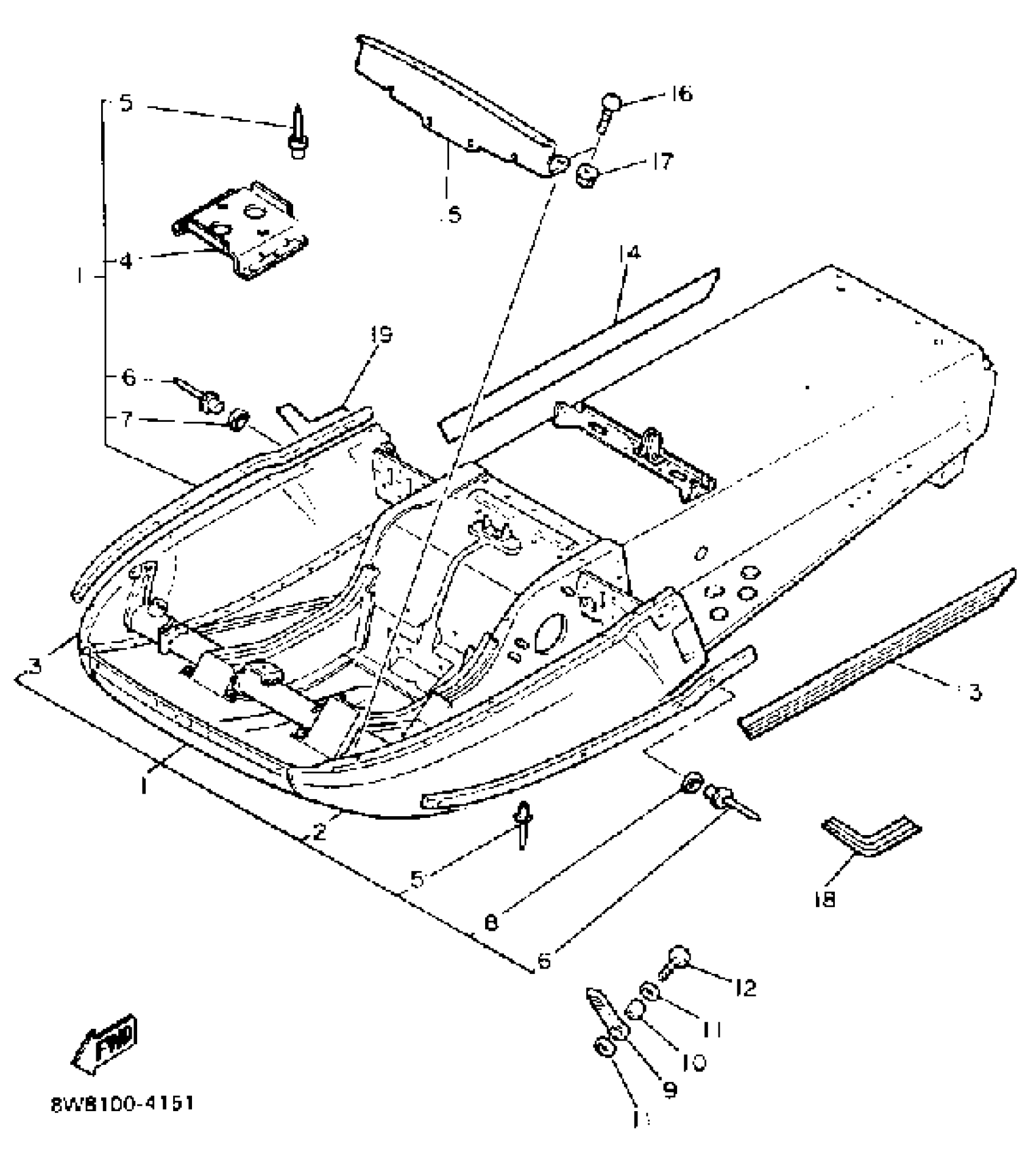

Yamaha EC340H (EXCEL III) 1984 FRAME Diagram

. FRAME

HOOD 1

HOOD 2

. BRACKET, BATTERY

RIVET, BLIND (8H4)

RIVET, BLIND (8J5)

WASHER

WASHER, PLATE (8M6)

BODY, LATCH 1

COLLAR (420)

WASHER, PLATE 8221447500

SCREW, BINDING

EMBLEM 4

EMBLEM 5

COVER,1

SCREW, BINDING

NUT, FLANGE(7NB)

ORNAMENT 3

ORNAMENT 4
