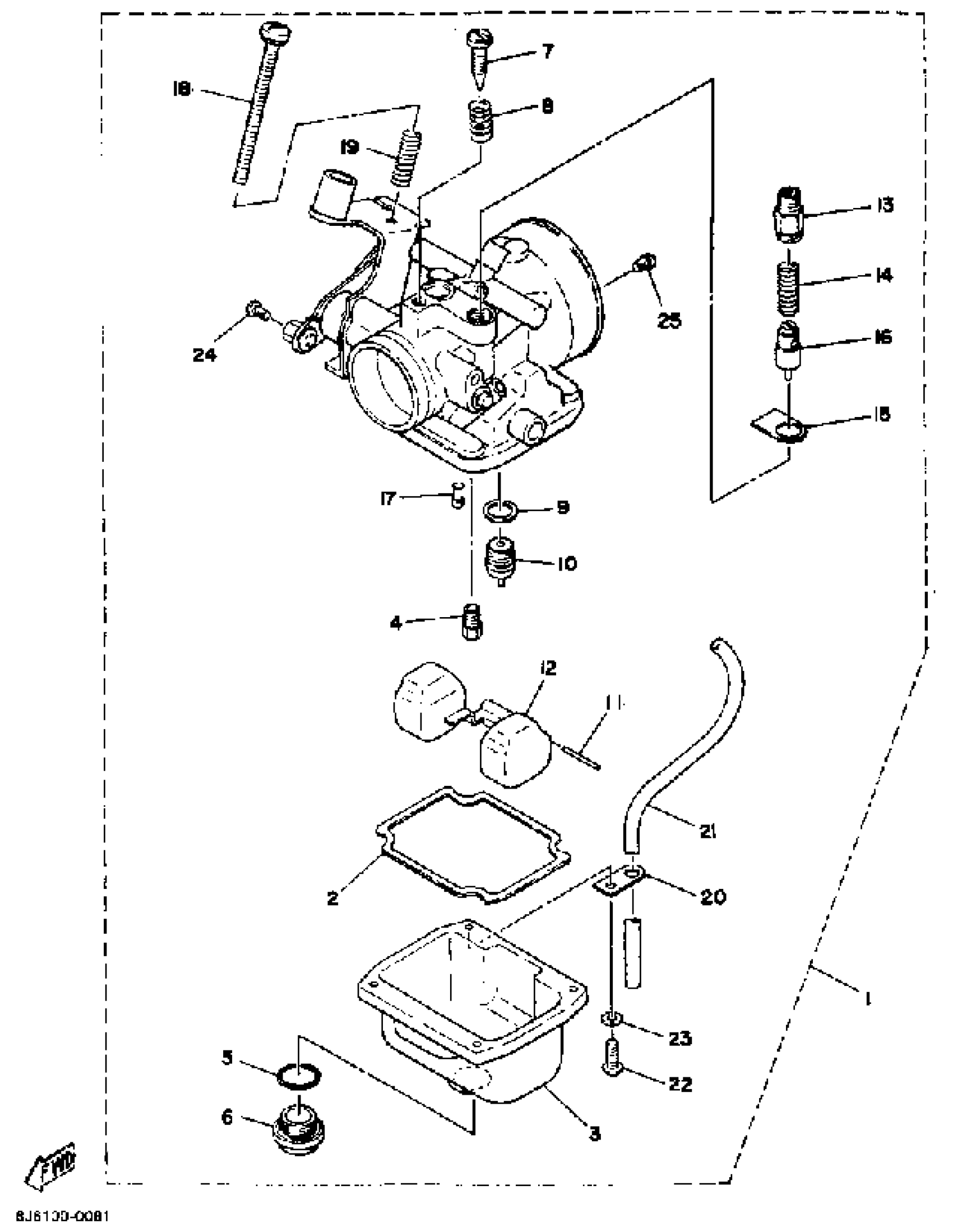

Yamaha EC340H (EXCEL III) 1984 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASY 1

8J6-14101-01-00

Unavailable

2

. GASKET, FLOAT CHMBR

8G8-14184-00-00

Unavailable

3

BODY, FLOAT CHMBR 1

(8H5-14181-00-00)

Unavailable

4

JET, MAIN #200

137-14143-40-A1

$13.49

4

JET, MAIN #210

137-14143-42-A1

Unavailable

4

JET, MAIN #220

137-14143-44-A1

$11.99

4

JET, MAIN #240

137-14143-48-A1

$13.49

5

O-RING (541)

558-14147-00-00

$9.99

6

PLUG, SCREW

500-14115-00-00

$29.99

7

. SCREW, AIR ADJUSTING

8G8-14123-00-00

Unavailable

8

. SPRING, AIR ADJUSTING

137-14134-00-00

Unavailable

9

WASHER,VALVE SEAT

239-14195-00-00

Unavailable

10

VALVE SEAT ASSY

8H5-14190-15-00

$68.99

11

PIN, FLOAT

537-14186-00-00

$7.99

12

. FLOAT

8H5-14185-00-00

Unavailable

13

CAP, PLUNGER

8G8-14174-00-00

Unavailable

14

SPRING, PLUNGER

127-14135-00-00

Unavailable

15

. PLATE, STARTER LVR

8G8-14178-00-00

Unavailable

16

PLUNGER, STARTER

8G8-14171-00-00

Unavailable

17

. JET, PILOT (#75)

193-14142-75-00

Unavailable

18

. UNAVAILABLE IN PRICE BOOK (8H5-14122-00)

98580-05560-00

Unavailable

19

SPRING, AIR ADJUSTING

(849-14134-00-00)

Unavailable

20

. PLATE

313-14146-00-00

Unavailable

21

HOSE

89A-14987-00-00

Unavailable

22

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

25

JET, AIR (#1.0)

239-14172-10-00

Unavailable
