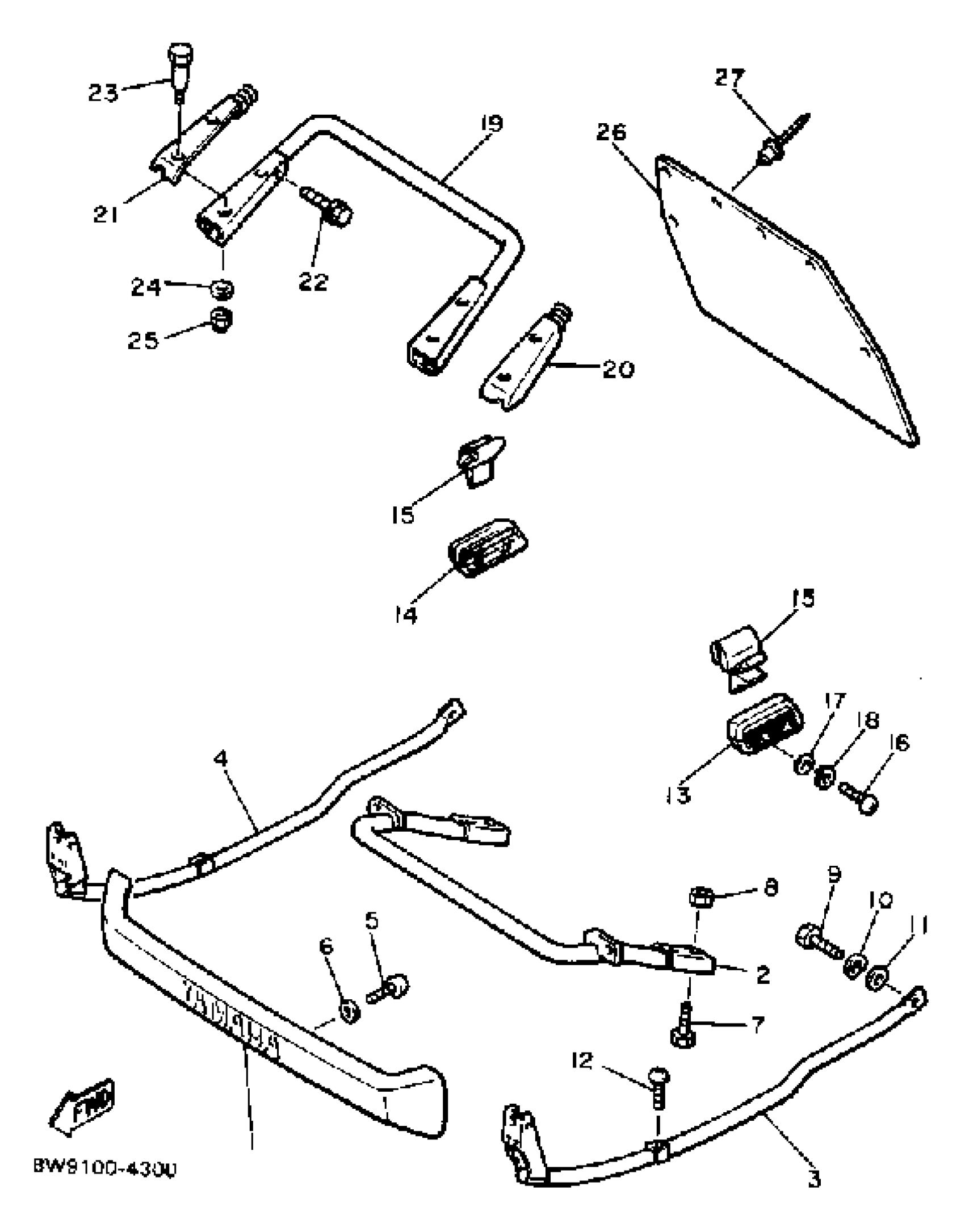

Yamaha EC340H (EXCEL III) 1984 BUMPER Diagram
#
Description
Price
1
BUMPER, FRONT 1
8W6-77511-00-00
Unavailable
2
BUMPER, FRONT 2
8W6-77512-00-00
Unavailable
3
BUMPER, FRONT 3
8W6-77513-00-00
Unavailable
4
BUMPER, FRONT 4
8W6-77514-00-00
Unavailable
5
SCREW, PANHEAD TAPPING (J20)
97780-60116-00
$2.70
6
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
7
BOLT
97017-08035-00
Unavailable
8
NUT, U
95617-08100-00
$9.49
9
BOLT, HEXAGON
97017-08016-00
$8.49
10
WASHER(JN5)
92907-08100-00
$8.49
11
WASHER(6TA)
92907-08600-00
$3.03
12
SCREW, BINDING
98907-06030-00
$8.49
13
END, BUMPER
8W6-77523-00-00
Unavailable
14
END, BUMPER
8W6-77524-00-00
Unavailable
15
BUSH, RUBBER 2
8W6-77516-00-00
Unavailable
16
SCREW, PAN
98507-06040-00
Unavailable
17
WASHER(6TA)
92907-06600-00
Unavailable
18
WASHER, SPRING
92907-06100-00
Unavailable
19
BUMPER, REAR 1
8W6-77541-00-00
Unavailable
20
BUMPER, REAR 2
8W6-77542-00-00
Unavailable
21
BUMPER, REAR 3
8W6-77543-00-00
Unavailable
22
BOLT, FLANGE
95817-08012-00
Unavailable
23
BOLT
8W6-77519-00-00
Unavailable
24
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
25
NUT, CAP
95307-05800-00
Unavailable
26
FLAP
8V9-77595-00-00
Unavailable
27
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
