1983 Yamaha EC340G Track Suspension 1 Diagram

← All diagrams

Find the part on the Track Suspension 1 diagram for your 1983 Yamaha EC340G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

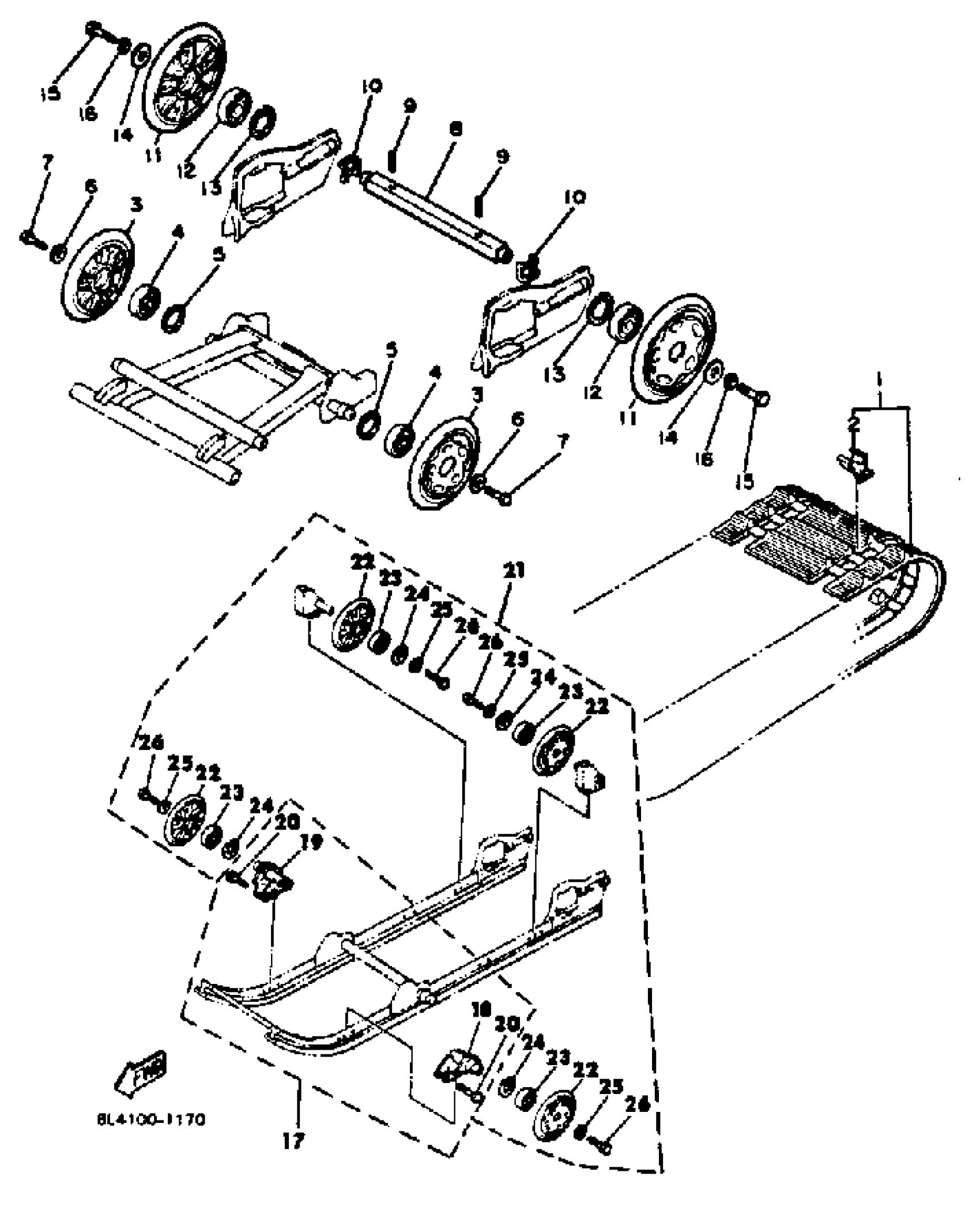

1983 Yamaha EC340G Track Suspension 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASY

8J6-47110-02-00

1
Out of stock

2

METAL, SLIDE

8A5-47115-00-00

1
Out of stock

3

SUSPENTION WHEEL COMP

87M-47320-00-00

1

$77.13

In stock

4

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

5

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

6

WASHER (8G1)

90201-08681-00

1

$6.22

In stock

7

BOLT (8K2)

90109-08559-00

1

$6.92

In stock

8

AXLE, REAR

8E3-47521-00-00

—

$75.78

In stock

9

PIN, SPRING (663)

91690-40040-00

1

$3.92

In stock

10

WASHER

8E3-47384-00-00

—

$4.48

In stock

11

WHEEL GUIDE COMP.

8L4-47530-00-00

1
Out of stock

12

1

$33.86

In stock

13

CIRCLIP(48Y)

99009-47500-00

1

$7.66

In stock

14

WASHER, PLATE (8M2)

90201-083A8-00

1

$2.57

In stock

15

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

17

BRACKET KIT (FRT) (ONLY)

8N5-47000-10-00

1
Out of stock

18

BRACKET 4

8L4-47418-00-00

1
Out of stock

19

. BRACKET 7

8L4-47419-00-00

1
Out of stock

20

BOLT(21W)

97017-06035-00

—

$2.91

In stock

21

SUS.WHEEL KIT

8N5-47000-00-00

1
Out of stock

22

SUSPENTION WHEEL COMP

87M-47320-00-00

1

$77.13

In stock

23

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

24

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

25

WASHER (8G1)

90201-08681-00

1

$6.22

In stock

26

BOLT (8K2)

90109-08559-00

1

$6.92

In stock
