1983 Yamaha EC340G Speedometer - Gear Unit Diagram

← All diagrams

Find the part on the Speedometer - Gear Unit diagram for your 1983 Yamaha EC340G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

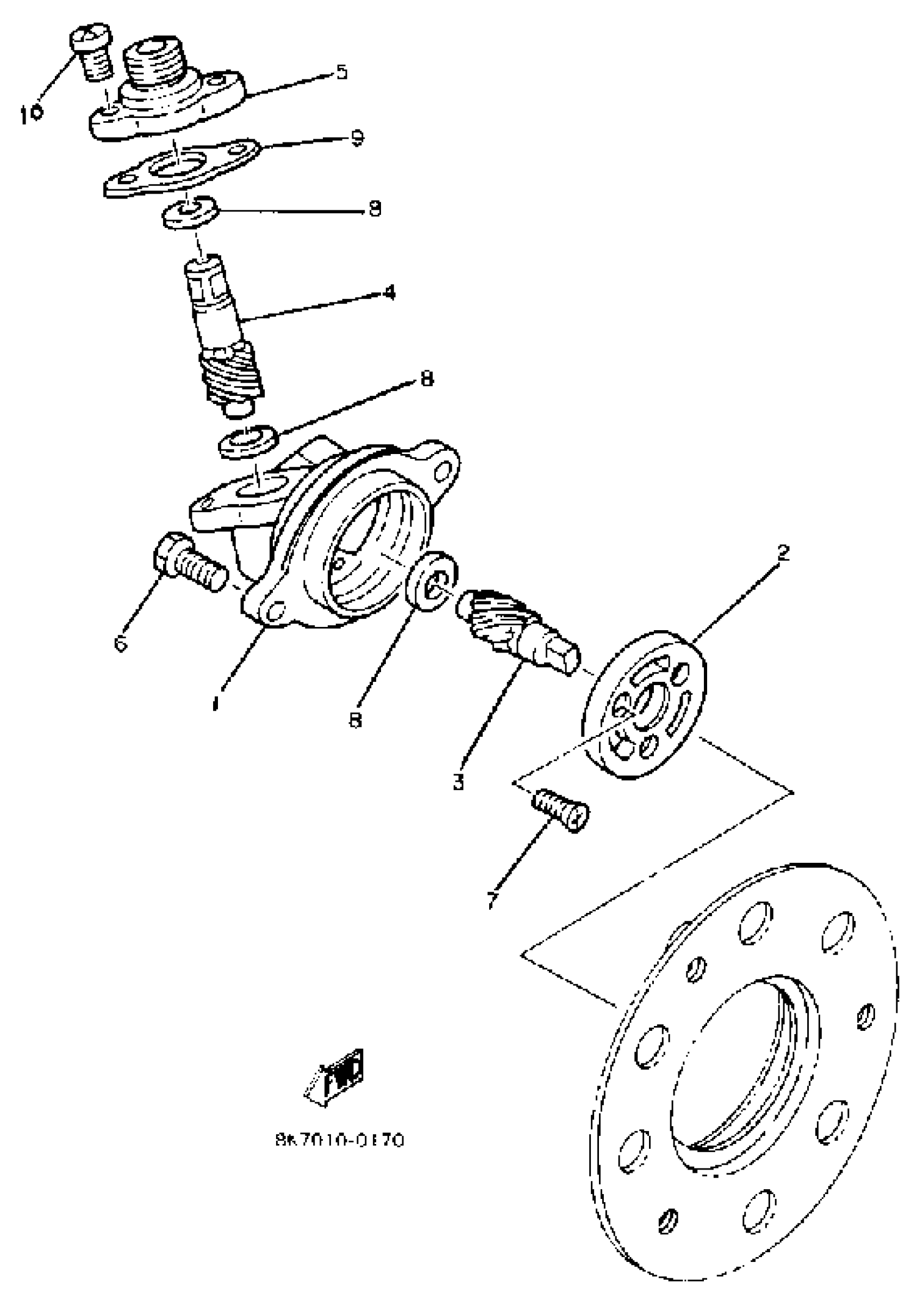

1983 Yamaha EC340G Speedometer - Gear Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING

8E6-47711-10-00

1
Out of stock

2

JOURNAL

853-47712-10-00

1
Out of stock

3

GEAR, DRIVE

810-47731-11-00

1
Out of stock

4

GEAR, DRIVEN (810-47741-10)

810-47741-11-00

1
Out of stock

5

COVER, METER HOUSING

8E3-47721-10-00

—

$18.34

In stock

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

7

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

8

SHIM

810-47717-10-00

1
Out of stock

9

GASKET

810-47727-11-00

1
Out of stock

10

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock
