1983 Yamaha EC340G C - D - I - Magneto Diagram

← All diagrams

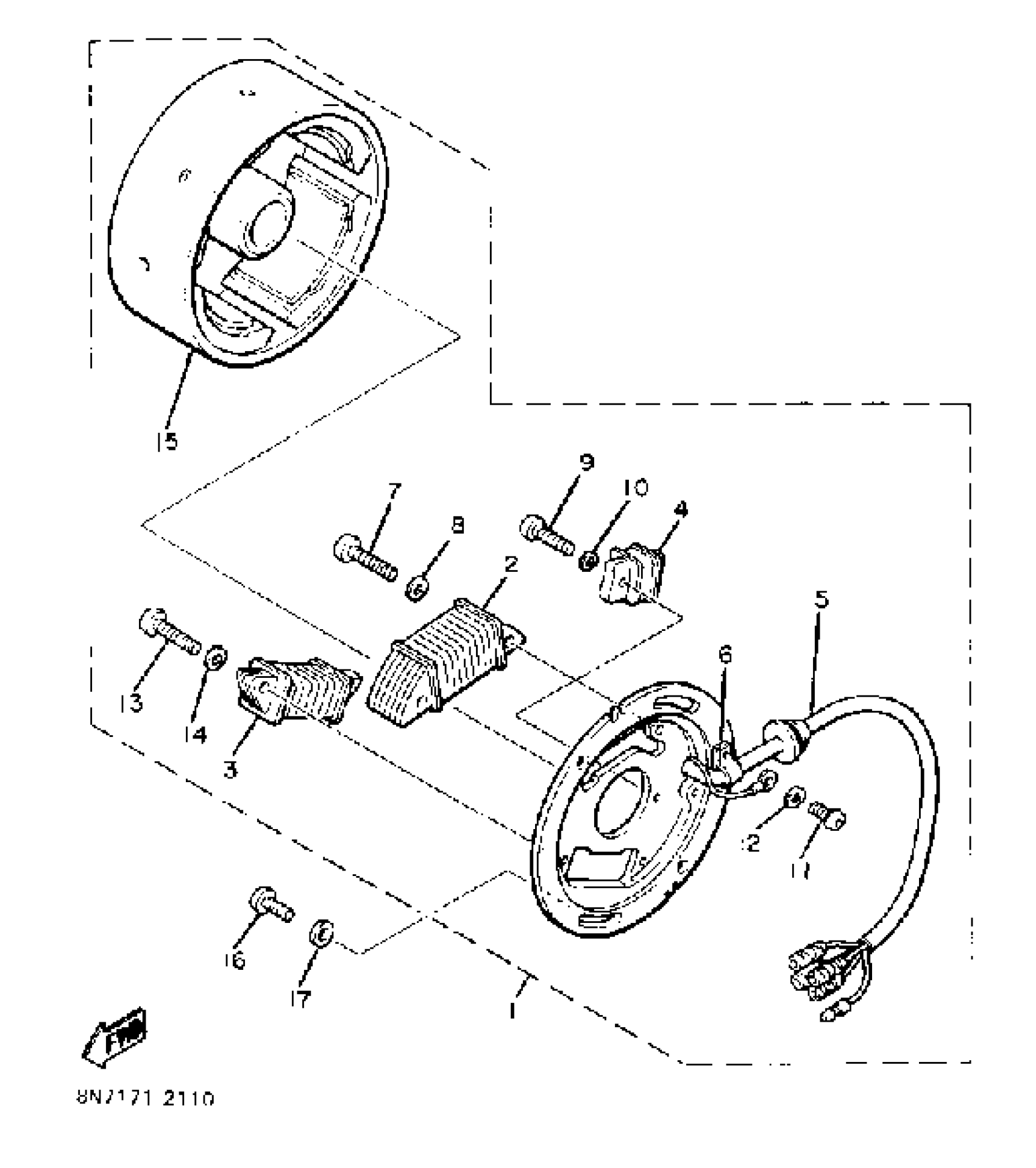

Find the part on the C - D - I - Magneto diagram for your 1983 Yamaha EC340G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Yamaha EC340G C - D - I - Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

8R5-85500-20-00

1
Out of stock

2

. COIL SOURCE 1

8N4-85511-20-00

1
Out of stock

3

. COIL, LIGHTING 1

8H8-85513-20-00

1
Out of stock

4

. COIL, PULSER (8N5-85580-20)

82M-85580-20-00

1
Out of stock

5

LEAD WIRE ASSEMBLY

(8N7-85515-20-00)

1
Out of stock

6

CLAMP, LEAD

104-81328-20-00

1

$6.31

In stock

7

SCREW, PAN

98507-05035-00

1

$6.69

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

SCREW, PAN HEAD

98507-04018-00

1
Out of stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

13

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

. ROTOR ASSEMBLY (8K1-85550-20)

8J9-85550-20-00

1
Out of stock

16

SCREW, BIND(J39)

98980-06014-00

—

$5.66

In stock

17

WASHER, PLATE 6261117600

90201-06043-00

—
Out of stock
