1983 Yamaha EC340G Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1983 Yamaha EC340G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

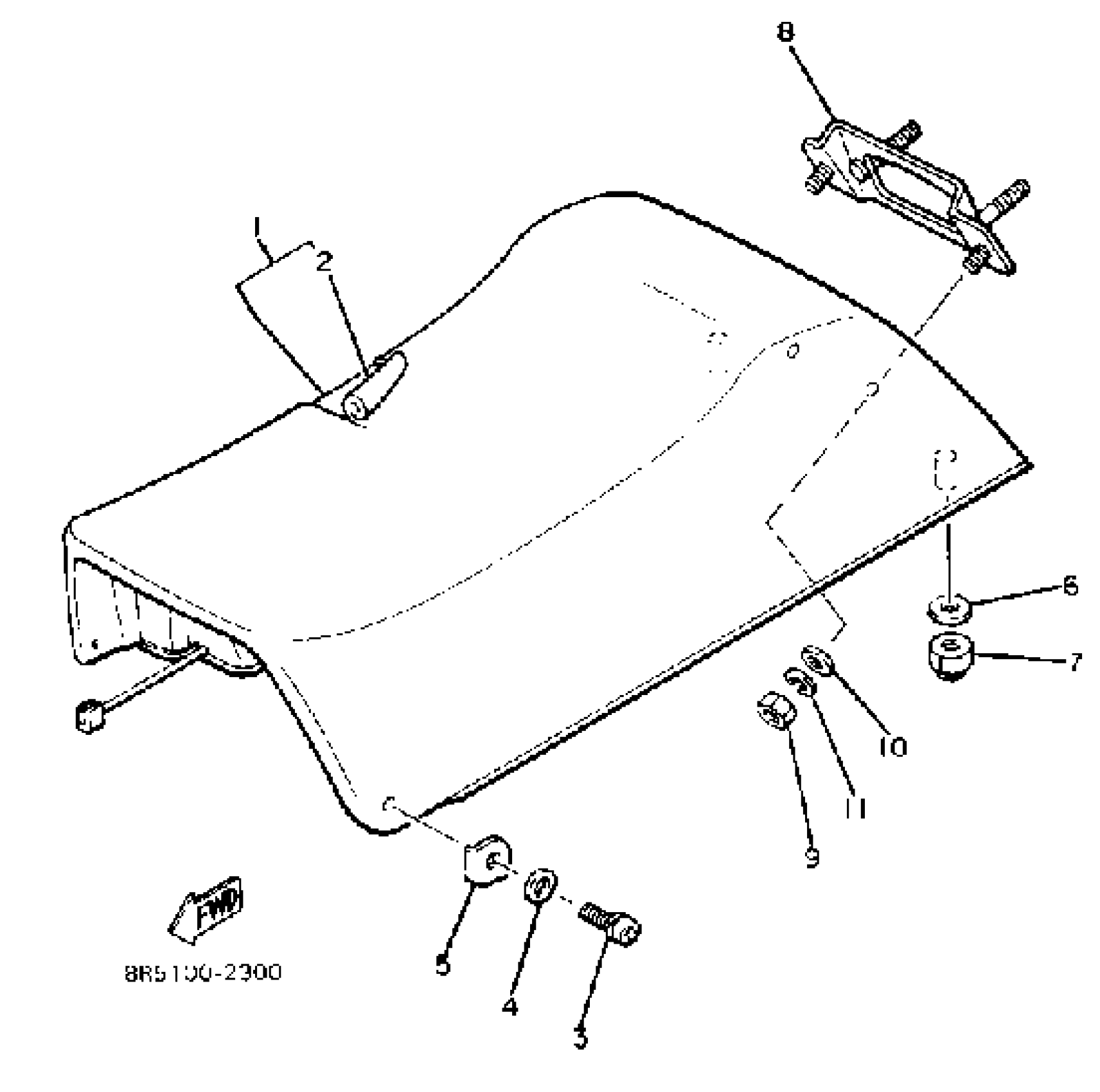

1983 Yamaha EC340G Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

8G8-24710-01-00

1
Out of stock

2

. COVER, SINGLE SEAT

8G8-24711-00-00

1
Out of stock

3

SCREW, WITH WASHER

90159-06019-00

1
Out of stock

4

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock

5

WASHER, LOCK

90215-14147-00

1
Out of stock

6

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

7

NUT, NYLON

95717-08300-00

1

$2.57

In stock

8

BRACKET, TAILLIGHT

8G8-84519-00-00

1
Out of stock

9

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
