1983 Yamaha EC340G Guard - Luggage BOX Diagram

← All diagrams

Find the part on the Guard - Luggage BOX diagram for your 1983 Yamaha EC340G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

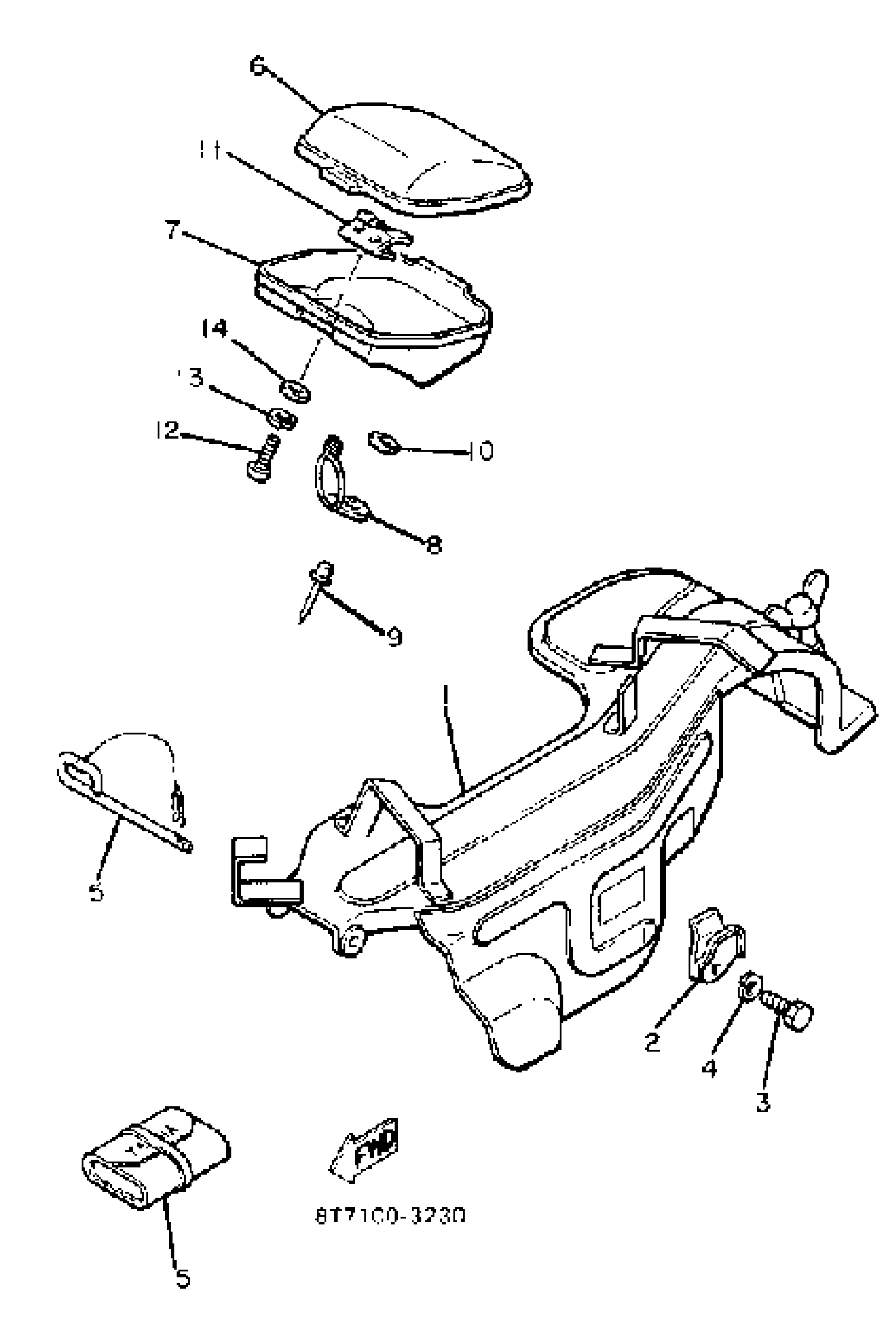

1983 Yamaha EC340G Guard - Luggage BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUARD, DRIVE

8H9-77311-00-00

1
Out of stock

2

PROTECTOR, DRIVE

8F3-77323-00-00

1
Out of stock

3

BOLT, HEXAGON

97017-08016-00

1
Out of stock

4

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

5

SHAFT

8F3-77327-00-00

1
Out of stock

6

LID

1T4-2177E-00-00

1
Out of stock

7

BOX

1T4-2177A-00-00

1
Out of stock

8

HOOK 1

8K4-77386-00-00

1
Out of stock

9

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

10

WASHER, PLATE

90201-04027-00

1
Out of stock

11

BRACKET, SPARK PLUG

8T5-77376-00-00

1
Out of stock

12

SCREW, PAN

98507-06014-00

1

$6.18

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

15

TOOL KIT

85L-28100-01-00

1

$70.22

In stock
