Description

Price

1

LEVER HOLDER ASSY (LEFT)

8R4-W8291-02-00

Unavailable

2

LEVER L

803-83912-00-38

Unavailable

3

LEVER LOCK ASSY

8E3-W8393-01-00

Unavailable

4

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

5

SCREW,PANHEAD (EG9)

98580-05540-00

$8.49

6

NUT, NYLON

95707-05300-00

$4.24

7

. SCREW, TAPPING

97780-30312-00

Unavailable

8

. WASHER, PLAIN

92990-05200-00

Unavailable

9

BEAM SWITCH ASSY

8H8-83950-01-00

$79.99

10

STOP SWITCH ASSY

8R4-82530-00-00

$36.99

11

SWITCH, HANDLE 1

8E3-83976-02-00

$100.99

12

CAP 1

8E3-83956-01-00

$8.99

13

STOP SWITCH ASSY

8H8-82550-01-00

$90.99

14

NUT

8H8-82557-00-00

$2.97

15

CAP, SWITCH

8H8-82552-09-00

$48.99

16

BAND, SWITCH CORD

437-83936-01-00

Unavailable

17

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

18

NUT, NYLON

95707-05300-00

$4.24

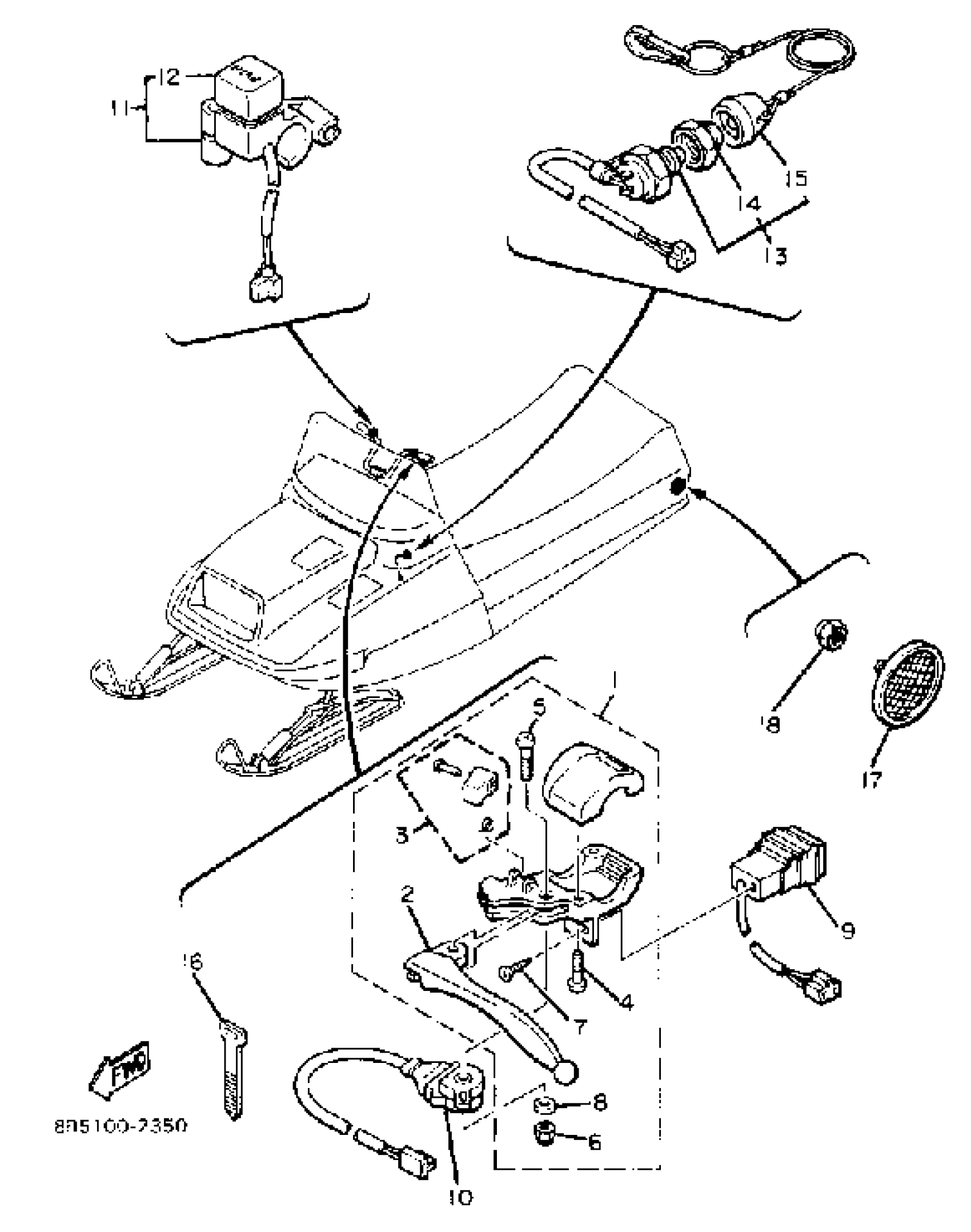

Yamaha EC340G 1983 ELECTRICAL 2 Diagram

LEVER HOLDER ASSY (LEFT)

LEVER L

LEVER LOCK ASSY

SCREW, PAN HEAD(4MY)

SCREW,PANHEAD (EG9)

NUT, NYLON

. SCREW, TAPPING

. WASHER, PLAIN

BEAM SWITCH ASSY

STOP SWITCH ASSY

SWITCH, HANDLE 1

CAP 1

STOP SWITCH ASSY

NUT

CAP, SWITCH

BAND, SWITCH CORD

REFLECTOR, REAR 1

NUT, NYLON
