1981 Yamaha EC340E Starting Motor Diagram

← All diagrams

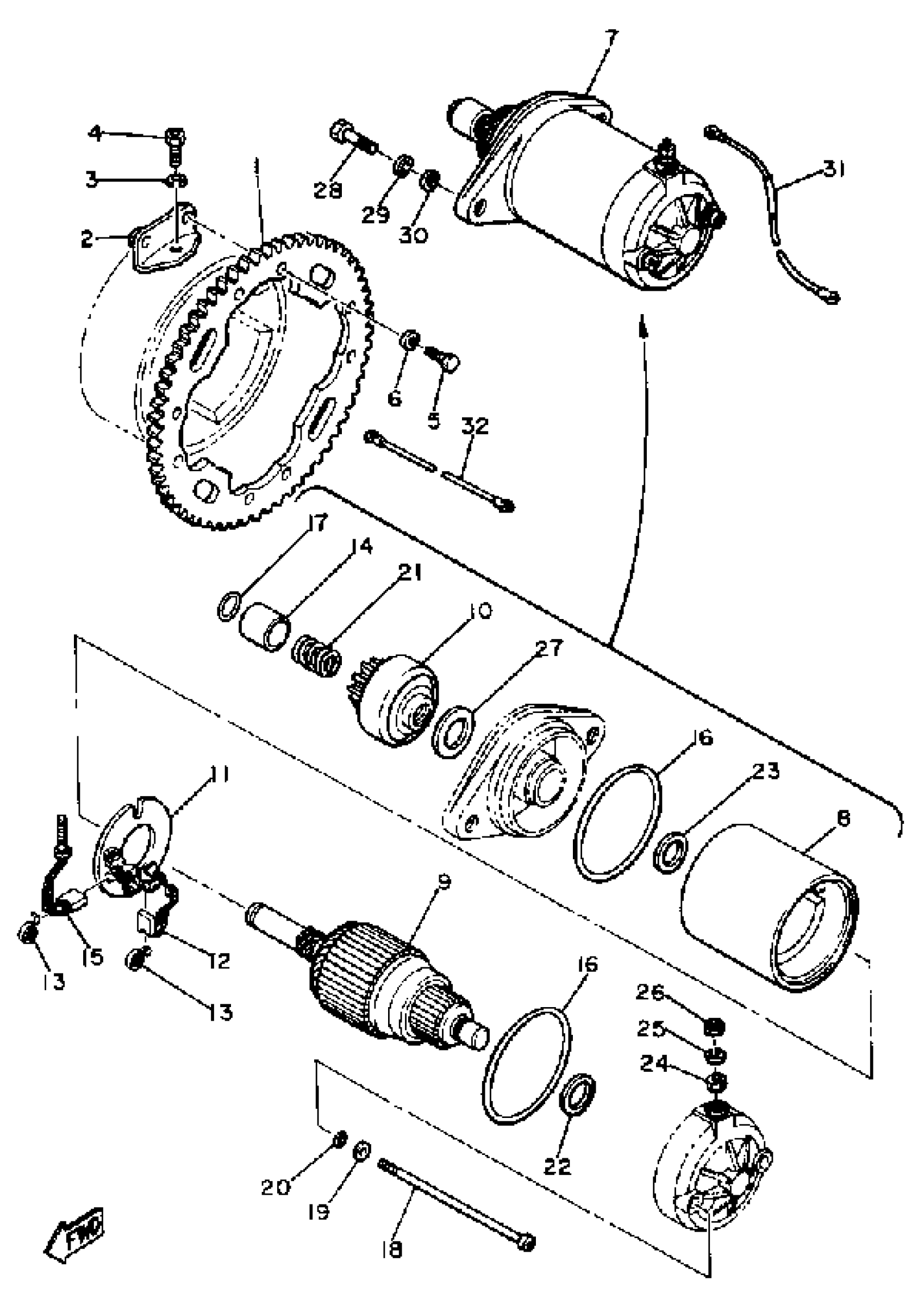

Find the part on the Starting Motor diagram for your 1981 Yamaha EC340E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha EC340E Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, RING

8J4-81891-01-00

1
Out of stock

2

STAY, RING GEAR

8J4-81895-01-00

1
Out of stock

3

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

4

BOLT, HEX SKT HEADSOCKET HEAD

90110-08028-00

1
Out of stock

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

STARTING MOTOR ASSY

8BB-81800-02-00

—

$788.91

In stock

8

STATOR ASSEMBLY

(8L6-81810-50-00)

1
Out of stock

9

. ARMATURE ASSEMBLY

8L6-81850-50-00

1
Out of stock

10

. CLUTCH, OVER RUN

8L6-81832-50-00

1
Out of stock

11

BRUSH HOLDER ASSY

8L6-81840-51-00

1

$58.95

In stock

12

BRUSH SUB-ASSY, STARTOR

2JN-81818-50-00

1

$23.83

In stock

13

SPRING, BRUSH

8L6-81813-50-00

—

$3.77

In stock

14

RING, STOP

8L6-81833-50-00

—

$22.69

In stock

15

. BRUSH 1

8L6-81811-50-00

1
Out of stock

16

O-RING

4H7-81844-00-00

—

$21.05

In stock

17

RING

8L6-81834-50-00

—

$3.37

In stock

18

BOLT

4H7-81826-01-00

—

$11.00

In stock

19

. WASHER 2

8L6-81824-50-00

1
Out of stock

20

O-RING

8L6-81847-50-00

—

$3.05

In stock

21

SPRING, LEVER

8L6-81836-50-00

—

$3.63

In stock

22

WASHER 1

4H7-81843-50-00

—

$3.74

In stock

23

WASHER

8L6-81835-50-00

—

$3.05

In stock

24

NUT

4H7-81872-00-00

—

$4.86

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

NUT(650)

95380-06700-00

—

$6.17

In stock

27

PLATE

(8L6-81845-00-00)

1
Out of stock

28

BOLT

97014-08040-00

—

$5.26

In stock

29

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

30

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

31

WIRE, LEAD

8J4-82117-01-00

1
Out of stock

32

WIRE, MINUS LEAD

8J4-82116-01-00

1
Out of stock
