1981 Yamaha EC340E Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1981 Yamaha EC340E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

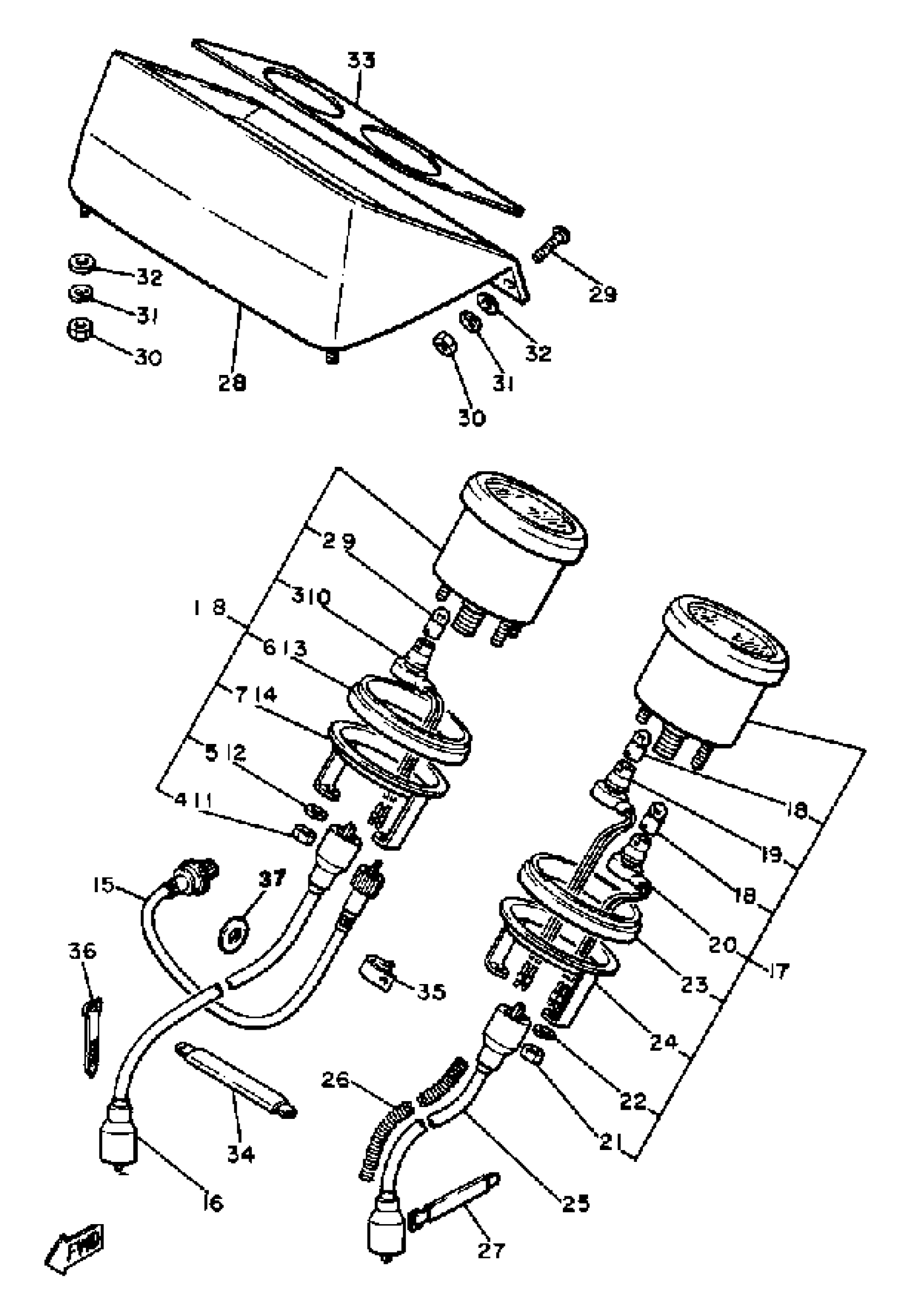

1981 Yamaha EC340E Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

87R-83510-40-00

—

$132.12

In stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(861-83536-40-00)

1
Out of stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

. UNAVAILABLE IN PRICE BOOK

8G6-82523-00-00

1
Out of stock

7

BRACKET, METER

(8K1-83519-00-00)

1
Out of stock

8

SPEEDOMETER ASSEMBLY

(8K1-83510-20-00)

1
Out of stock

9

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

10

SOCKET, METER

(861-83536-40-00)

1
Out of stock

11

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

14

BRACKET, METER

(8K1-83519-00-00)

1
Out of stock

15

TRP METER CBLE ASSEMBLY

(8K1-83603-00-00)

1
Out of stock

16

SPEEDOMETER CABLE

8F3-83550-01-00

1
Out of stock

17

TACHOMETER ASSEMBLY

8R5-83540-00-00

1
Out of stock

18

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

19

SOCKET, METER

(861-83536-40-00)

1
Out of stock

20

SOCKET, METER

(8L6-83536-00-00)

1
Out of stock

21

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

22

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

23

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

24

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

25

TACHOMETER CABLE

8G6-83560-01-00

1
Out of stock

26

SOCKET, OIL

(8L6-83557-00-00)

1
Out of stock

27

BAND

341-26397-01-00

1
Out of stock

28

PANEL,METER

8G5-83611-00-00

—
Out of stock

29

SCREW, BINDING

98907-05020-00

—

$6.18

In stock

30

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

31

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

32

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

33

COVER, METER PANEL

8L6-83612-00-00

1
Out of stock

34

CLAMP

90465-05128-00

1
Out of stock

35

CLAMP

90465-06013-00

1
Out of stock

36

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

37

WASHER, PLATE

90202-14122-00

1
Out of stock
