Description

Price

1

TANK, OIL

8G8-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

HOSE

91A30-07036-00

Unavailable

5

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

6

HOSE

90446-09015-00

Unavailable

7

CLAMP

90464-25267-00

$7.49

8

CLIP (8L2)

90467-08017-00

$10.49

9

CLIP (8A1)

90467-09026-00

$3.28

10

CLIP (8J7)

90467-11009-00

$10.49

11

HOUSING STRAINER ASSY

8G8-13410-00-00

$28.99

12

BOLT, HEXAGON

97013-08020-00

$1.16

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

WASHER, PLAIN

92990-08200-00

Unavailable

15

CLAMP (8M1)

90464-30040-00

$8.49

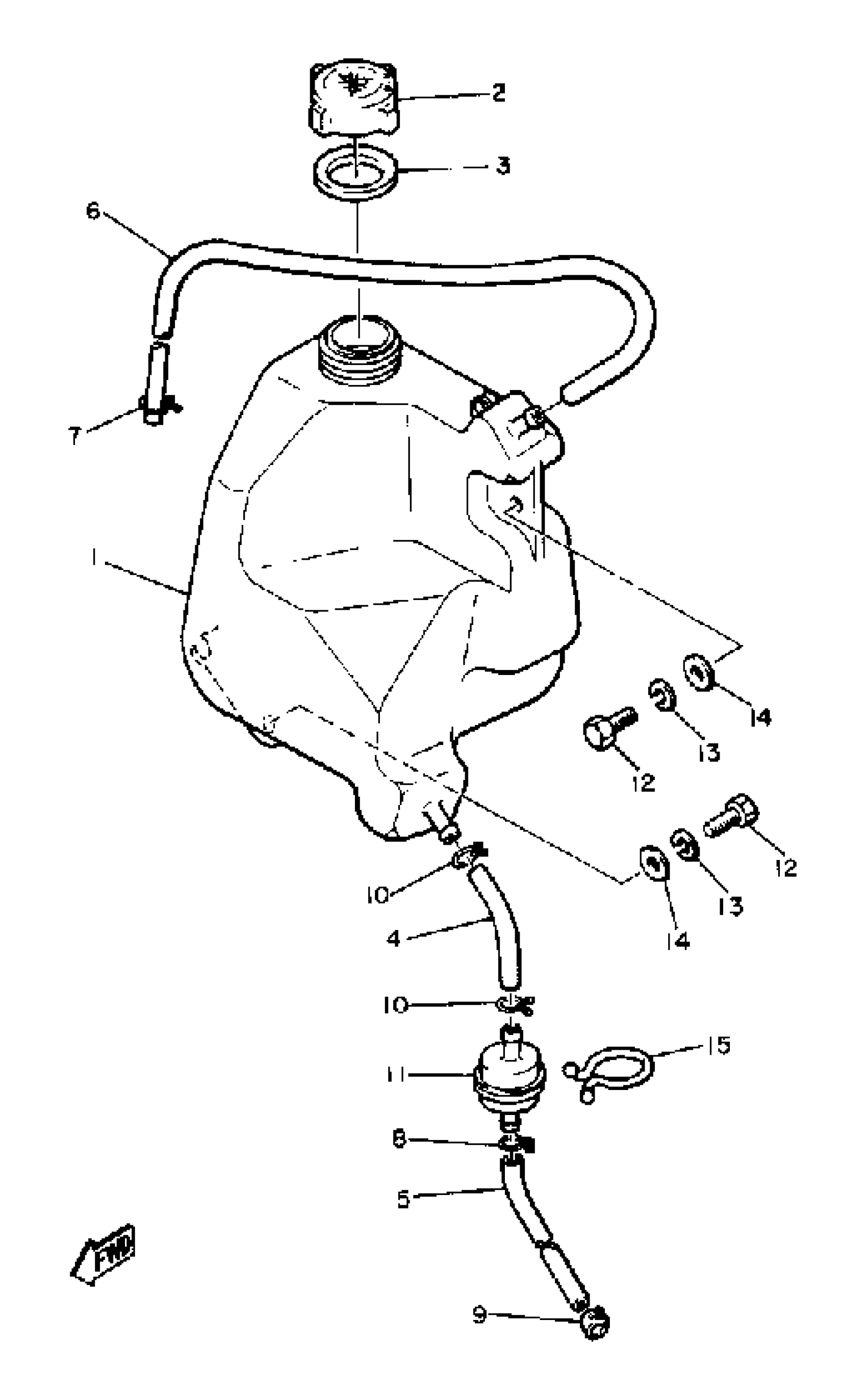

Yamaha EC340E 1981 OIL TANK Diagram

TANK, OIL

BODY, CAP

GASKET, TANK (867)

HOSE

TUBE, FLEXIBLE VINYL(8AK)

HOSE

CLAMP

CLIP (8L2)

CLIP (8A1)

CLIP (8J7)

HOUSING STRAINER ASSY

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

WASHER, PLAIN

CLAMP (8M1)
