1981 Yamaha EC340E Fuel Tank Diagram

← All diagrams

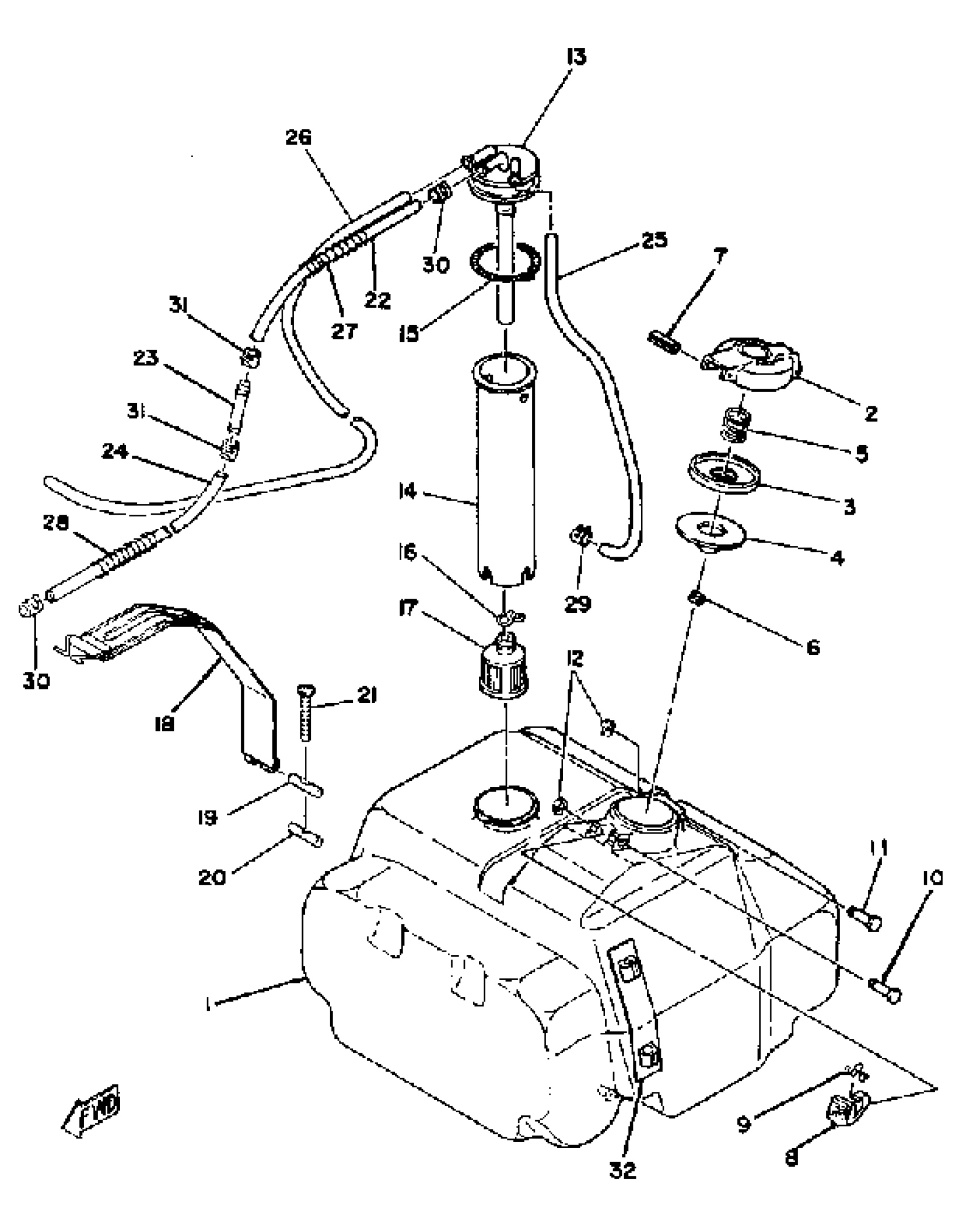

Find the part on the Fuel Tank diagram for your 1981 Yamaha EC340E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha EC340E Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

8G8-24111-00-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

DISK,CAP

813-24613-01-00

1

$18.71

In stock

4

GASKET, CAP 1

89A-24641-00-00

1

$9.35

In stock

5

SPRING, CAP

90501-20130-00

1

$6.80

In stock

6

PIN, SPRING

91690-30016-00

1

$5.88

In stock

7

PIN, SPRING

91609-25032-00

1

$1.83

In stock

8

HOOK

83M-24628-00-00

1

$19.68

In stock

9

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

10

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

11

PIN (813)

90249-03017-00

1

$2.25

In stock

12

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

13

PIPE, SUCTION 1

8G8-24335-00-00

1
Out of stock

14

PIPE, SUCTUIN

813-24336-00-00

—
Out of stock

15

SPRING, TENSION (8R4)

90506-06261-00

1

$6.94

In stock

16

CLIP (8J7)

90467-11009-00

—

$7.55

In stock

17

FILTER ASSY

8H5-24560-00-00

1

$11.47

In stock

18

BAND, TNK FITTING 1

(883-24173-00-00)

1
Out of stock

19

CLAMP

806-24135-00-00

—

$3.20

In stock

20

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

21

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

1
Out of stock

22

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

—

$19.82

In stock

23

PIPE, JOINT 1

8Y4-24376-00-00

1
Out of stock

24

UNAVAILABLE IN PRICE BOOK

90556-09062-00

1
Out of stock

25

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

—

$16.89

In stock

26

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

27

PROTECTOR, PIPE

8F3-24326-00-00

1
Out of stock

28

SPRING, COMPRESSION(7MX)

90501-084J0-00

—

$5.86

In stock

29

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

30

CLIP

90467-11028-00

1

$5.14

In stock

31

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

32

GAUGE, FUEL

(8G8-24179-00-00)

1
Out of stock
