1981 Yamaha EC340E Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1981 Yamaha EC340E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

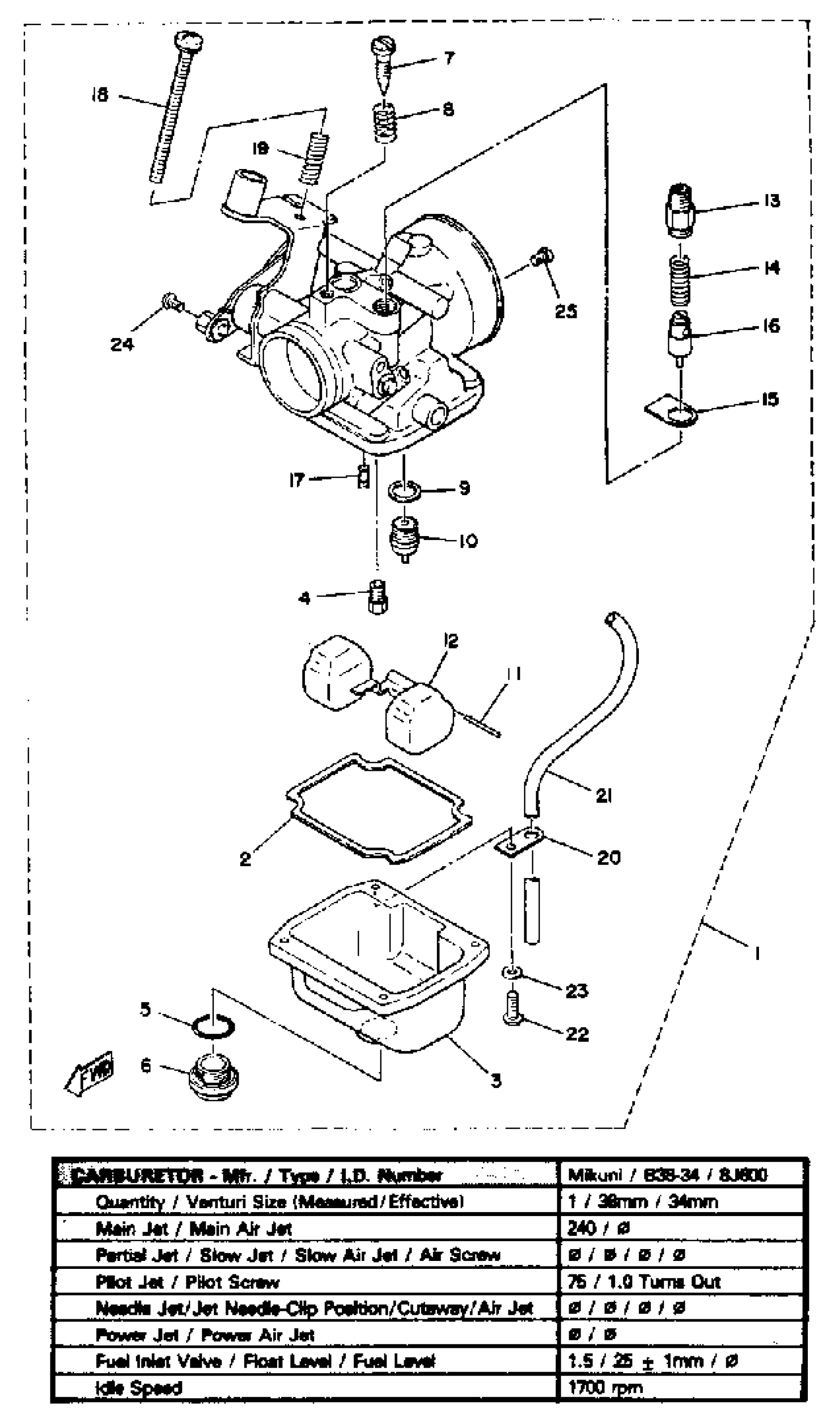

1981 Yamaha EC340E Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASY 1

8J6-14101-01-00

1
Out of stock

2

. GASKET, FLOAT CHMBR

8G8-14184-00-00

1
Out of stock

3

BODY, FLOAT CHMBR 1

(8H5-14181-00-00)

1
Out of stock

4

JET, MAIN #200

137-14143-40-A1

1
Out of stock

4

JET, MAIN #210

137-14143-42-A1

—

$10.62

In stock

4

JET, MAIN #220

137-14143-44-A1

1
Out of stock

4

JET, MAIN #240

137-14143-48-A1

1
Out of stock

5

O-RING (541)

558-14147-00-00

1
Out of stock

6

PLUG, SCREW

500-14115-00-00

1

$25.29

In stock

7

. SCREW, AIR ADJUSTING

8G8-14123-00-00

1
Out of stock

8

. SPRING, AIR ADJUSTING

137-14134-00-00

1
Out of stock

9

WASHER,VALVE SEAT

239-14195-00-00

—

$11.47

In stock

10

VALVE SEAT ASSY

8H5-14190-15-00

1

$59.39

In stock

11

PIN, FLOAT

537-14186-00-00

1
Out of stock

12

. FLOAT

8H5-14185-00-00

1
Out of stock

13

CAP, PLUNGER

8G8-14174-00-00

—

$23.77

In stock

14

SPRING, PLUNGER

127-14135-00-00

—

$6.40

In stock

15

. PLATE, STARTER LVR

8G8-14178-00-00

1
Out of stock

16

PLUNGER, STARTER

8G8-14171-00-00

—

$26.92

In stock

17

. JET, PILOT (#75)

193-14142-75-00

1
Out of stock

18

SCREW, PAN HEAD

98580-05550-00

1

$3.03

In stock

19

SPRING, AIR ADJUSTING

(849-14134-00-00)

1
Out of stock

20

. PLATE

313-14146-00-00

1
Out of stock

21

HOSE

89A-14987-00-00

—

$12.62

In stock

22

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

23

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

24

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

25

JET, AIR (#1.0)

239-14172-10-00

—

$9.08

In stock
