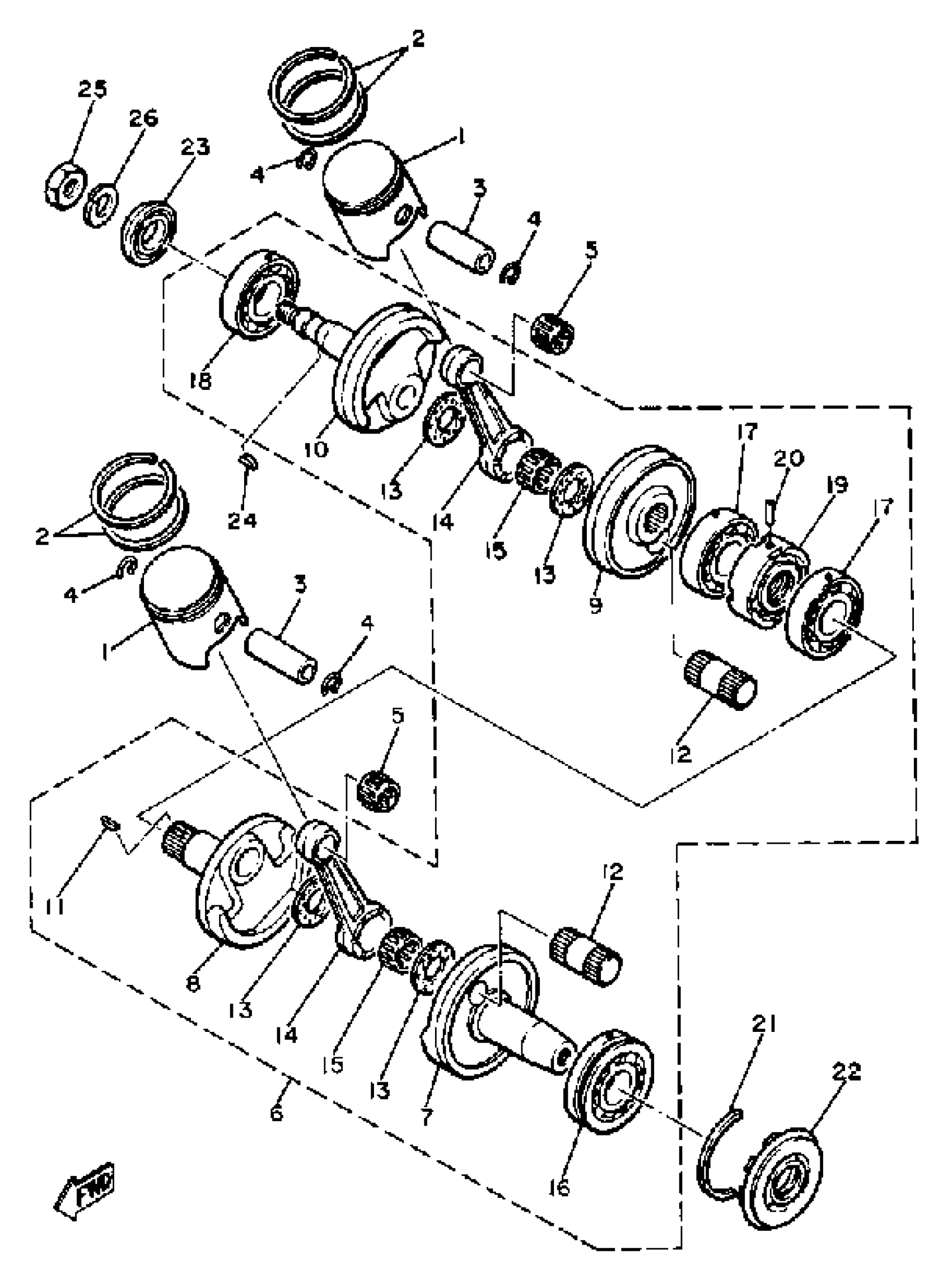

1981 Yamaha EC340E Crankshaft-Piston Diagram

← All diagrams

Find the part on the Crankshaft-Piston diagram for your 1981 Yamaha EC340E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha EC340E Crankshaft-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON (STD)

8G8-11631-01-96

—

$63.09

In stock

1

PISTON O/S 0.25

8G8-11635-01-00

1
Out of stock

1

PISTON 2 O/S 0.50

8G8-11636-01-00

1
Out of stock

1

PISTON 3 O/S 0.75

8G8-11637-00-00

1
Out of stock

1

PSTN,4 O/S 1.00

8G8-11638-01-00

1
Out of stock

2

PISTON RING SET (STD)

8G8-11601-00-00

1
Out of stock

2

PISTON RING SET (0.25MM O/S)

8G8-11601-10-00

1
Out of stock

2

PISTON RING SET (0.50MM O/S)

8G8-11601-20-00

1
Out of stock

2

PISTON RINGSET 3RD

8G8-11601-30-00

1
Out of stock

2

PISTON RINGSET 4TH

8G8-11601-40-00

1
Out of stock

3

PIN, PISTON

137-11633-10-00

1

$21.92

In stock

4

CIRCLIP (137-11634-00)

93450-17025-00

1

$6.17

In stock

5

1

$23.03

In stock

6

CRANKSHAFT ASSEMBLY

8L3-11400-00-00

1
Out of stock

7

. CRANK 1

8G8-11412-01-00

1
Out of stock

8

. CRANK 2

8L3-11422-01-00

1
Out of stock

9

. CRANK 3

8L3-11432-01-00

1
Out of stock

10

. CRANK 4

8G8-11442-01-00

1
Out of stock

11

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock

12

PIN, CRANK

8G8-11681-00-00

—

$24.98

In stock

13

WASHER (29L)

90209-22248-00

—
Out of stock

14

ROD, CONNECTING

34X-11651-00-00

—

$77.82

In stock

15

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

—

$42.77

In stock

16

. BEARING (B6306)

93306-30618-00

1
Out of stock

17

BEARING (8G8)

93306-20617-00

—

$69.94

In stock

18

BEARING

93306-30571-00

—
Out of stock

19

. SEAL, LABYRINTH 1

8L3-11515-01-00

1
Out of stock

20

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

21

CIRCLIP (1J7)

93440-72049-00

—
Out of stock

22

OIL SEAL, SD-TYPE

93102-30184-00

1
Out of stock

23

OIL SEAL (8G8)

93102-25183-00

—

$11.94

In stock

24

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

25

NUT

90170-16425-00

—
Out of stock

26

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
