1981 Yamaha EC340E AIR Shroud - FAN Diagram

← All diagrams

Find the part on the AIR Shroud - FAN diagram for your 1981 Yamaha EC340E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

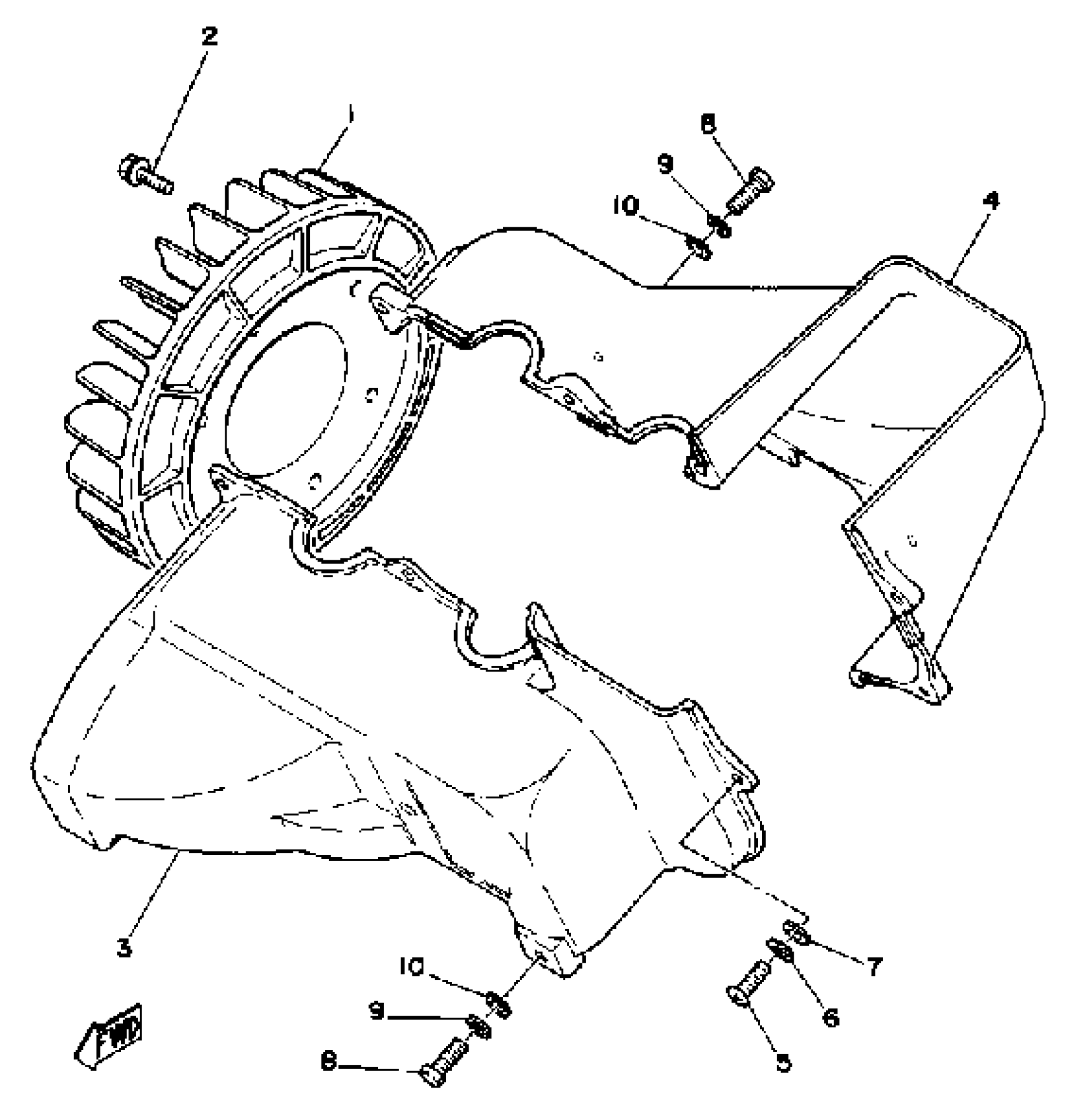

1981 Yamaha EC340E AIR Shroud - FAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FAN

8G8-12611-01-00

—

$81.95

In stock

2

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

3

AIR SHROUD, CYLINDER 1

8G8-12651-00-00

1
Out of stock

4

AIR SHROUD, CYLINDER 2

8G8-12652-00-00

1
Out of stock

5

SCREW, PAN HEAD(3TJ)

98507-06016-00

1

$2.43

In stock

6

WASHER, SPRING

92907-06100-00

1
Out of stock

7

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock
