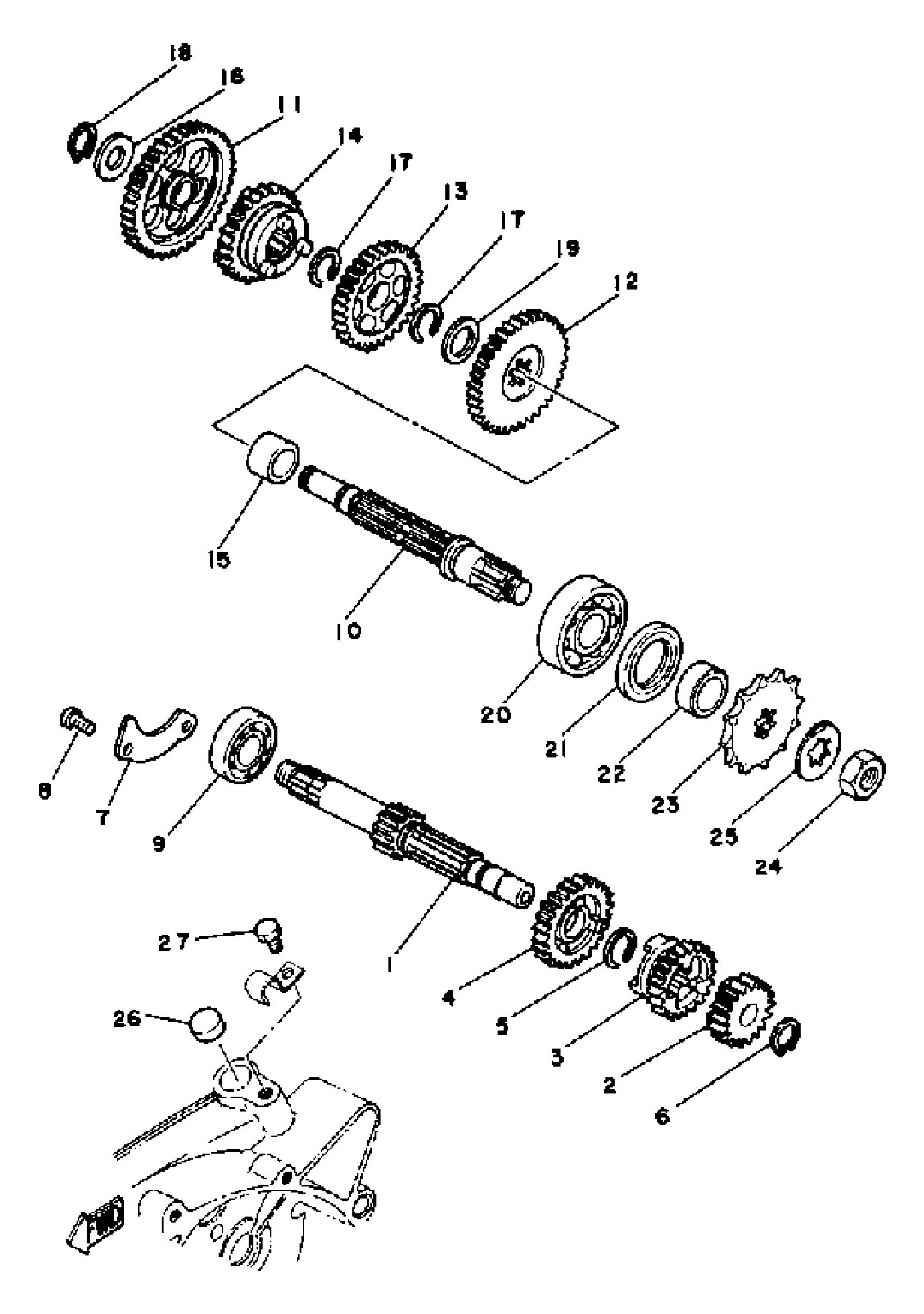

Yamaha DT80H (DT80H) 1981 TRANSMISSION DT80H - J - K Diagram

#

Description
Price

1

AXLE, MAIN

353-17411-10-00

Unavailable

2

. GEAR, 2ND PINION

353-17121-11-00

Unavailable

3

. GEAR, 3RD PINION

353-17131-10-00

Unavailable

4

. GEAR, 4TH PINION

353-17141-12-00

Unavailable

5

CIRCLIP (4V0)

93440-16089-00

$7.49

6

CIRCLIP(13M)

99009-13400-00

$9.49

7

PLATE, COVER

353-17471-00-00

Unavailable

8

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

9

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

10

AXLE, DRIVE

598-17421-00-00

Unavailable

11

GEAR, 1ST WHEEL

353-17211-01-00

Unavailable

12

GEAR, 2ND WHEEL

353-17221-00-00

Unavailable

13

GEAR, 3RD WHEEL

353-17231-00-00

Unavailable

14

GEAR, 4TH WHEEL

353-17241-00-00

Unavailable

15

COLLAR

90387-16126-00

Unavailable

16

SHIM

257-17219-00-00

Unavailable

17

CIRCLIP (4V0)

93440-16089-00

$7.49

18

CIRCLIP(13M)

99009-13400-00

$9.49

19

SHIM, (1.0T)

52G-17968-00-10

Unavailable

20

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

21

OIL SEAL (25X40X5-101)

93102-25017-00

Unavailable

22

COLLAR

90387-17137-00

Unavailable

23

SPROCKET,DRIVE 14T(2571746141)

93811-14033-00

Unavailable

24

NUT LOCK (RD50)

90179-12181-00

Unavailable

25

WASHER LOCK 283174640000

90215-13026-00

Unavailable

26

PLUG(12Y)

90338-16029-00

Unavailable

27

BOLT(3JP)

97017-06010-00

Unavailable
