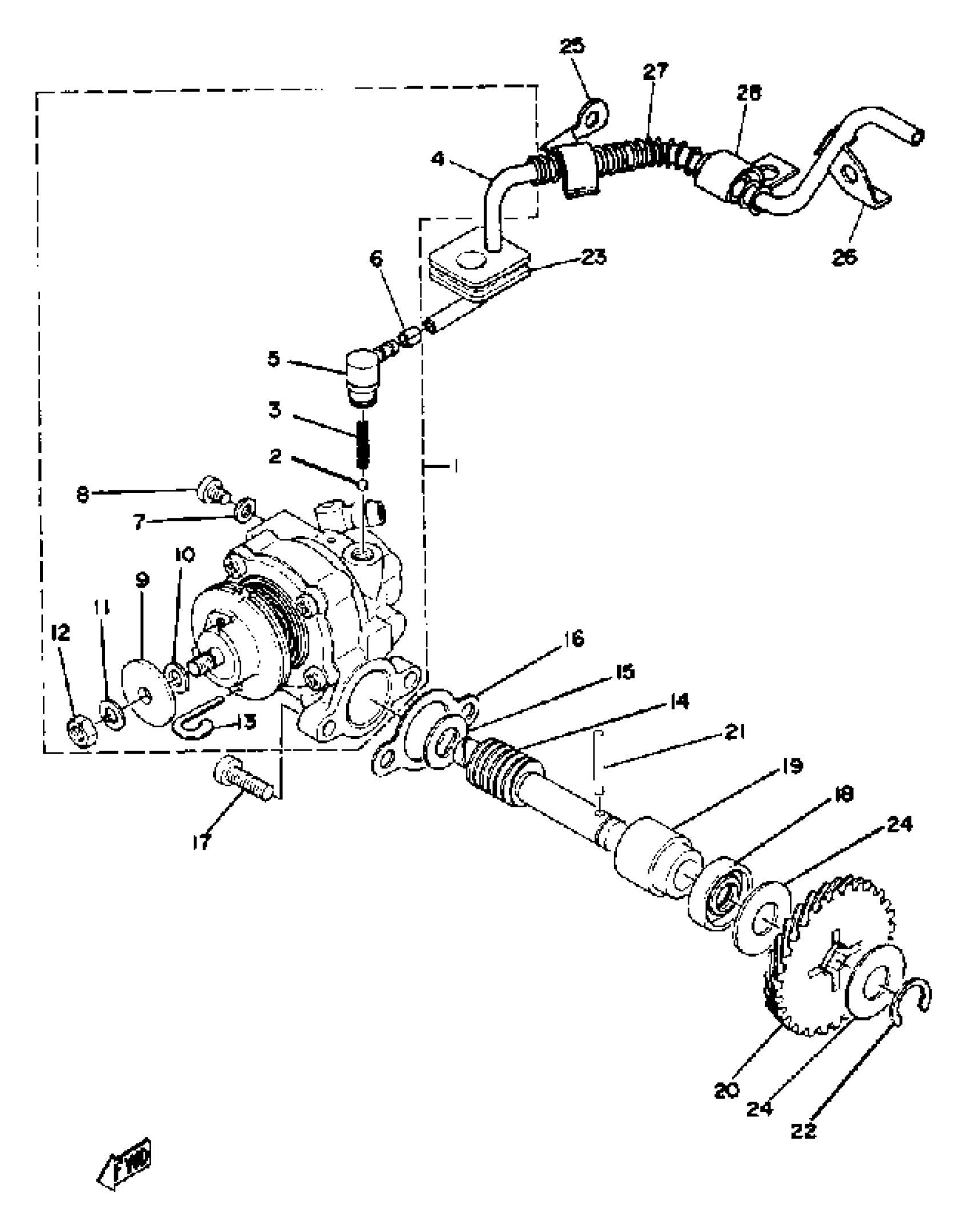

Yamaha DT80H (DT80H) 1981 OIL PUMP DT80H - J - K Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

(1K8-13101-01-00)

Unavailable

2

BALL

93505-32002-00

$2.92

3

SPRING, CHECK BALL (451)

90501-02217-00

$7.49

4

HOSE (L200)

90445-05N13-00

$8.49

5

NOZZLE

353-13552-01-00

$9.99

6

CLIP (214-13164-00)

90468-02033-00

$8.49

7

GASKET 137131870000

90430-04004-00

$9.49

8

SCREW, BIND

98980-04008-00

Unavailable

9

PLATE, ADJUSTING

137-13138-01-00

Unavailable

10

SHIM,PLUNGER

137-13137-00-03

$5.49

10

SHIM,PLUNGER

137-13137-00-05

$6.99

10

SHIM,PLUNGER

137-13137-00-10

$7.99

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

NUT, HEXAGON (663)

95380-05600-00

$8.49

13

COVER, ADJUST PULLEY

367-13146-01-00

$6.99

14

SHAFT, WORM

257-13175-00-00

Unavailable

15

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

16

GASKET, PUMP CASE

126-13116-01-00

Unavailable

17

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

18

OIL SEAL (J10)

93101-10090-00

Unavailable

19

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

20

GEAR, PUMP DRIVE

353-13178-00-00

Unavailable

21

PIN,DOWEL (137)

93603-22028-00

Unavailable

22

CIRCLIP(2R6)

99001-08600-00

Unavailable

23

HOLDER, OIL PIPE

248-13174-00-00

Unavailable

24

WASHER, PLATE(52H)

90201-105J4-00

Unavailable

25

HOLDER, OIL PIPE

367-13174-00-00

Unavailable

26

HOLDER

(367-15378-00-00)

Unavailable

27

SPRING, COMPRESSION

90501-06025-00

Unavailable

28

CLAMP 363154850100

90462-05005-00

Unavailable
