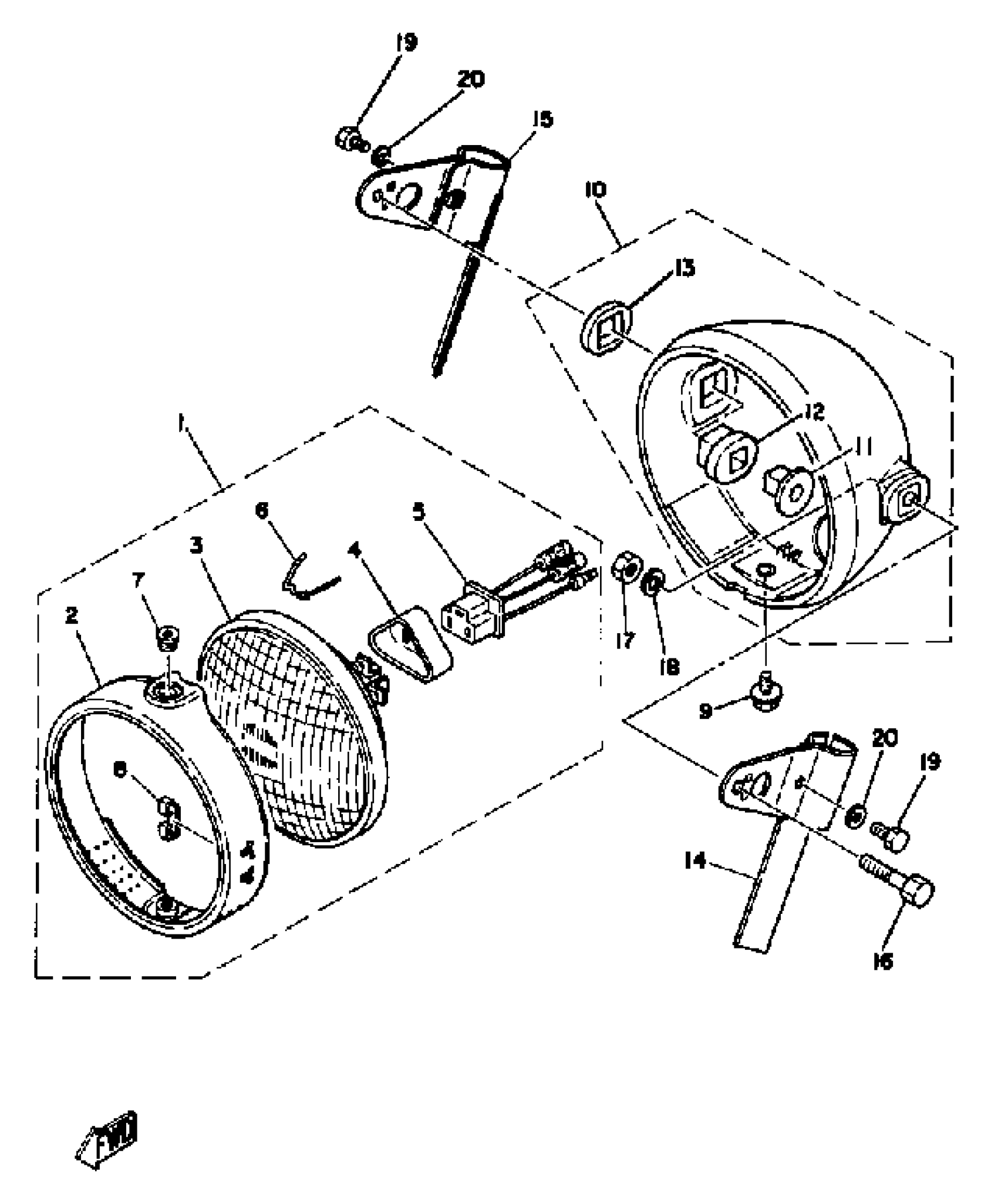

Yamaha DT80H (DT80H) 1981 HEADLIGHT DT80H - J - K Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

(1M1-84110-61-00)

Unavailable

2

RING, RETAINING

3J0-84195-60-00

Unavailable

3

. LENS ASSEMBLY

498-84120-61-00

Unavailable

4

. COVER, SOCKET

341-84397-61-00

Unavailable

5

SOCKET

371-84312-60-00

Unavailable

6

SPRING, REFLECTOR SET

1M1-84124-60-00

$8.99

7

COLLAR

1M1-84133-60-00

Unavailable

8

. SPACER

498-84128-60-00

Unavailable

9

BOLT, HEXAGON

1M1-84137-60-00

$6.99

10

BODY ASSEMBLY, HEADLIGHT (1M1-84130-60-98)

1M1-84130-60-00

Unavailable

11

COLLAR, BODY FITTING

498-84145-60-00

$6.99

12

DAMPER, HEAD LAMP A

498-84163-60-00

$7.99

13

DAMPER

1M1-84164-60-00

$25.99

14

STAY, HEADLIGHT 1

2F4-84118-00-00

Unavailable

15

STAY, HEADLIGHT 2

2F4-84119-00-00

Unavailable

16

BOLT

97013-08035-00

Unavailable

17

NUT(6L2)

95333-08600-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

BOLT (661)

97013-06012-00

Unavailable

20

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable
