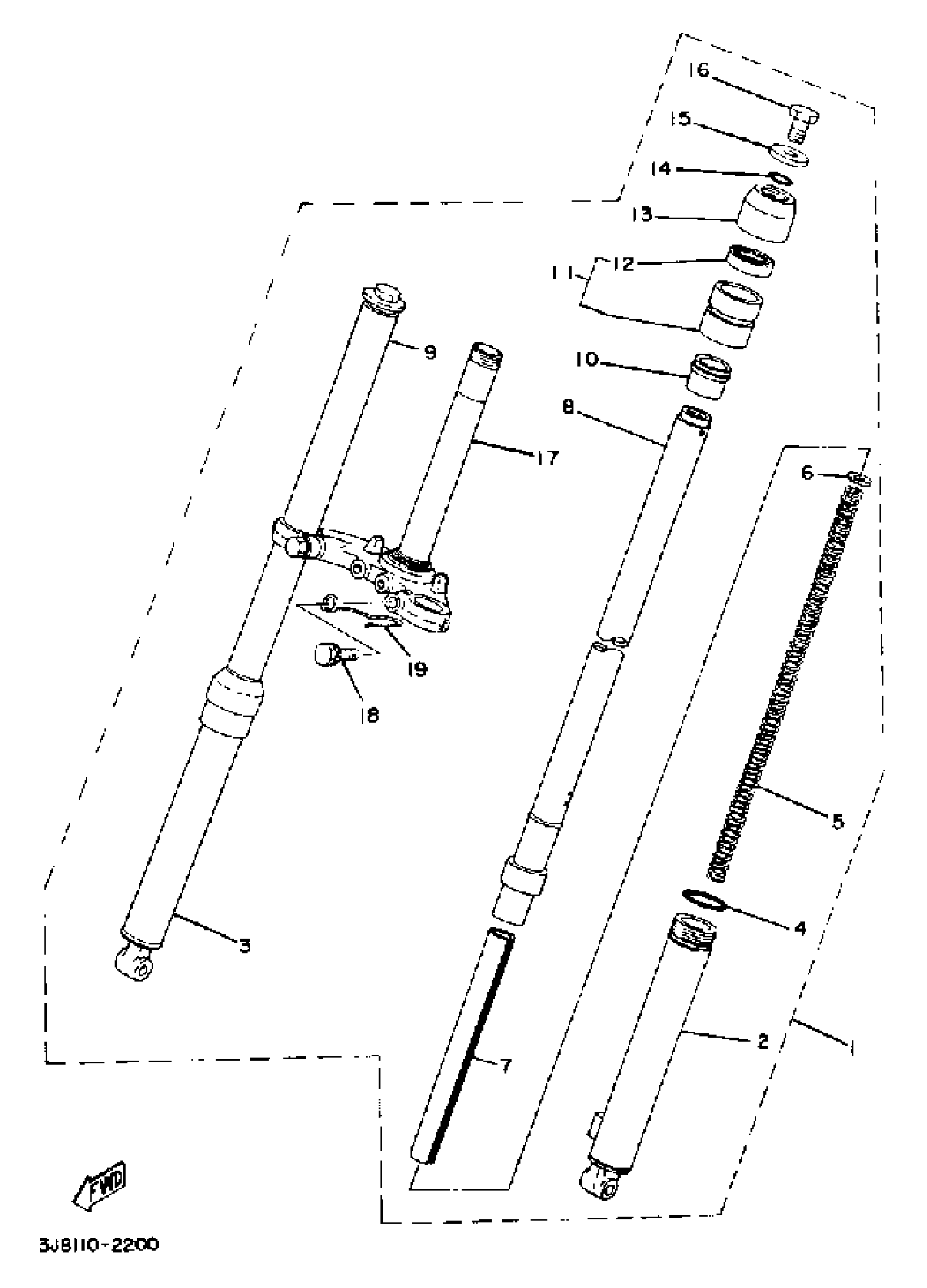

Yamaha DT80H (DT80H) 1981 FRONT FORK DT80H - J - K Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(2F4-23101-60-35)

Unavailable

2

TUBE, OUTER 1

(374-23126-00-35)

Unavailable

3

TUBE, OUTER 2

(2F4-23136-60-35)

Unavailable

4

O-RING

207-23147-00-00

$11.99

5

SPRING, FRONT FORK

(367-23141-61-00)

Unavailable

6

WASHER, SPRING UPR

(290-23149-00-00)

Unavailable

7

SPACER, OIL LOCK

(367-23166-61-00)

Unavailable

8

. TUBE, INNER 1

439-23124-00-00

Unavailable

9

TUBE, INNER 2

(367-23134-61-00)

Unavailable

10

. METAL, SLIDE 1

109-23125-00-00

Unavailable

11

. OUTER NUT

290-23150-01-00

Unavailable

12

OIL SEAL

109-23145-01-00

$31.99

13

SEAL, DUST

290-23144-00-00

$23.99

14

GASKET

307-23114-00-00

$9.99

15

WASHER, CAP

207-23112-00-00

Unavailable

16

. BOLT, CAP

395-23111-00-00

Unavailable

17

. UNDER BRACKET

367-23340-60-33

Unavailable

18

BOLT 1

122-23346-02-00

Unavailable

19

HOLDER, CABLE 2

(2A3-23319-00-00)

Unavailable
