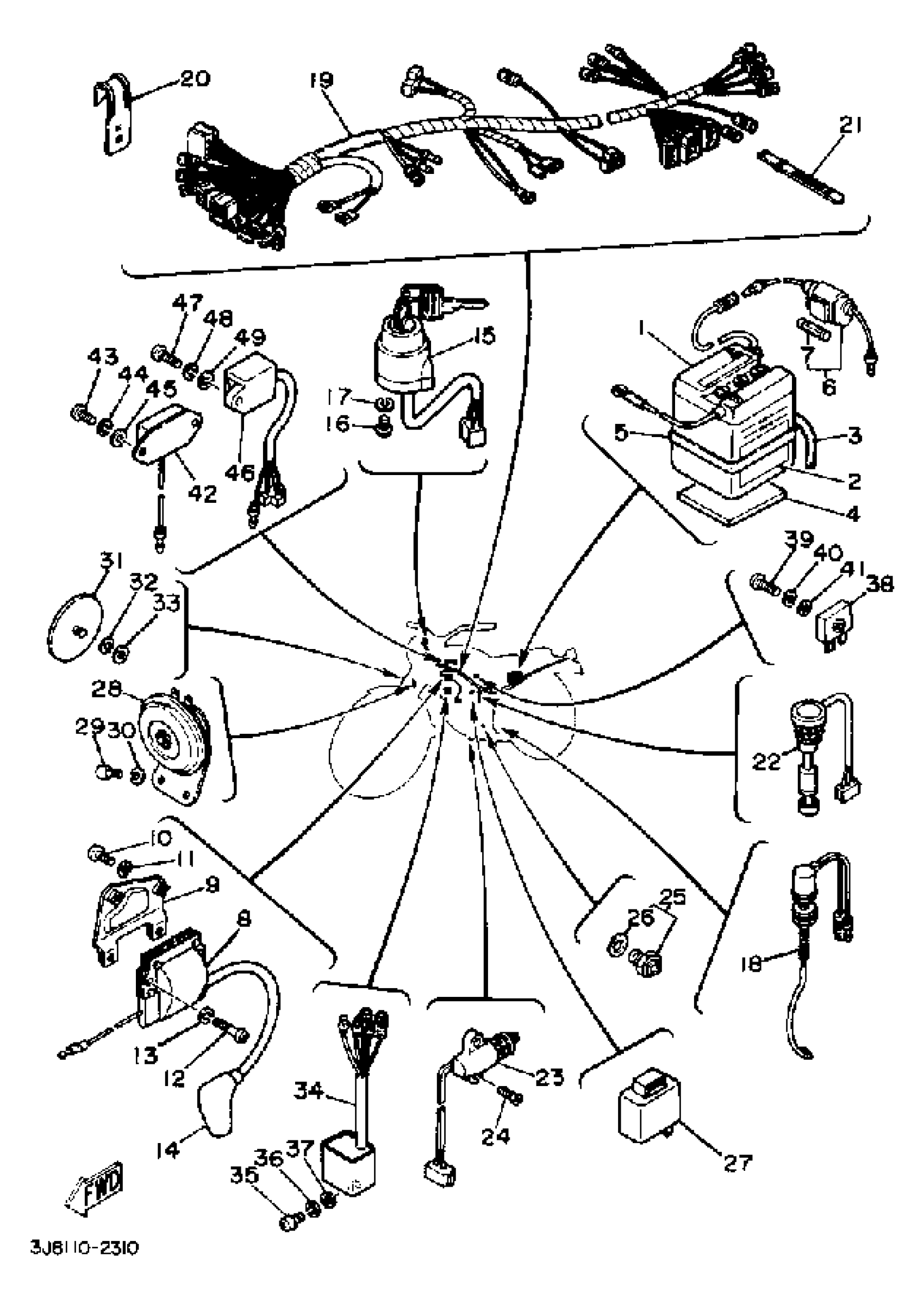

Yamaha DT80H (DT80H) 1981 ELECTRICAL 1 DT80J - K Diagram

#

Description
Price

1

6N4-2A-2 GS BATTERY

6N4-2A200-00-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

HOSE

90445-08172-00

Unavailable

4

DAMPER, TANK LOCATING

583-24182-00-00

$9.99

5

BAND, BATTERY

(308-82124-00-00)

Unavailable

6

FUSE HOLDER ASSY

55K-82150-02-00

$14.49

7

FUSE

1A0-82151-00-00

$16.49

8

IGNITION COIL ASSY

355-82310-40-00

Unavailable

9

BRACKET, IGN COIL

375-82316-01-00

Unavailable

10

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

11

WASHER, SPRING

92995-06100-00

Unavailable

12

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

13

WASHER, SPRING

92995-06100-00

Unavailable

14

PLUG CAP ASSY

56J-82370-00-00

$64.99

15

MAIN SWITCH ASSY

53C-82510-01-00

$62.99

16

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

STOP SWITCH ASSEMBLY

353-82530-03-00

Unavailable

19

WIRE HARNESS ASSEMBLY

(3J8-82590-51-00)

Unavailable

20

CLAMP

(2A3-82594-00-00)

Unavailable

21

BAND, SWITCH CORD

437-83936-11-00

Unavailable

22

OIL LVL GAUGE ASSEMBLY

2E7-85720-02-00

Unavailable

23

SWITCH, SIDE STAND

3J8-82566-01-00

Unavailable

24

SCREW, FLAT

98707-05016-00

Unavailable

25

NEUTRAL SWITCH ASSY

4GY-82540-10-00

Unavailable

26

GASKET

296-82543-00-00

Unavailable

27

FLASHER RELAY ASSEMBLY

2F7-83350-60-00

Unavailable

28

HORN

2A7-83371-10-00

Unavailable

29

BOLT (661)

97013-06012-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

32

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

33

. WASHER, PLAIN

92990-05200-00

Unavailable

34

CDI UNIT ASSEMBLY

3A3-85540-20-00

Unavailable

35

SCREW, PAN

98507-06014-00

Unavailable

36

WASHER, SPRING

92995-06100-00

Unavailable

37

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

38

RECTIFIER ASSY

353-81970-M2-00

Unavailable

39

SCREW, PAN HEAD

98580-05020-00

Unavailable

40

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

41

WASHER, PLAIN (646)

92990-05600-00

Unavailable

42

VOLTAGE REG ASY

443-81910-62-00

Unavailable

43

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

44

WASHER, SPRING

92995-06100-00

Unavailable

45

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

46

CONTROL UNIT ASSEMBLY

3Y1-85590-M0-00

Unavailable

46

CONTROL UNIT ASSEMBLY

4Y3-85590-M0-00

Unavailable

47

SCREW PAN HEAD

98580-06020-00

Unavailable

48

WASHER, SPRING

92995-06100-00

Unavailable

49

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable
