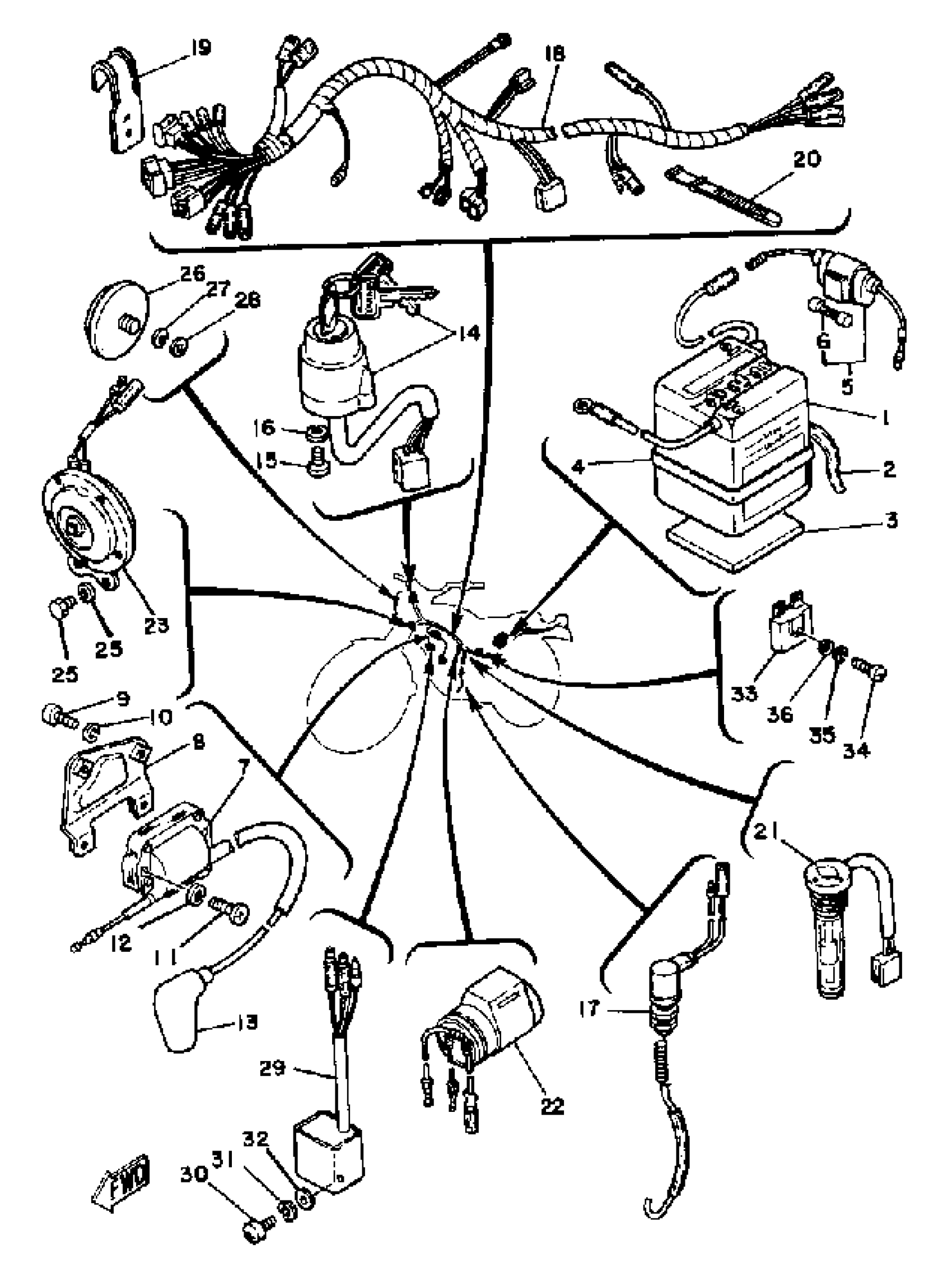

Yamaha DT80H (DT80H) 1981 ELECTRICAL -1 DT80H Diagram

#

Description
Price

1

6N4-2A-2 GS BATTERY

6N4-2A200-00-00

Unavailable

2

HOSE

90445-08172-00

Unavailable

3

DAMPER, TANK LOCATING

583-24182-00-00

$9.99

4

BAND, BATTERY

(308-82124-00-00)

Unavailable

5

FUSE HOLDER ASSY

55K-82150-02-00

$14.49

6

FUSE

1A0-82151-00-00

$16.49

7

IGNITION COIL ASSY

355-82310-40-00

Unavailable

8

BRACKET, IGN COIL

375-82316-01-00

Unavailable

9

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

12

WASHER, SPRING

92995-06100-00

Unavailable

13

PLUG CAP ASSY

56J-82370-00-00

$64.99

14

MAIN SWITCH ASSY

53C-82510-01-00

$62.99

15

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

STOP SWITCH ASSEMBLY

353-82530-03-00

Unavailable

18

WIRE HARNESS ASSEMBLY

(3J8-82590-50-00)

Unavailable

19

CLAMP

(2A3-82594-00-00)

Unavailable

20

BAND, SWITCH CORD

437-83936-11-00

Unavailable

21

UNAVAILABLE IN PRICE BOOK

2E7-84720-02-00

Unavailable

22

FLASHER RELAY ASSEMBLY

2F7-83350-60-00

Unavailable

23

HORN

2A7-83371-10-00

Unavailable

24

BOLT (661)

97013-06012-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

27

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

28

. WASHER, PLAIN

92990-05200-00

Unavailable

29

CDI UNIT ASSEMBLY

3A3-85540-20-00

Unavailable

30

SCREW, PAN

98507-06014-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

WASHER, PLATE

(90201-06600-00)

Unavailable

33

RECTIFIER ASSY

353-81970-M2-00

Unavailable

34

SCREW, PAN HEAD

98580-05020-00

Unavailable

35

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

36

WASHER, PLAIN (646)

92990-05600-00

Unavailable
