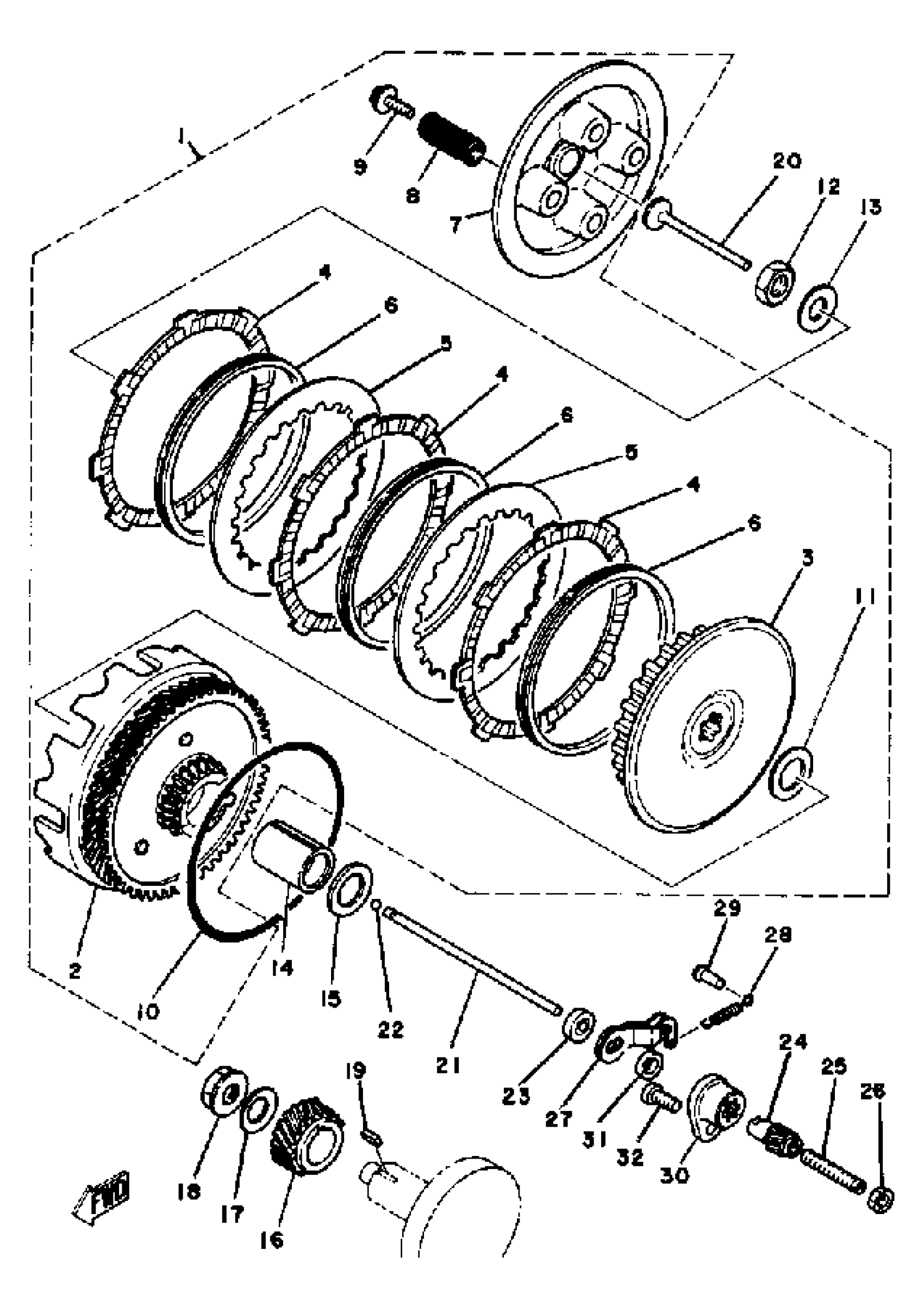

Yamaha DT80H (DT80H) 1981 CLUTCH DT80H - J - K Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(2A3-16301-00-00)

Unavailable

2

. PRIMARY DRIVEN GEAR COMP (68T) (2A3-16150-00)

1T0-16150-01-00

Unavailable

3

. BOSS, CLUTCH

353-16371-00-00

Unavailable

4

PLATE, FRICTION

4EU-16321-00-00

$25.99

5

PLATE, CLUTCH 1

257-16324-10-00

Unavailable

6

RING, CUSHION

131-16367-00-00

Unavailable

7

. PLATE, PRESSURE 1

353-16351-00-00

Unavailable

8

SPRING COMPRESSION132163330000

90501-20125-00

$8.49

9

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

10

O-RING (353)

93210-98202-00

$12.49

11

PLATE, THRUST

122-16164-00-00

$7.99

12

NUT, HEXAGON 1371637700

90170-12060-00

$9.49

13

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

14

SPACER

90560-17123-00

Unavailable

15

PLATE, THRUST

122-16164-00-00

$7.99

16

GEAR, PRI DRIVE

353-16111-01-00

Unavailable

17

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

18

NUT(1EE)

90179-12659-00

Unavailable

19

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable

20

ROD,PUSH (1)

137-16356-00-00

Unavailable

21

ROD, PUSH (2)

353-16357-00-00

Unavailable

22

BALL

93503-16003-00

Unavailable

23

OIL SEAL(1JY)

93102-04382-00

Unavailable

24

SCREW, PUSH

241-16341-01-00

Unavailable

25

BOLT SET 241163430000

90113-06013-00

Unavailable

26

NUT(650)

95380-06700-00

Unavailable

27

LEVER, PUSH

451-16342-00-00

Unavailable

28

SPRING TENSION 257163450000

90506-07066-00

Unavailable

29

HOOK, SPRING

132-16346-00-00

Unavailable

30

HOUSING, PUSH SCREW

353-16396-00-00

Unavailable

31

SEAL 0IL (2V7)

93104-10085-00

Unavailable

32

SCREW, PAN

98507-06014-00

Unavailable
