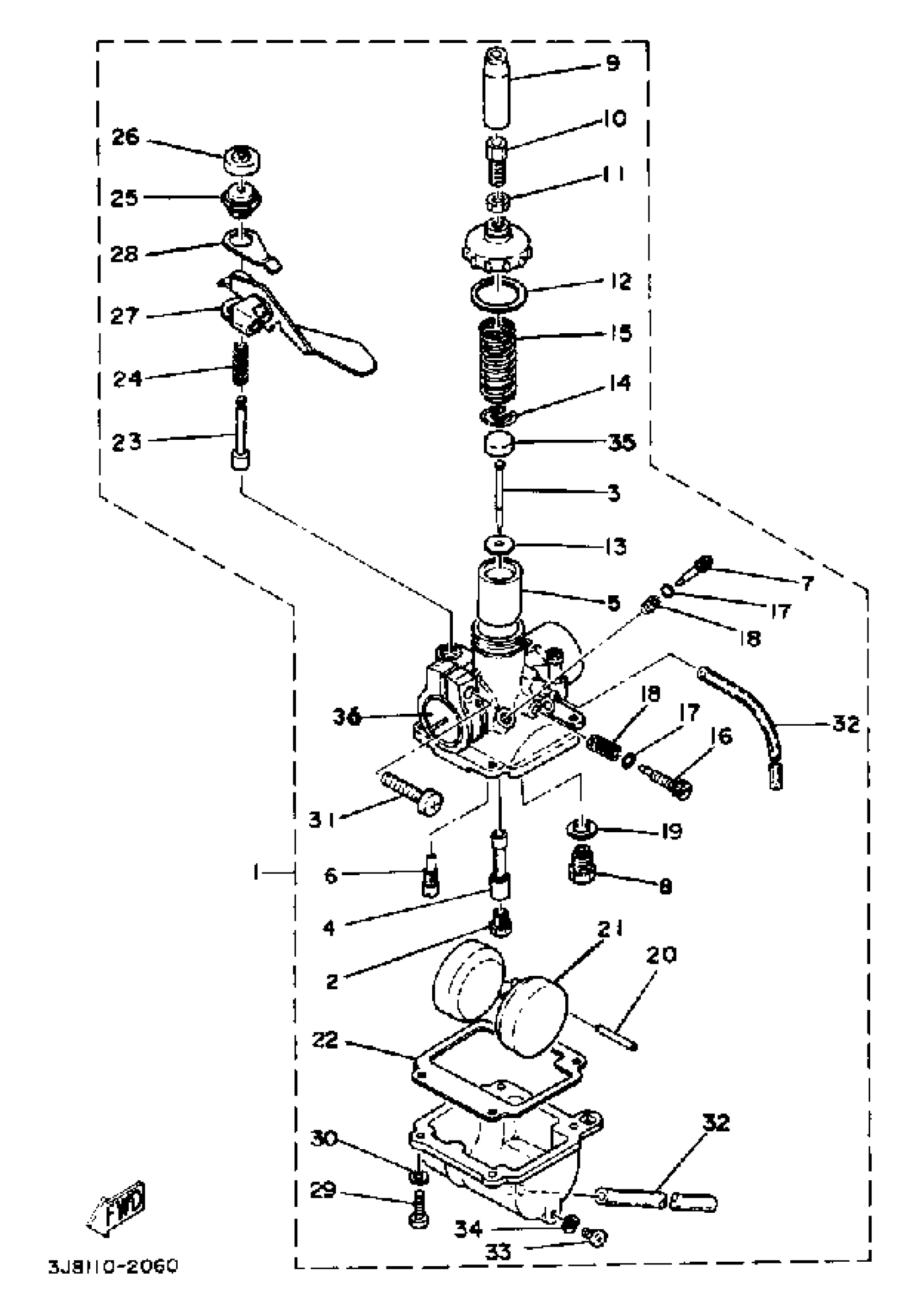

Yamaha DT80H (DT80H) 1981 CARBURETOR DT80K Diagram

#

Description

Price

1

CARBURETOR ASSEMBLY 1

3J8-14301-60-00

Unavailable

2

. JET, MAIN #86

288-14343-43-00

Unavailable

3

NEEDLE

(3J8-14336-00-00)

Unavailable

4

NOZZLE, MAIN

(3J8-14341-00-00)

Unavailable

5

VALVE, THROTTLE 1

(3J8-14312-20-00)

Unavailable

6

JET, PILOT #32

(3J8-14342-16-00)

Unavailable

7

SCREW, AIR ADJUSTING

(3J8-14323-00-00)

Unavailable

8

VALVE SEAT ASSY

367-14390-20-00

Unavailable

9

. CAP

367-14169-00-00

Unavailable

10

. SCREW, CABLE ADJUSTING

288-14124-00-00

Unavailable

11

NUT, CABLE ADJUSTING

85L-14161-00-00

Unavailable

12

. GASKET

367-14126-00-00

Unavailable

13

. SUPPORTER, NEEDLE

3J8-14339-00-00

Unavailable

14

SEAT, SPRING

(3J8-14136-00-00)

Unavailable

15

. SPRING, THRTL VALVE

367-14331-00-00

Unavailable

16

. SCREW, THROTTLE

3J8-14321-00-00

Unavailable

17

. O-RING

1E7-14147-00-00

Unavailable

18

SPRING, AIR ADJUSTING

288-14334-00-00

Unavailable

19

WASHER, VALVE SEAT

367-14195-00-00

Unavailable

20

PIN, FLOAT

367-14386-00-00

Unavailable

21

FLOAT

367-14385-00-00

Unavailable

22

GASKET, FLOAT CHAMBER

4U1-14384-00-00

Unavailable

23

PLUNGER,STARTER

29J-1410A-00-00

Unavailable

24

. SPRING, PLUNGER

367-14335-00-00

Unavailable

25

PLUNGER,STARTER

29J-1410A-00-00

Unavailable

26

COVER, PLUNGER CAP

(367-14373-00-00)

Unavailable

27

. LEVER, STARTER

367-14375-01-00

Unavailable

28

. STOPPER

367-14377-00-00

Unavailable

29

SCREW, PAN HEAD

98511-04012-00

Unavailable

30

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

31

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

32

PIPE, OVER FLOW

367-14396-00-00

Unavailable

33

. SCREW, FLAT HEAD

3J8-14324-00-00

Unavailable

34

. GASKET

6A1-14398-00-00

Unavailable

35

COVER, RECEIVE

(3J8-14372-00-00)

Unavailable

36

GASKET

2A3-14359-00-00

Unavailable
