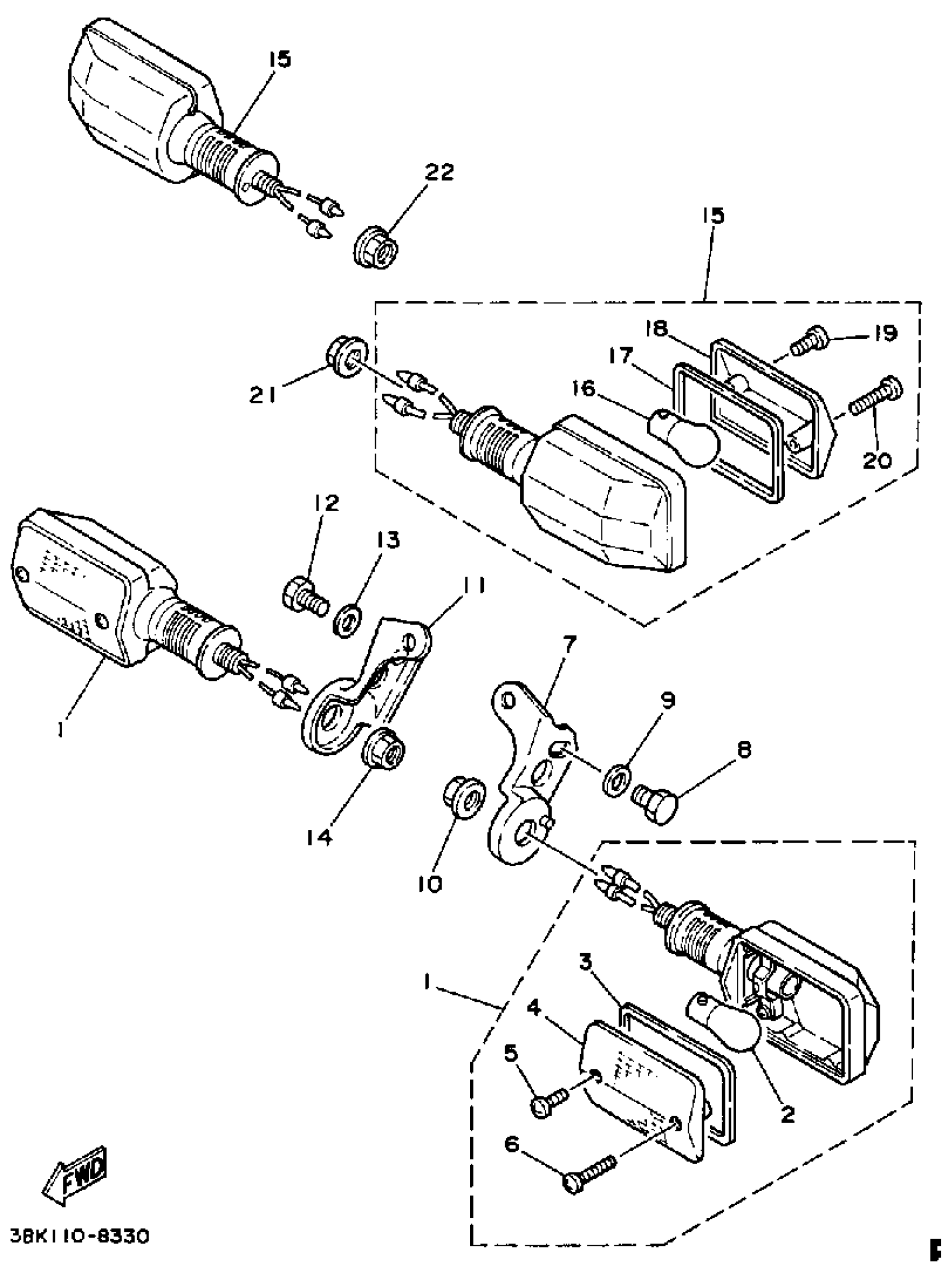

Yamaha DT50U (ENDURO) 1988 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LAMP ASSY

17F-83310-10-00

$71.99

2

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

3

GASKET, FLASHER LENS

5Y1-83313-00-00

Unavailable

4

LENS FLASHER

5Y1-83312-00-00

$13.49

5

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

6

SCREW, TAPPING(3AH)

97707-40630-00

$8.49

7

STAY, FLASHER 1

17W-83368-01-00

Unavailable

8

BOLT, HEXAGON

97017-06012-00

$3.76

9

WASHER(6TA)

92907-06600-00

$2.72

10

NUT(3GG)

90179-12588-00

$7.49

11

STAY, FLASHER

17W-83369-00-00

Unavailable

12

BOLT, HEXAGON

97017-06012-00

$3.76

13

WASHER(6TA)

92907-06600-00

$2.72

14

NUT(3GG)

90179-12588-00

$7.49

15

FRONT FLASHER LAMP ASSY

17F-83310-10-00

$71.99

16

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

17

GASKET, FLASHER LENS

5Y1-83313-00-00

Unavailable

18

LENS FLASHER

5Y1-83312-00-00

$13.49

19

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

20

SCREW, TAPPING(3AH)

97707-40630-00

$8.49

21

NUT(3GG)

90179-12588-00

$7.49

22

NUT(3GG)

90179-12588-00

$7.49
