Description

Price

1

REAR ARM

17W-22110-01-35

Unavailable

2

BUSH

90386-18099-00

Unavailable

3

OIL SEAL (2J5)

93109-18020-00

$13.49

4

BUSHING, REAR ARM INNER

2J5-22124-00-00

$48.99

5

COVER, THRUST 1

401-22128-01-00

$29.99

6

SHIM

401-22127-00-00

$7.99

7

SEAL, GUARD

17W-22151-00-00

Unavailable

8

COLLAR, DISTANCE

(17W-22126-00-00)

Unavailable

9

SHAFT, PIVOT

2N4-22141-00-00

$28.99

10

NUT(3DM)

95304-12600-00

$8.49

11

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

12

CASE, CHAIN

17W-22311-00-00

Unavailable

13

SCREW, WITH WASHER (3T2)

90159-06058-00

$10.49

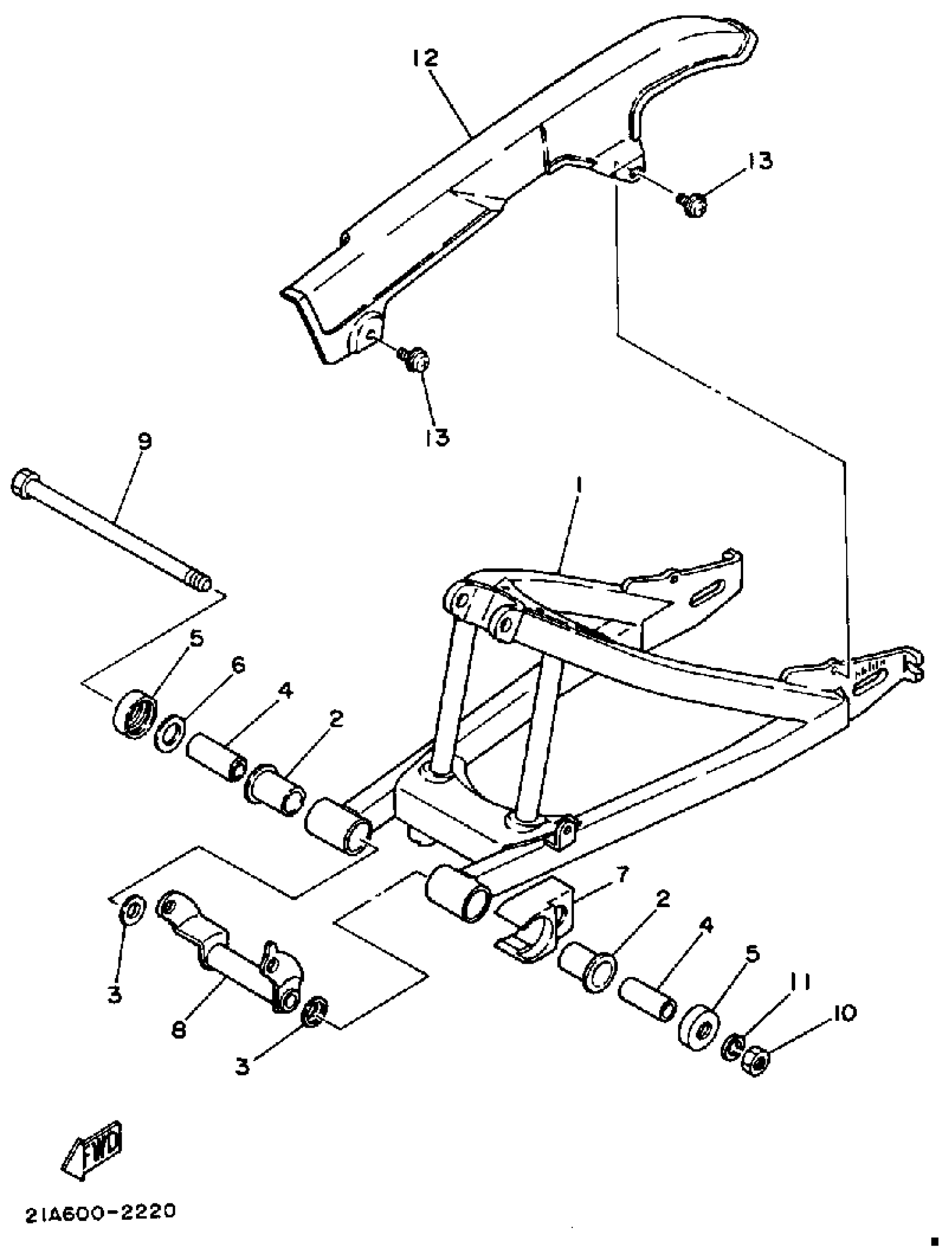

Yamaha DT50U (ENDURO) 1988 SWING ARM Diagram

REAR ARM

BUSH

OIL SEAL (2J5)

BUSHING, REAR ARM INNER

COVER, THRUST 1

SHIM

SEAL, GUARD

COLLAR, DISTANCE

SHAFT, PIVOT

NUT(3DM)

YBS67-12 WASHER,SPRING

CASE, CHAIN

SCREW, WITH WASHER (3T2)
