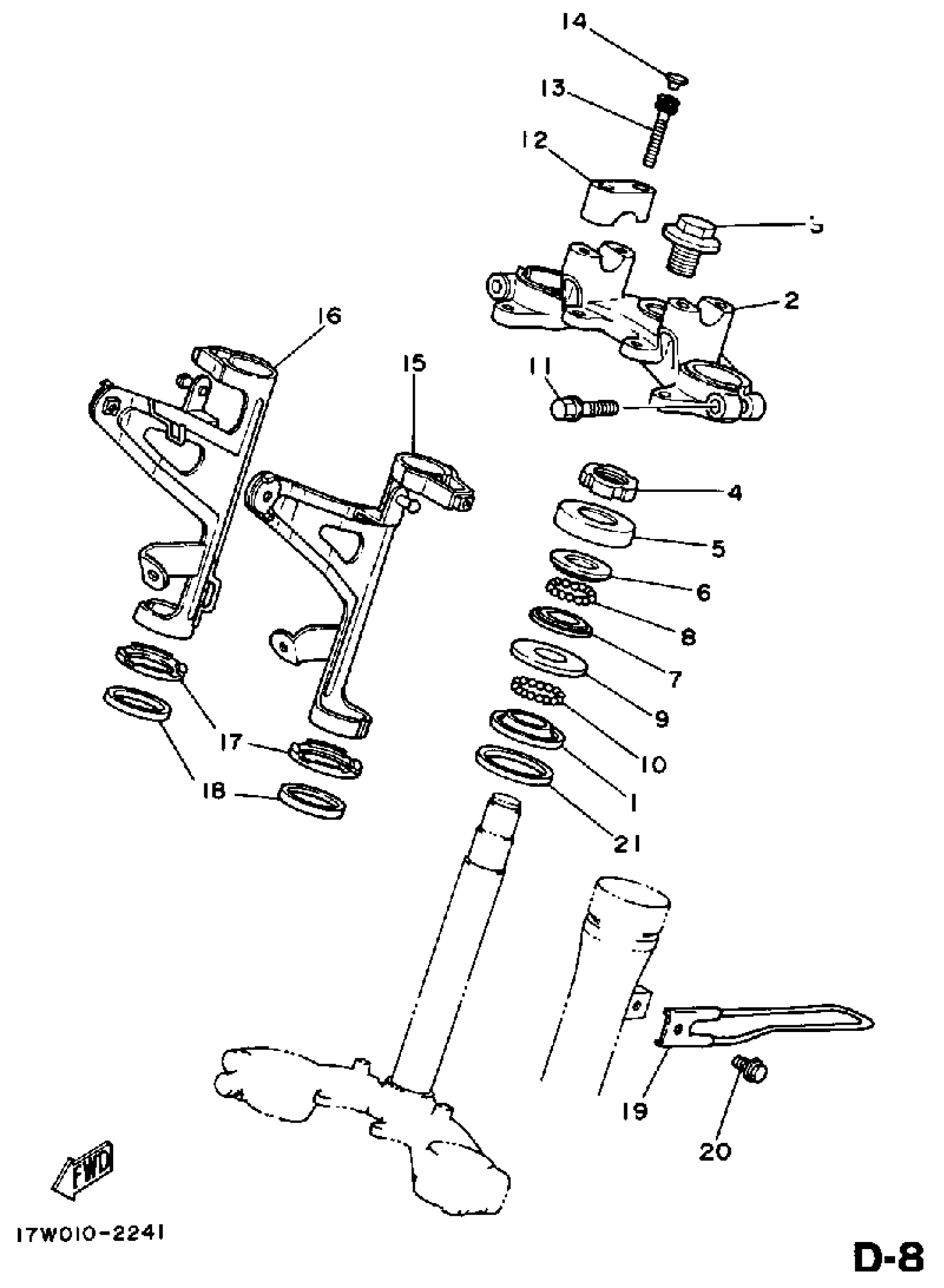

1988 Yamaha Enduro (DT50U) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1988 Yamaha Enduro (DT50U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Enduro (DT50U) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

CROWN, HANDLE

17W-23435-00-98

1
Out of stock

3

BOLT (2A2)

90105-14102-00

1

$5.14

In stock

4

NUT

90179-25004-00

1

$20.78

In stock

5

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

6

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

7

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

8

BALL

93503-16003-00

1

$2.14

In stock

9

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

10

BALL

93501-04011-00

1
Out of stock

11

BOLT, FLANGE

95814-08040-00

1

$3.15

In stock

12

HOLDER, HANDLE UPR

5R2-23441-00-98

1
Out of stock

13

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

14

PLUG

90338-05010-00

1

$6.26

In stock

15

STAY, FLASHER

17W-23327-00-90

1
Out of stock

16

STAY, FLASHER

17W-23328-00-90

1
Out of stock

17

GASKET, UPPER CVR 1

5J0-23137-00-00

1
Out of stock

18

WASHER, SPECIAL 1

5J0-23385-00-00

1
Out of stock

19

HOLDER, CABLE 1

17W-23318-00-00

1
Out of stock

20

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

21

SEAL, DUST

164-23462-00-00

—

$6.42

In stock
