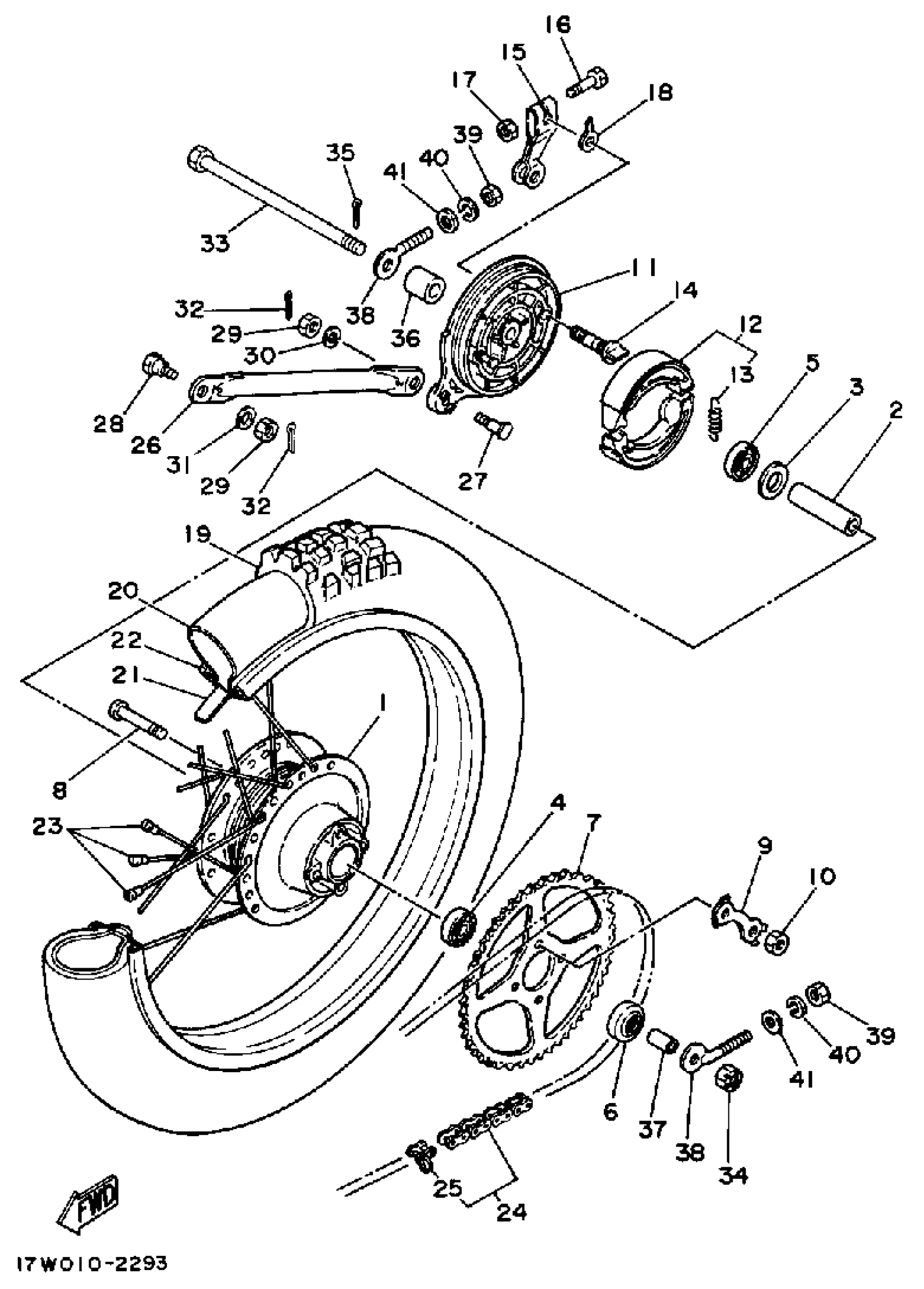

Yamaha DT50U (ENDURO) 1988 REAR WHEEL Diagram

HUB, REAR

17W-25311-00-98

$119.99

SPACER (1U1)

90560-12170-00

$17.99

FLANGE, SPACER

109-25315-00-00

$7.99

BRG.

93306-30101-00

$36.99

BEARING

93306-30102-00

$39.99

OIL SEAL(3TU)

93106-20033-00

$13.49

SPROCKET, DRIVEN (48T)

492-25448-11-00

$33.99

BOLT 109254110000

90109-08319-00

$10.49

WASHER

2AL-25412-00-00

$4.84

NUT, HEXAGON (509)

90170-08158-00

$2.34

PLATE, BRAKE SHOE

31J-25321-00-98

Unavailable

BRAKESHOE SET-2PCS

18A-W2534-00-00

Unavailable

SPRING, TENSION (18A)

90506-18288-00

$8.49

CAMSHAFT

4GL-25351-00-00

$68.99

LEVER, CAM SHAFT

538-25355-00-00

$38.99

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

NUT, HEXAGON

95380-06600-00

Unavailable

PLATE

3Y6-2533A-01-00

Unavailable

IRC 300-17 GP1

94130-172T7-00

Unavailable

TUBE (1E2)

94227-17106-00

Unavailable

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

Unavailable

RIM (1.60-17)

94416-17002-00

Unavailable

SPOKE SET, REAR

17W-25304-00-00

Unavailable

CHAIN, DRIVE

94580-52110-00

Unavailable

JOINT, CHAIN (29A)

94680-52001-00

Unavailable

BAR, TENSION

27L-25371-00-00

Unavailable

BOLT 1022537300

90109-08183-00

Unavailable

BOLT (183-25378-00)

90109-08368-00

Unavailable

. NUT

95380-08700-00

Unavailable

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

PIN, COTTER

91490-20025-00

Unavailable

AXLE, WHEEL

367-25381-01-00

Unavailable

NUT CASTLE(481)

90171-12005-00

Unavailable

PIN, COTTER

91490-30030-00

Unavailable

COLLAR 102253830000

90387-12412-00

Unavailable

COLLAR (40E)

90387-120F9-00

Unavailable

PULLER, CHAIN

3AC-2538G-10-00

Unavailable

NUT, HEXAGON

95380-06600-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

Unavailable
